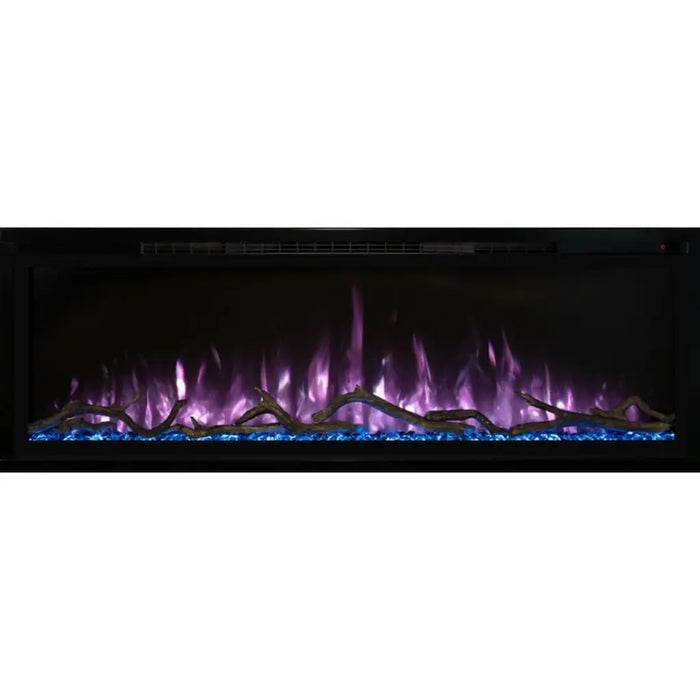

Modern Flames 100" Spectrum Slimline Wall Mount/Recessed Electric Fireplace

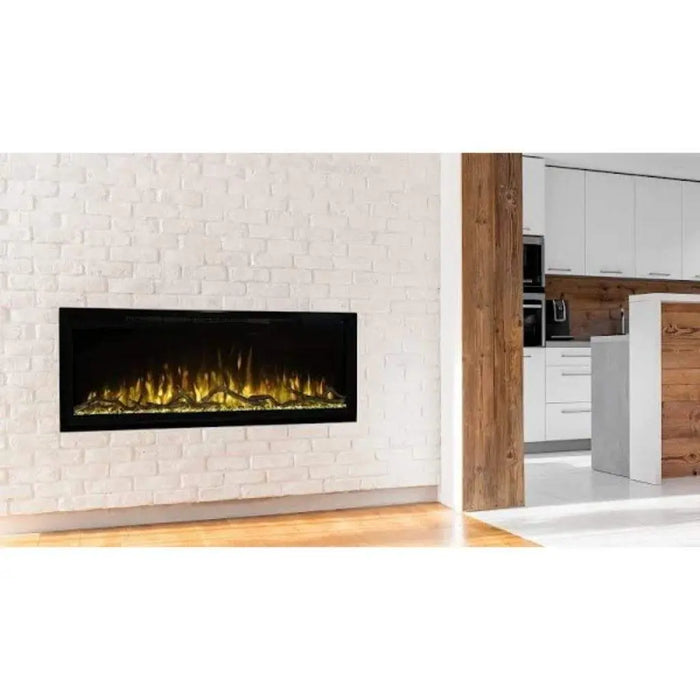

Modern Flames 100" Spectrum Slimline Wall Mount/Recessed Electric Fireplace has revamped the recessed electric fireplace category. This 2” x 4” or wall mount installation electric fireplace has removed the large black glass surround and is finished off with a sleek 5/8” trim to maximize the viewing area. Hardwoods or tile can be finished right up to the opening of the fireplace while still keeping in mind serviceability.

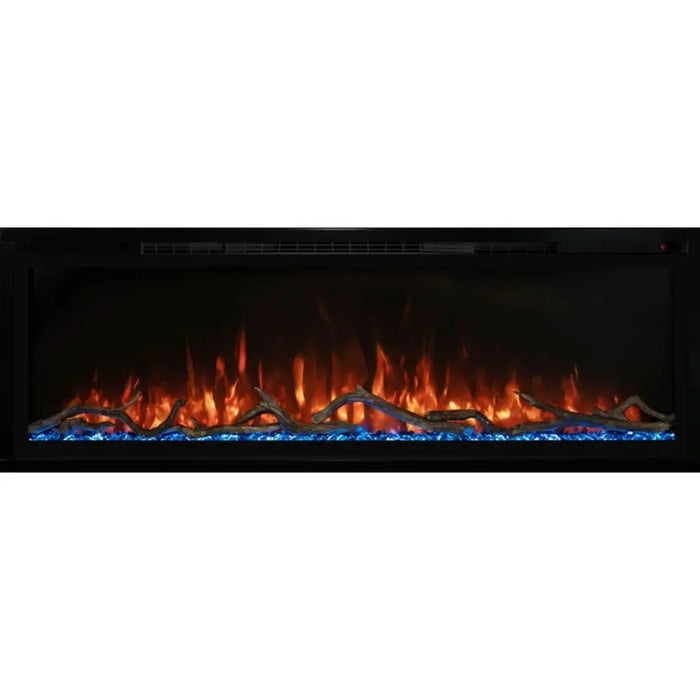

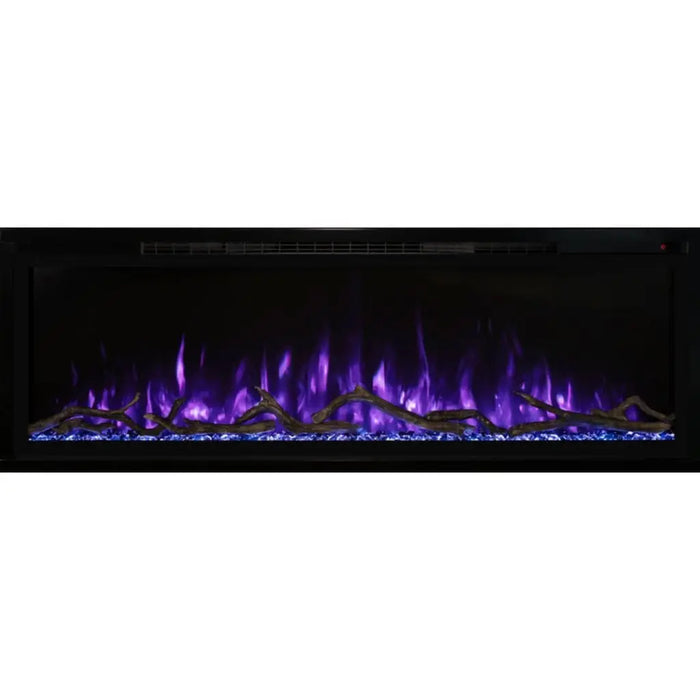

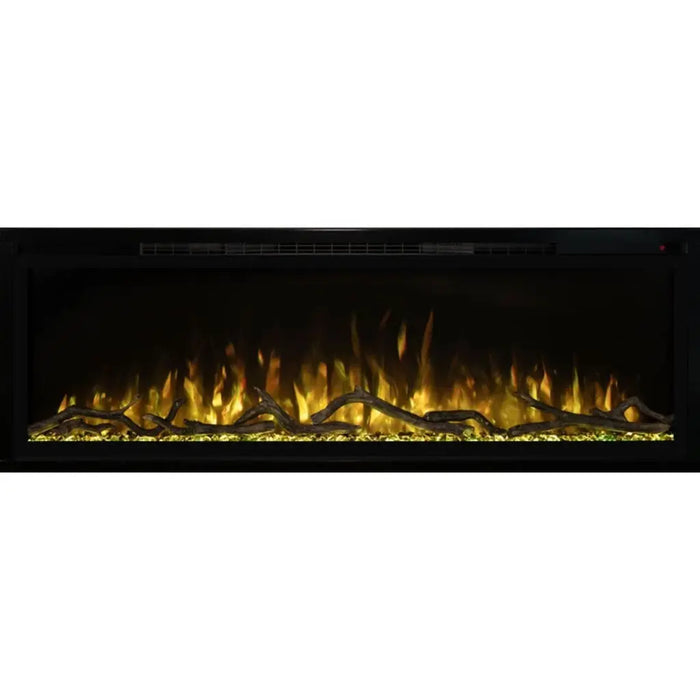

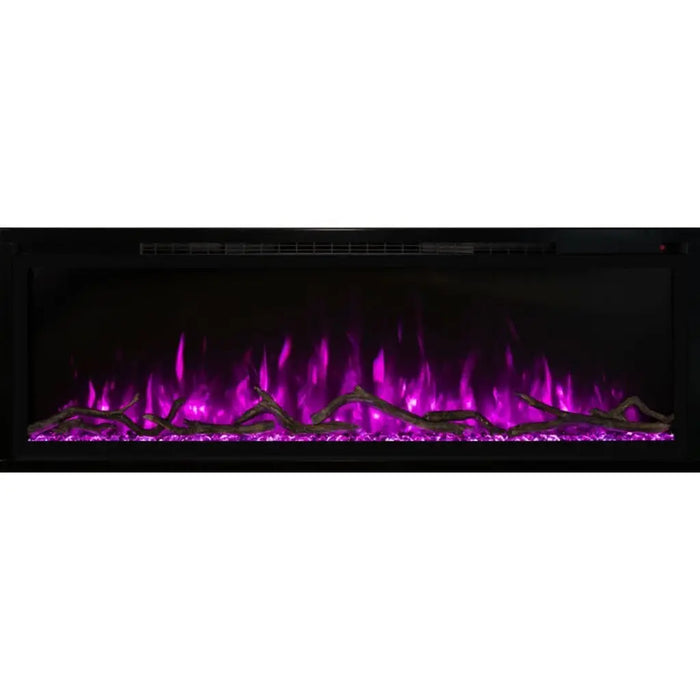

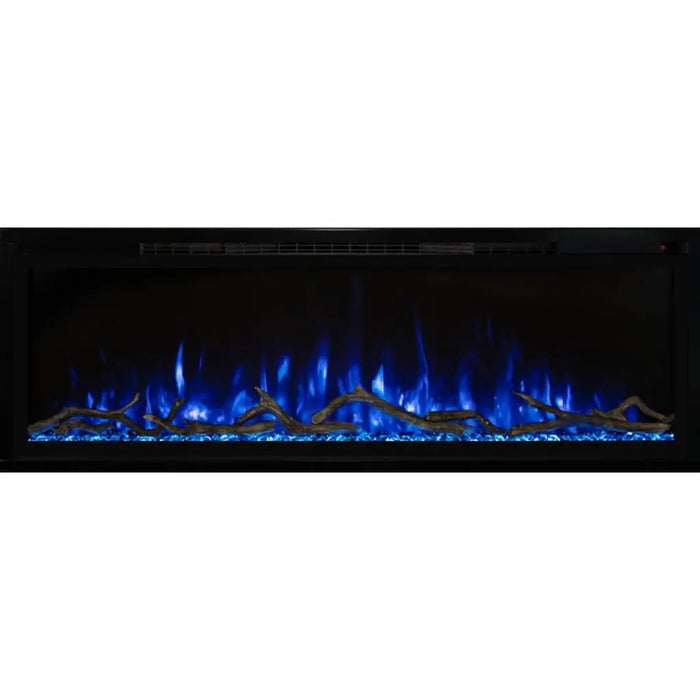

The Modern Flames 100" Spectrum Slimline Wall Mount/Recessed Electric Fireplace features high intensity flame and ember bed lighting showcasing our new Hybrid-FX™ flame technology independently controlled with 10 different color options. Other standard features include variable & thermostatic heat, variable motor controls, timer, push button and remote controls. The acrylic crystal media and driftwood logs are both standard media and the Spectrum Slimline is available in 50”, 60”, 74”, 100” sizes.
Independent Flame & Ember Bed Color Combinations: The 6 button control panel is located at the top right of fireplace including a digital readout thermostat. From right to left, button #1 turns the fireplace on or off. Button #2 controls ember bed lights. #3 controls the flame colors #4 turns the heater on or off. Button #5 controls timer setting to turn off fireplace at selected time, and button #6 adjusts the desired heater temperature.
Package Contents
- Spectrum Slimline Electric Fireplace
- Driftwood Log Set and Clear Acrylic Crystals

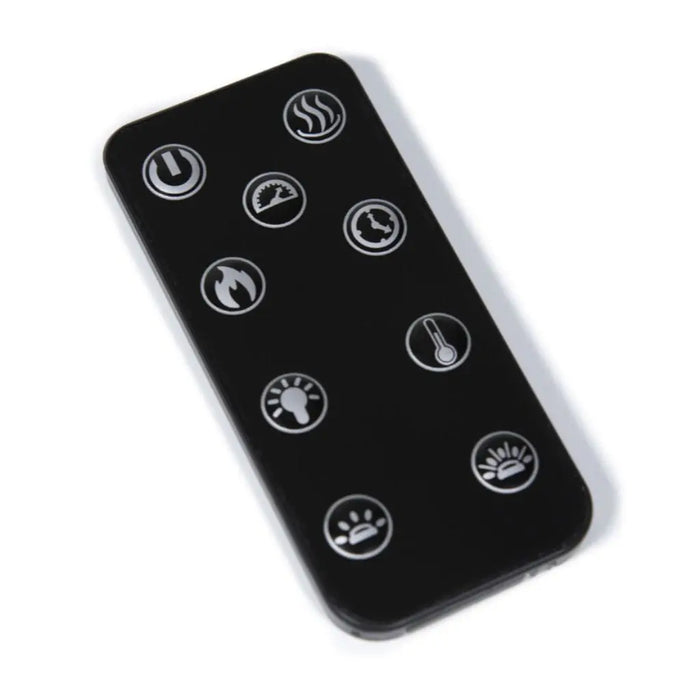

- Remote Control
- Wall Bracket and Side Skirts (for wall mounting)
- Metal Brackets (for recessed installation)
- Instruction Manual
Play video
Key Features
-
Sleek and Versatile: Whether wall-mounted or recessed, its slim design ensures a perfect fit in any interior.
-
Range of Sizes: Catering from medium-sized rooms with the 50" to spacious settings with the 100".
-
Dynamic Flame Technology: Adjustable flame colors and brightness levels for a customizable experience.
-
Efficient Heat Output: Provides a cozy warmth that can be modulated to your comfort.
-
Safety Comes First: The heater and thermostat can be locked from the controls, and the heater fan runs briefly before and after heating to prevent overheating.
-
User-Friendly Controls: Effortlessly manage settings with the intuitive remote control.
INSTALLATION
- Sizes – 50”, 60”, 74”, 100”
- Fits a 4" Deep Recess – 95 7/8" × 12" Viewing
- 2” x 4” Installation or Wall Mount
- Single Sided
LIGHTING
- NEW Hybrid-FX™ Flame Technology
- High Intensity RGB Flame
- High Intensity RGB Ember Bed

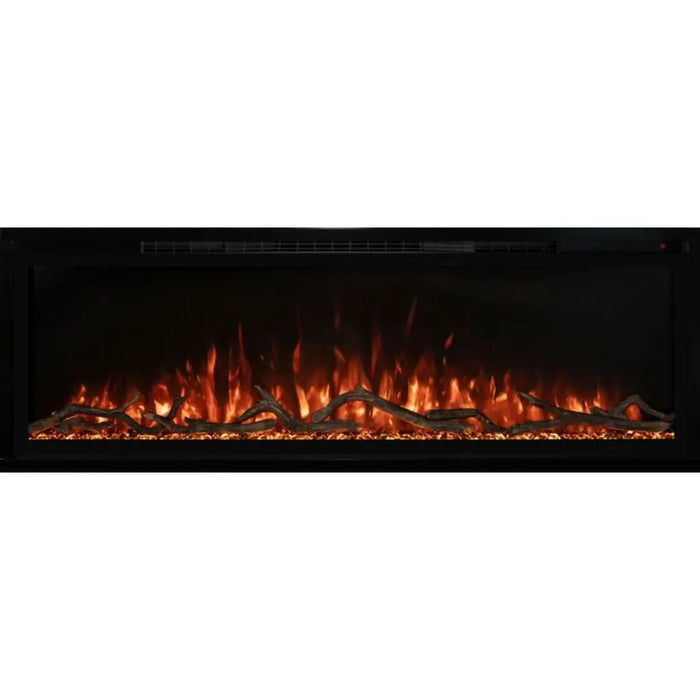

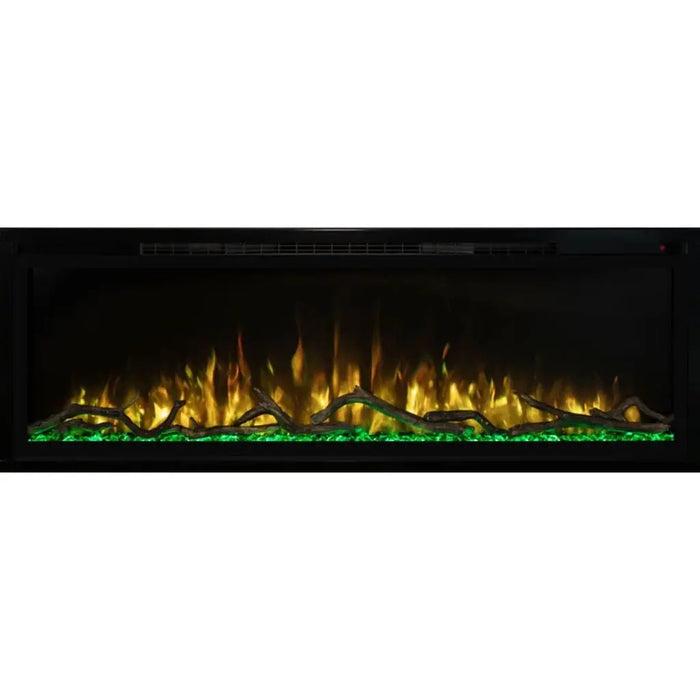

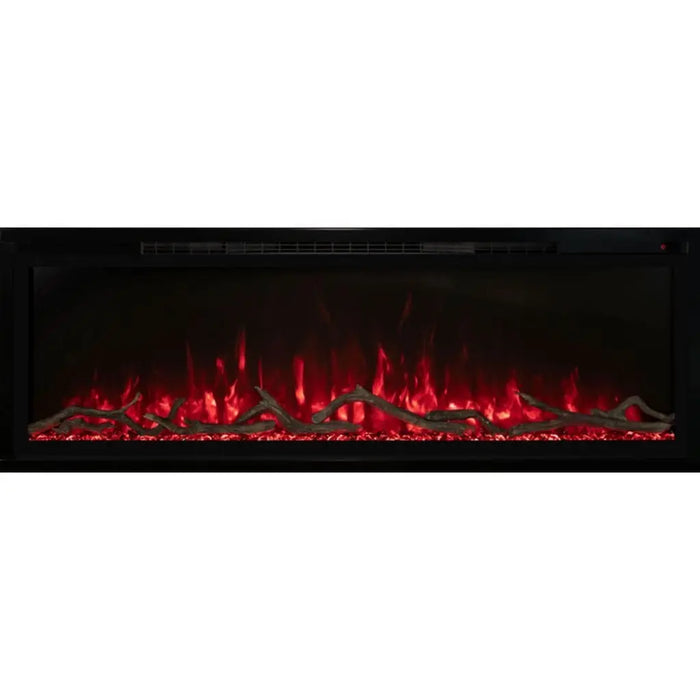

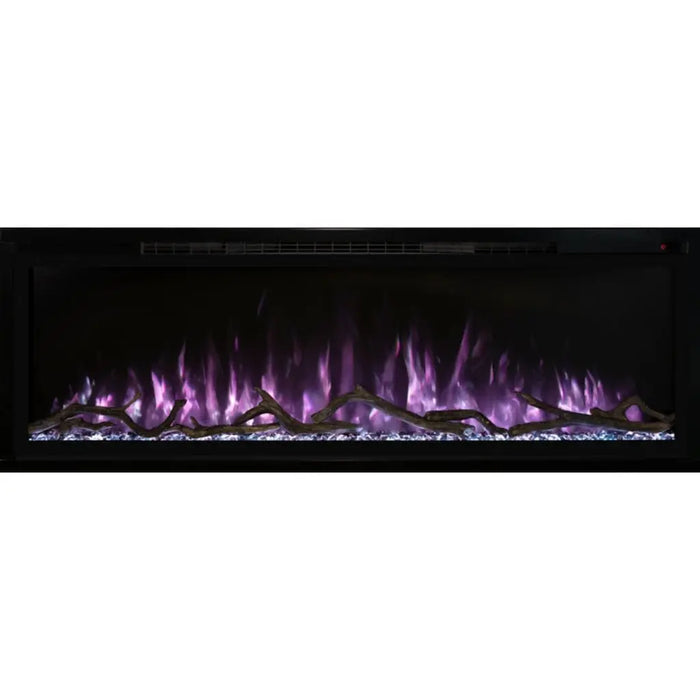

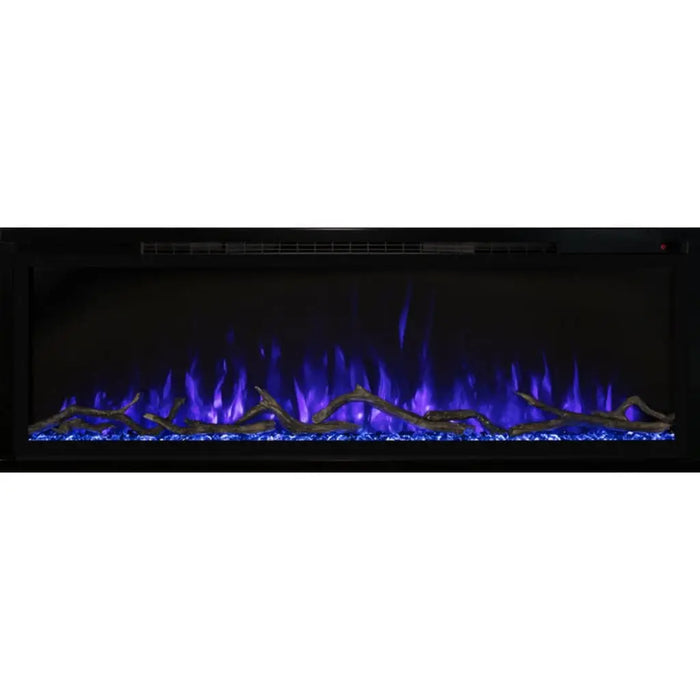

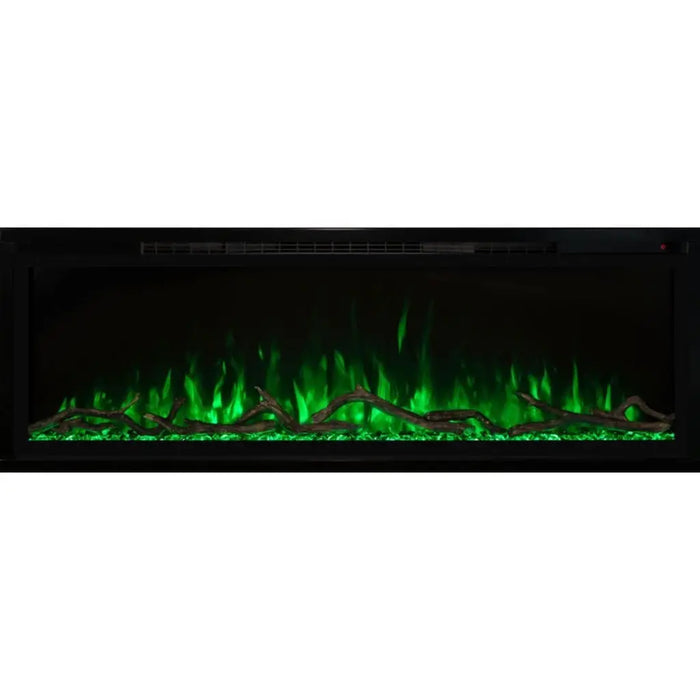

- 10 Flame & Ember Bed Colors, Plus Color Auto Cycling
- Variable Speed Flame Control
- Active Ember Bed

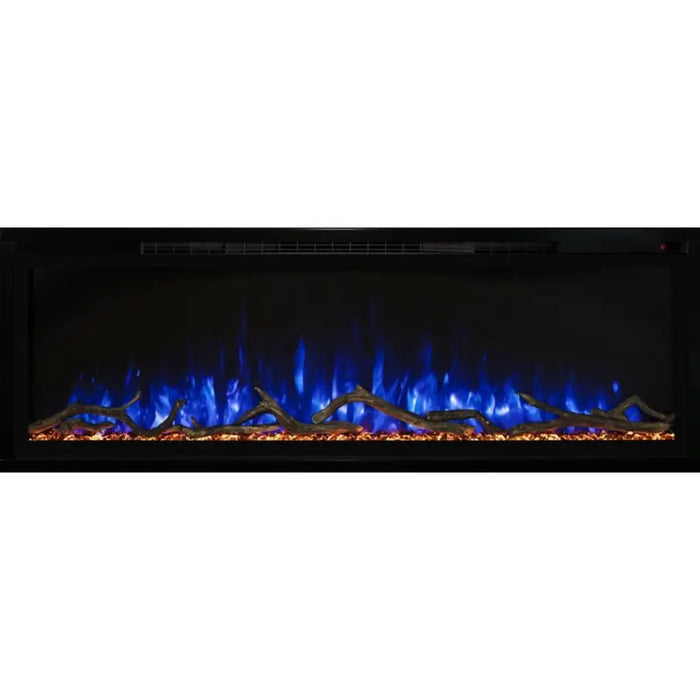

- Independently Controlled Flame & Ember Bed
MEDIA
- Clear Acrylic Media Standard
- Driftwood Log Set Standard
HEAT
- 5,000 BTU Heater
- Thermostatic Controls
- Whisper Quiet Fan
CONTROLS & FUNCTION
- Touch Button Controls on the Fireplace
- Push Button Remote
Technical Specifications
| Model |
SPS-100B |
| Fireplace Dimensions (W × H × D) |
99 3/4" × 17" × 4 3/4" |
| Viewing Area (W × H) |
95 7/8" × 12" |
| Finished Opening for Recess (W × H × D) |
98 7/8" × 16 1/4" × 4" min |
| Installation |
Recessed in a 2x4 wall or Wall Mount |
| Rated Use |
Indoor use only |
| Finish/Color |
Black |
| Media Bed |
Driftwood Log Set and Clear Acrylic Crystals |
| Volts |
120V |
| Watts |
1,465 W on high / 733 W on low |
| BTUs |
5,000 BTU |
| Wiring |
120V plug-in power cord or hardwire (cord is removed for fully recessed installation). Dedicated 15-amp circuit |
| Clearance to Combustibles |
Top 11.8" to mantel or ceiling; 0" sides, back and bottom. Keep 36" from furniture, drapes, bedding, paper, etc. |
| Warranty |
2 years standard; 5 years when registered with Modern Flames |
