Mason-Lite 120" Regal Wood Burning Firebox Kit - MFP120-RGL

SKU MFP120-RGL
Mason-Lite authorized dealer
Original price $22,420.00 - Original price $22,420.00
Original price
$22,420.00
$22,420.00 - $22,420.00
Current price $22,420.00

Mason-Lite 120" Regal Wood Burning Firebox Kit - MFP120-RGL

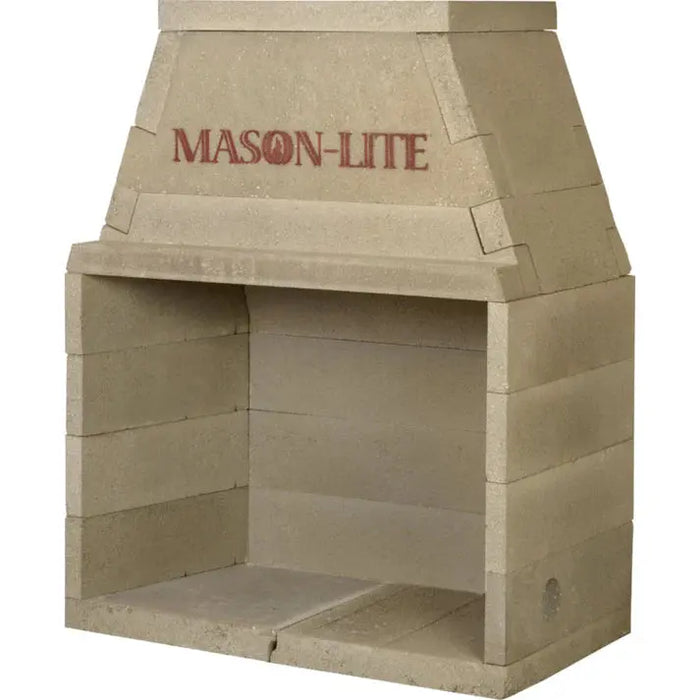

The Mason-Lite Regal MFP120-RGL is a 120" wide, 37.5" tall wood-burning masonry firebox kit for large rooms and outdoor living spaces. Regal sizes are measured at the finished opening, and the firebox must be lined with full-size firebrick sourced locally. Unlike the standard kits, Regal kits do not include a T-bar or angle iron. The Regal also comes in 72", 84", 96" and 108" widths.

Key Features

  • 120" W x 37.5" H x 20.5" D finished opening
  • Wood burning
  • Triple 14" Class A (UL 103) flues
  • 2" clearance to combustibles at the sides and rear, plus 2" from the dome top
  • UL listed up to 38.5" H x 120" W
  • Made in the USA from US-sourced materials

What to Order With It

  • Full-size firebrick (ASTM C1261), 9" x 4" x 2.5"; the spec sheet lists the count. Mason-Lite brick panels are not made for Regal models. Firebrick by the pallet is available.
  • Lintel support (T-bar or angle iron), sourced locally
  • Anchor plate/dampers for each 14" Class A chimney
  • Outside air where code requires it: MFP4-AK-M combustion air kit

Specifications

Model MFP120-RGL
Fuel Wood
Finished opening 120" W x 37.5" H x 20.5" D
Footprint 129.25" x 28"
Framing (W x H x D) 133-1/4" x 80-1/4" x 30"
Flue Triple 14" Class A (UL 103)
Clearance to combustibles 2"

Vertical dimensions are dry-stack minimums; mortar joints can add up to about 1" to the overall height. Installation on a combustible floor adds height for the required CMU block, cement board and insulation blanket. See the Regal manual for the clearance differences from the standard units.

Downloads

Warranty

Masonry Fireplace Industries (MFI) warrants Mason-Lite fireplaces against defects in materials that adversely affect performance for the lifetime of the product, subject to the terms of its limited warranty. Coverage is for the modular concrete firebox only. Hardware, foundation, venting, ducts and accessories are not covered, and neither are drafting, smoking or sooting. The warranty is void if the unit is not installed to MFI's instructions and local building codes, and it does not cover labor or shipping damage. It applies to units installed in the continental United States and Alaska.

Read the full terms in the Mason-Lite Lifetime Limited Warranty.
