Mason-Lite Linear Gas Fireplace (No Trough) – 12" B-Vent

SKU LMFP36-NT
Mason-Lite authorized dealer
Original price $7,493.00 - Original price $22,636.00
Original price
$7,493.00
$7,493.00 - $22,636.00
Current price $7,493.00

Not sure which options you need? Call 888-486-2909Chat with us

Mason-Lite Linear Gas Fireplace (No Trough) – 12" B-Vent

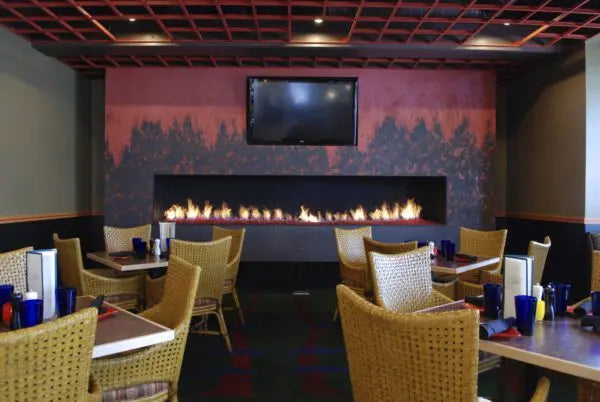

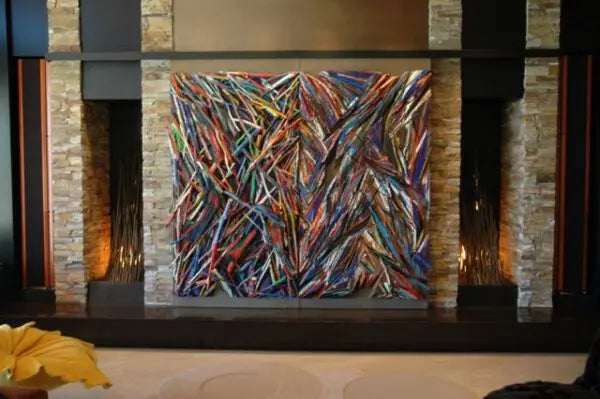

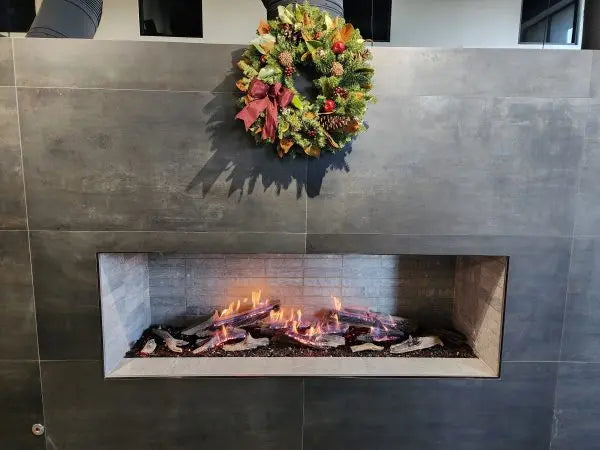

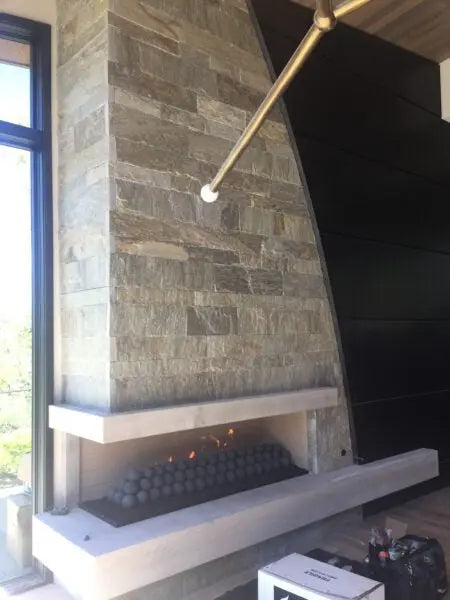

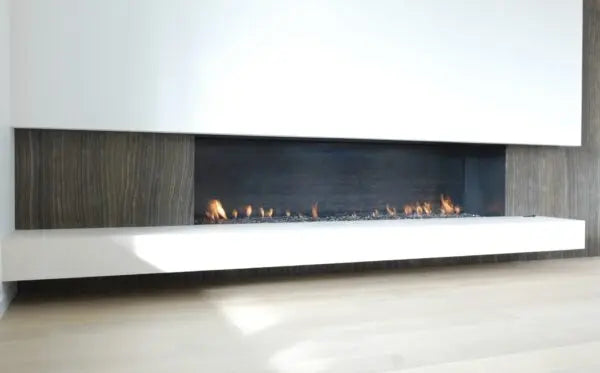

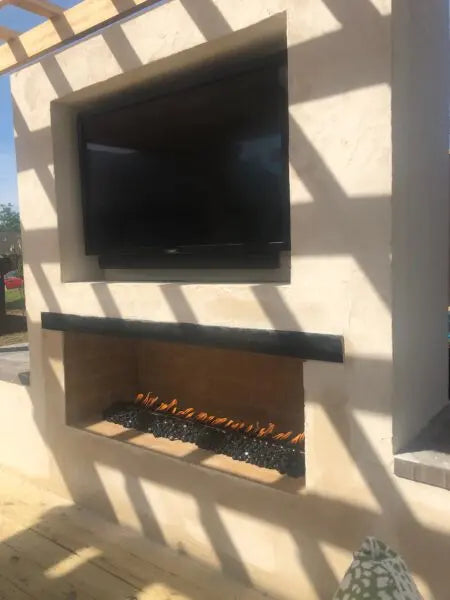

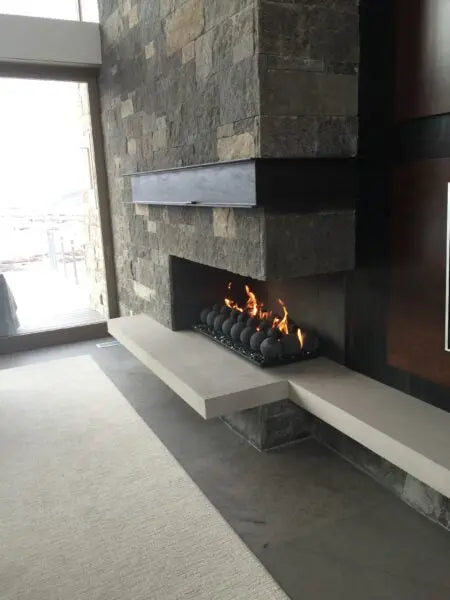

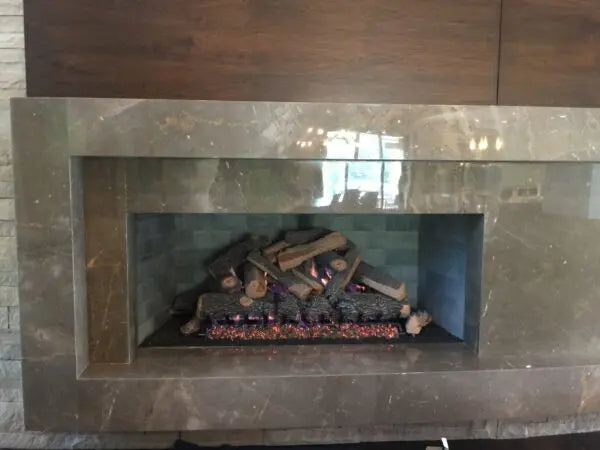

The Mason-Lite LMFP-NT linear gas fireplaces are flush-hearth (no trough) masonry fireboxes that vent through 12" B-vent, from 36" to 120" wide. The no-trough models accept traditional H-burners and log sets for more burner flexibility. For a concealed drop-in burner, see the LMFP linear fireplaces with burner trough.

Key Features

  • 22.5" H x 21.5" D finished opening in every width
  • Single 12" B-vent through 84"; two 12" B-vents on 96", 108" and 120"
  • Tested to ANSI Z21.50 / CSA 2.22 as a decorative gas appliance; tested only with approved glass doors
  • 2" clearance to combustibles

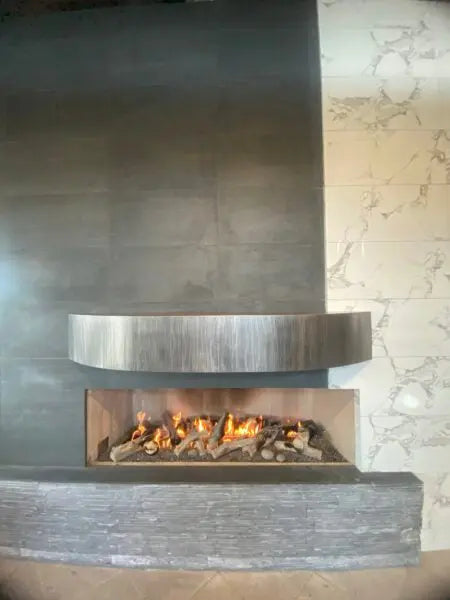

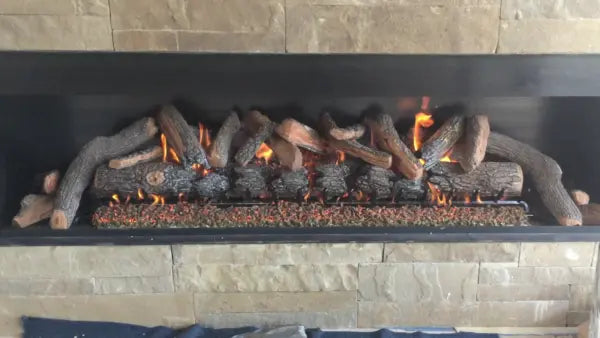

  • Burner sold separately: H-burners and log sets
  • T-bar or angle iron not included; see the manual for lintel options
  • Made in the USA from US-sourced materials

What to Order With It

  • Burner: an H-burner and log set sized to the manual; ask us for current availability
  • Lintel support (T-bar or angle iron), sourced locally
  • 12" B-vent pipe and draft hood per the manual
  • Outside air: MFPST-AK-M combustion air kit (the linear units take the see-through style kit)
  • Firebrick lining per the spec sheet (hand-laid firebrick; brick panels are not made for linear models)

Specifications

Model Width Framing (W x H x D) Vent Max input, NG
LMFP36-NT 36" Ask us 12" B-vent Ask us
LMFP48-NT 48" 65" x 56" x 30" 12" B-vent 85,000 (H-burner)
LMFP60-NT 60" 77" x 56" x 30" 12" B-vent 100,000 (H-burner)
LMFP72-NT 72" 89" x 56" x 30" 12" B-vent 120,000 (H-burner)
LMFP84-NT 84" 101" x 56" x 30" 12" B-vent 140,000 (H-burner)
LMFP96-NT 96" 113" x 56" x 30" (2) 12" B-vent 160,000 (H-burner)
LMFP108-NT 108" 125" x 56" x 30" (2) 12" B-vent 180,000 (H-burner)
LMFP120-NT 120" 137" x 56" x 30" (2) 12" B-vent 200,000 (H-burner)

Input ratings are from the rating plate in the January 2026 manual; log-burner ratings are lower. The 36" models are on the 2026 Mason-Lite price list but are not in the current spec sheets or manual, so confirm details with us before ordering. Gas connection and installation must be done by a qualified professional.

Downloads

Warranty

Masonry Fireplace Industries (MFI) warrants Mason-Lite appliances against defects in materials that adversely affect performance for the lifetime of the product, subject to the terms of its limited warranty. Coverage is for the modular concrete firebox only. Hardware, foundation, venting, ducts and accessories are not covered, and neither are drafting, smoking or sooting. The warranty is void if the unit is not installed to MFI's instructions and local building codes, and it does not cover labor or shipping damage. It applies to units installed in the continental United States and Alaska.

Read the full terms in the Mason-Lite Lifetime Limited Warranty.
