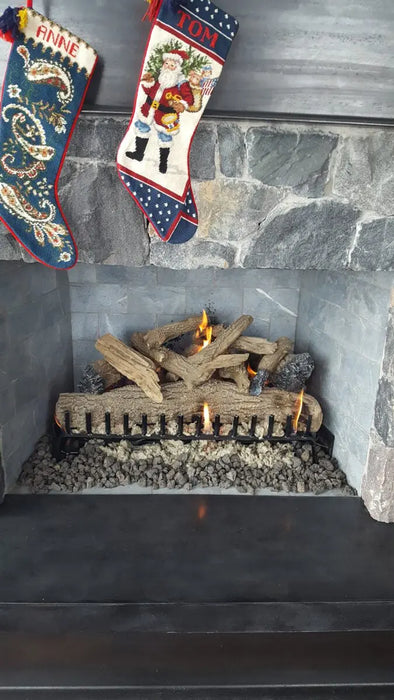

Mason-Lite 63" Standard Wood Burning or Gas Firebox Kit - MFP63

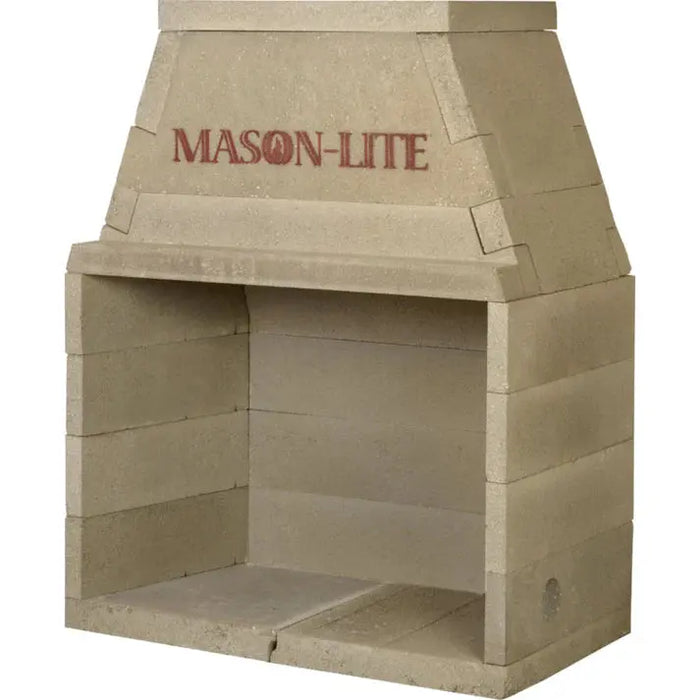

The Mason-Lite MFP63 is a 63" modular masonry firebox kit for wood burning or gas logs, indoors or outdoors. It is cast from lightweight pumice-aggregate concrete in interlocking pieces that a mason mortars together on site, and the kit includes MFI high-temperature mortar and a steel T-bar or angle iron for the lintel. The 63" is the raw box width; lined with firebrick panels or hand-laid firebrick, the finished opening is 60" W x 30.5" H x 21.5" D.
| Model | MFP63 |
| Fuel | Wood or gas |
| Finished opening (lined) | 60" W x 30.5" H x 21.5" D |
| Footprint | 67" x 28" |
| Framing (W x H x D) | 71" x 72 1/2" x 30" |
| Flue | 16" Class A (UL 103) |
| Clearance to combustibles | 2" sides and back |
| Listings | UL 127 (PFS 08-154), ICC-ES ESR-2401 |
Dimensions are nominal and grow slightly with mortar joints. Use the spec sheet and installation manual for framing, hearth extension and chimney height requirements.
Masonry Fireplace Industries (MFI) warrants Mason-Lite fireplaces against defects in materials that adversely affect performance for the lifetime of the product, subject to the terms of its limited warranty. Coverage is for the modular concrete firebox only. Hardware, foundation, venting, ducts and accessories are not covered, and neither are drafting, smoking or sooting. The warranty is void if the unit is not installed to MFI's instructions and local building codes, and it does not cover labor or shipping damage. It applies to units installed in the continental United States and Alaska.
Read the full terms in the Mason-Lite Lifetime Limited Warranty.
