Features
- SL1100 Series straight chimney section for Majestic wood-burning fireplaces
- Stainless steel inner wall with galvalume outer wall
- Ruggedly built for durability
- 11" inner diameter, 13" outer diameter
- Available in five lengths: 6", 12", 18", 36" and 48"
- Requires a 2" minimum air space clearance to combustibles and building insulation
Specifications
| Series |
SL1100 |
| Inside diameter |
11" (279 mm) |
| Outside diameter |
13" (330 mm) |
| Inner wall material |
Stainless steel |
| Outer wall material |
Galvalume steel |
| Minimum clearance to combustibles |
2" (51 mm) air space |
| Application |
Majestic wood-burning fireplaces specifying SL1100 Series chimney |

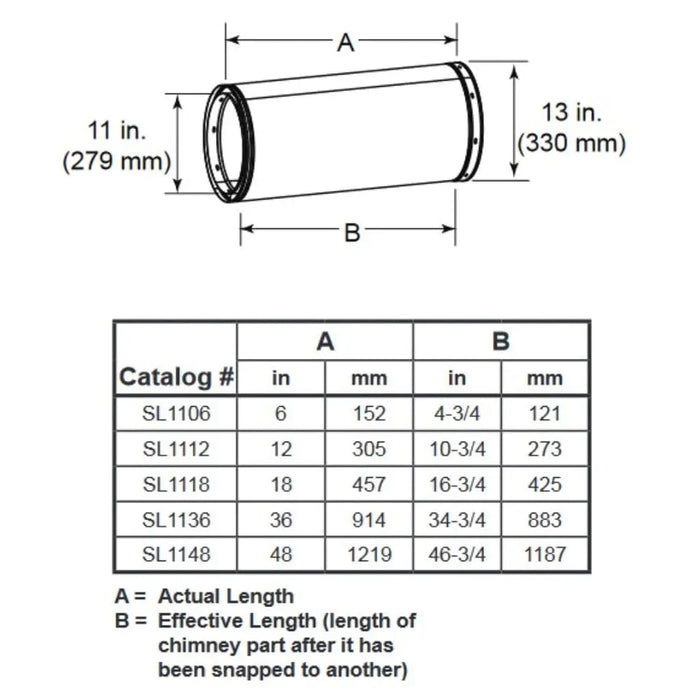

Lengths and Effective Height
Important when planning a chimney run: each section joins into the one below it, so the height it actually adds to the system is less than its nominal length. Use the effective height column when calculating how many sections you need — adding up nominal lengths will leave you short.
| Catalog # |
Nominal length |
Effective height |
| SL1106 |
6" (152 mm) |
4-3/4" (121 mm) |
| SL1112 |
12" (305 mm) |
10-3/4" (273 mm) |
| SL1118 |
18" (455 mm) |
16-3/4" (425 mm) |
| SL1136 |
36" (915 mm) |
34-3/4" (883 mm) |
| SL1148 |
48" (1220 mm) |
46-3/4" (1187 mm) |
Installation Notes
- A 2" (51 mm) minimum air space clearance must be maintained to insulation and all other combustible materials surrounding the chimney system. Failure to do so may cause overheating and fire.
- Chimney sections at any level require a 2" minimum air space between the framing and the chimney section.
- The chimney must be enclosed from the fireplace to the attic, maintaining the 2" clearances throughout.
- Support the pipe during construction and verify that no inadvertent loading has dislodged a section at the fireplace or at any chimney joint.
- Firestop spacers, an attic insulation shield, roof flashing, a storm collar and a termination cap are required to complete the system — all are available in the SL1100 range.
- Always follow the installation manual supplied with your fireplace for the complete chimney configuration, maximum and minimum heights, and offset limits.
