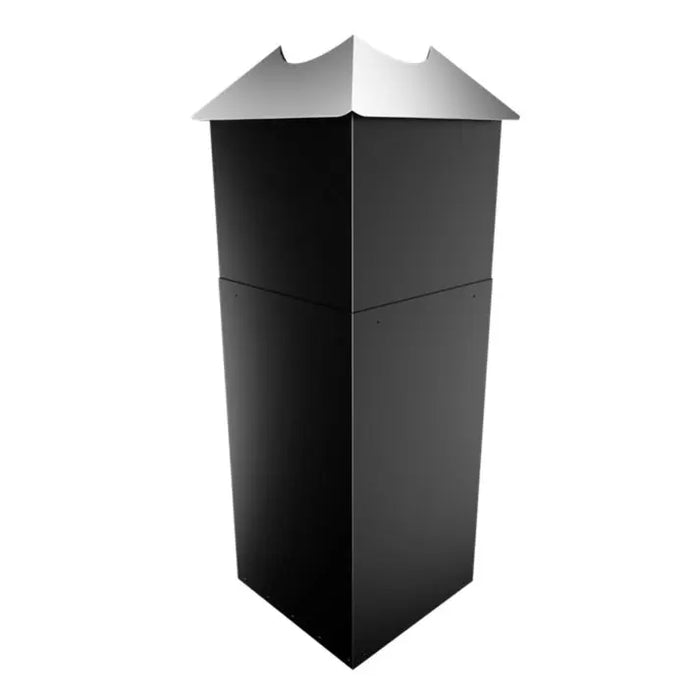

DuraVent DuraTech 6" Pass Through Radiation Shield
The DuraVent DuraTech 6" Pass Through Radiation Shield is a premium chimney safety component designed to ensure safe passage of DuraTech 6-inch chimney pipe through walls and structural assemblies. Built for use with wood stoves, fireplaces, furnaces, boilers, and all-fuel venting systems, it enhances chimney fire safety, draft performance, and structural protection. Featuring advanced Thermal Tech blanket insulation encased between dual walls, DuraTech maintains a cooler outer surface while supporting high flue gas temperatures for efficient operation.
Engineered for long-term performance, the DuraTech chimney system includes a 25% thicker inner wall for added safety and durability. The system is tested to rigorous UL 103HT standards, including continuous operation at 1000°F, one hour at 1400°F, and three 2100°F chimney fire tests. This pass-through radiation shield ensures code-compliant installation, improved clearance protection, and reliable performance in modern chimney venting systems.
Features
-
Premium Chimney Pass-Through Safety Component: The DuraVent DuraTech 6" Pass Through Radiation Shield is designed for safe installation of DuraTech 6-inch chimney pipe systems through ceiling penetrations.
-
Ideal for Ceiling Penetrations: Used when an insulated chimney passes through a ceiling from below, ensuring proper clearance and enhanced chimney fire safety.
-
Perfect for Fireplace Installations: Ideal for use above a factory-built fireplace, supporting secure and code-compliant chimney venting system setups.
-
Versatile Installation Applications: Suitable for flat, vaulted, or cathedral ceilings, as well as shallow attic spaces with limited access.
-
Integrated Firestop Protection: Features a built-in firestop on the bottom for added protection and improved safety performance.
-
Dual Function Design: The top section can also function as an attic radiation shield, providing flexible installation solutions where required.
-
Complete Installation Kit: Includes a factory-supplied square-to-round collar for easy and secure chimney system connection.
-
Adjustable Height Design: Features an adjustable effective height from 24" to 36", allowing flexibility for various ceiling and attic configurations.
Specifications
| Specification |
Details |
| Model |
6DT-SRSE |
| Series |
DuraTech DT (5"-8") |
| Product Type |
Radiation Shield |
| Inside Diameter (Size) |
6" |
| A |
12" |
| B |
12" |
| C |
8.25" |
