Lexington Tobacco Barn Series Fireplace Non-Combustible Mantel
The Tobacco Barn mantel is molded directly from a 7.5" x 7.5" barn timber, a nod to the historic tobacco barns of Kentucky. The casting keeps the hand-hewn tool marks, deep checking, knots and the growth rings you can see on each end.
It is cast in Burncrete, Lexington's non-combustible material, and hand-painted in Lexington, Kentucky, in five colors. Model number TB-4-LH (48"), TB-5-LH (60") or TB-6-LH (72"), followed by the color code.
The Tobacco Barn: A Hand-Hewn Beam in Three Lengths
With a 48" length in the lineup, this series fits smaller fireplace walls as well as wide ones. Its ASTM E136 rating lets it sit closer to a heat source than a wood beam, which helps when a TV is going on the wall above. Lexington's install guide calls for at least 6" of clearance above equipment under 50,000 Btu and 12" at 50,000 Btu or more; your fireplace's clearances and local code come first.

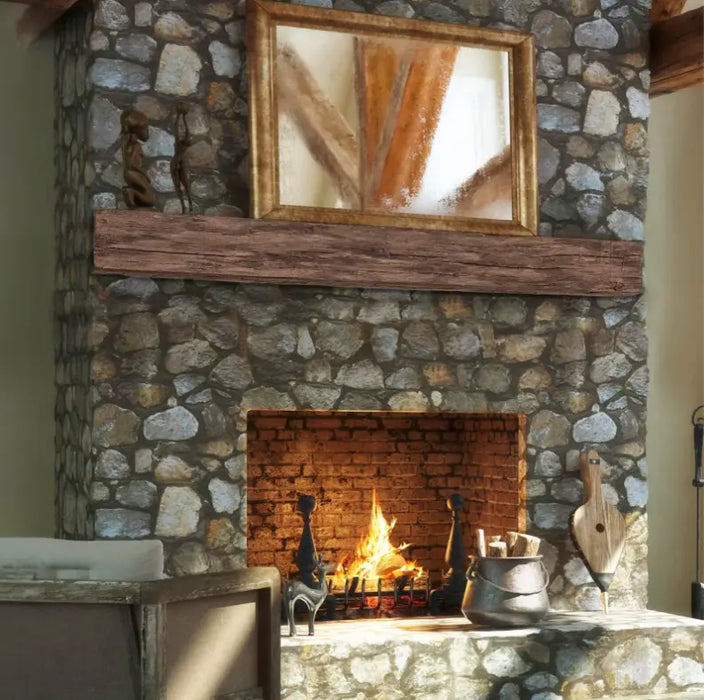

The hollow core keeps it light enough for a standard framed wall. It works over an electric fireplace or a gas unit in a farmhouse or lodge-style room, and the full Lexington Hearth collection has the matching accessories.
Features
-
Hand-hewn texture: tool marks, deep checks, knots and end-grain growth rings from the original barn timber.
-
Non-combustible: certified under ASTM E136, a vertical tube furnace test at 750°C.
-

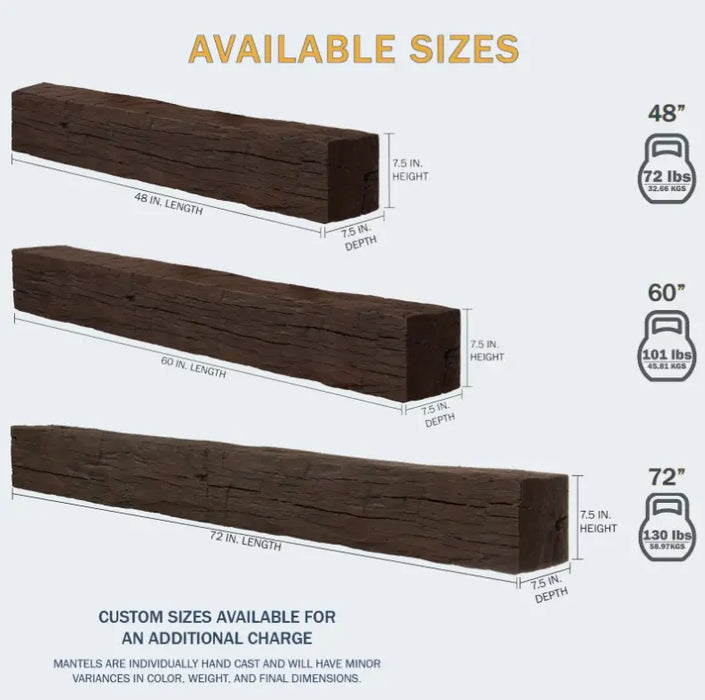

Three lengths: 48", 60" or 72", from 72 lb to 130 lb.
-

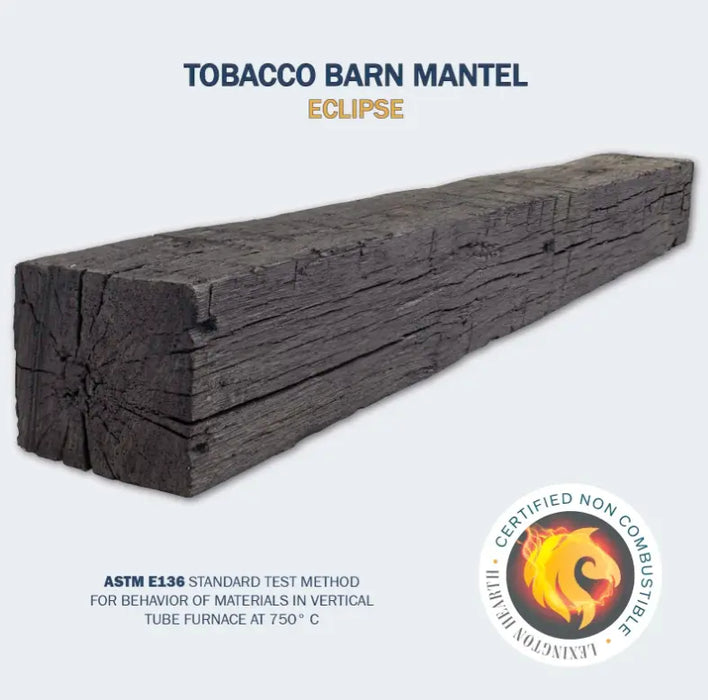

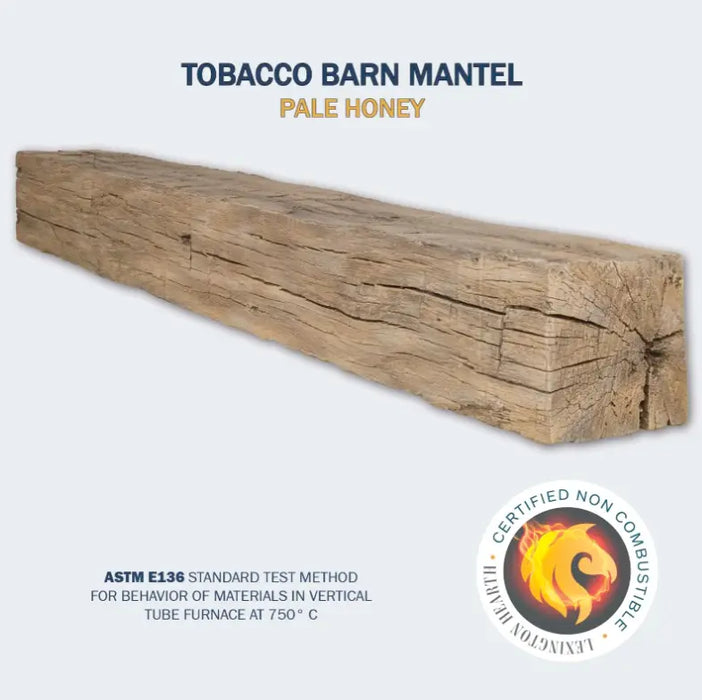

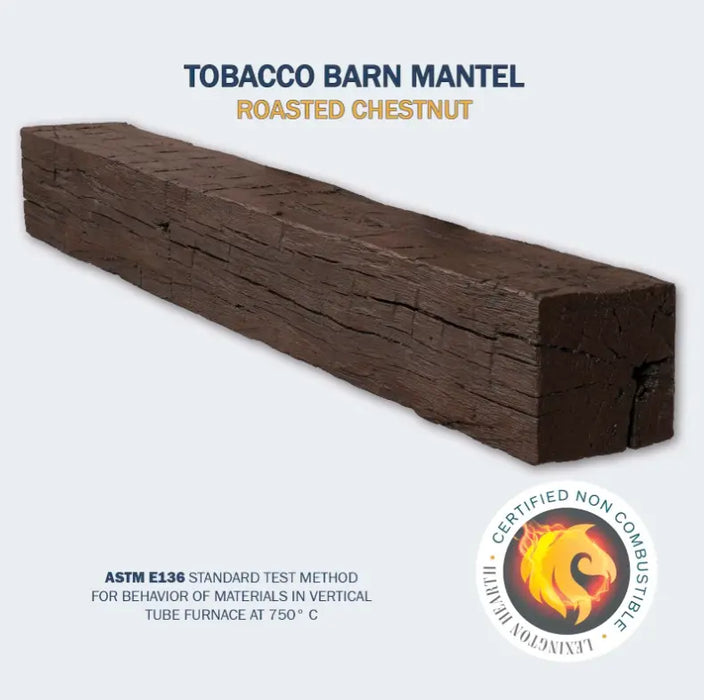

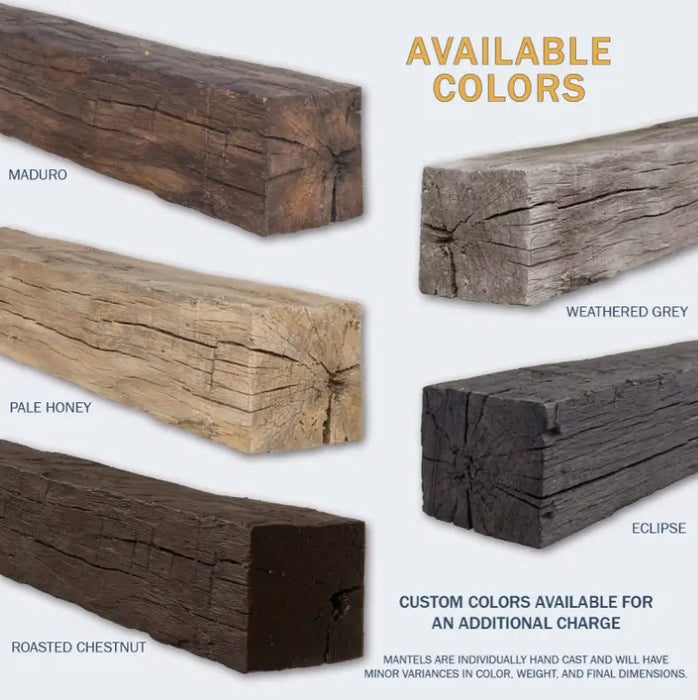

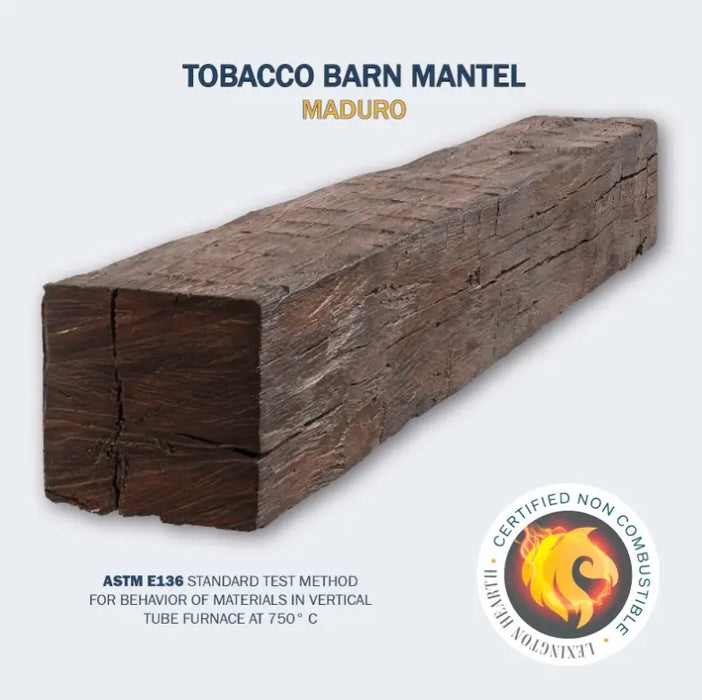

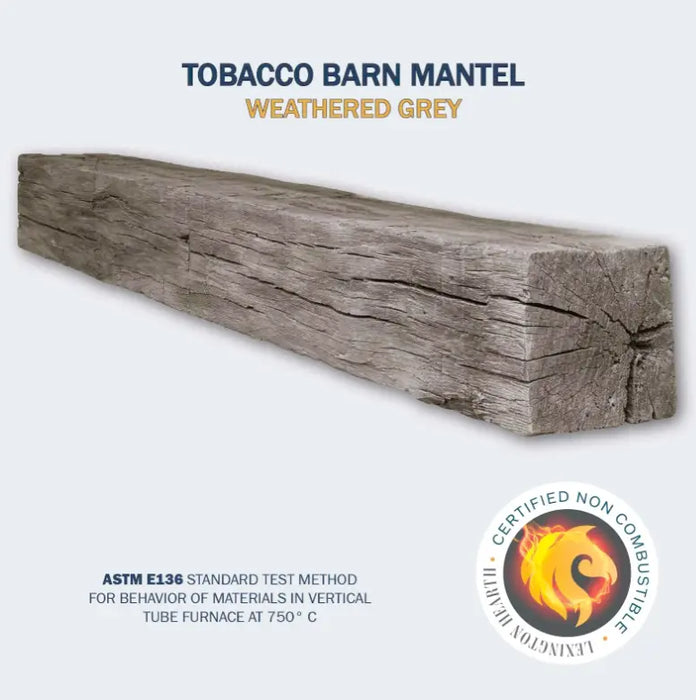

Five hand-painted colors: Maduro, Pale Honey, Weathered Grey, Eclipse or Roasted Chestnut.
-
Room to grow: the matching extension, corner piece and bracket trim take it past 72" or around a corner.

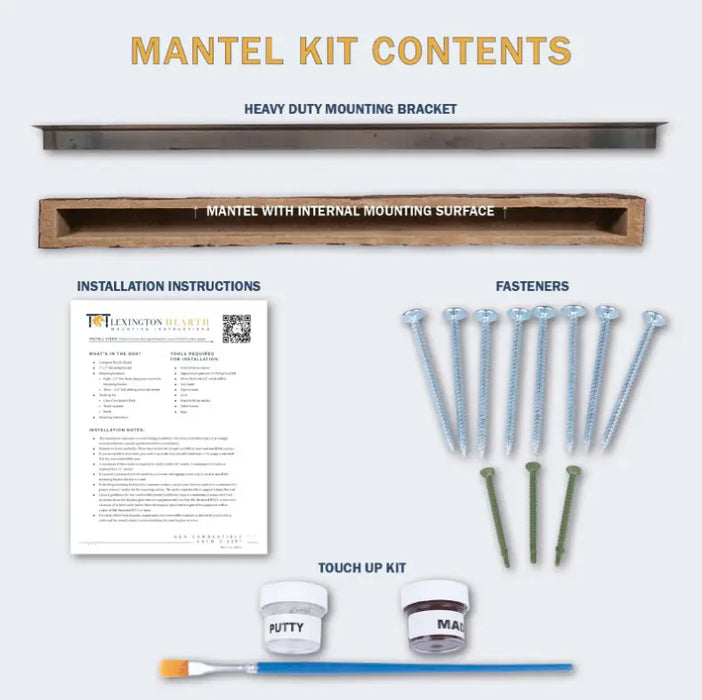

Package Contents
- Tobacco Barn mantel, in your chosen length and color
- 3" x 2" steel mounting bracket
- Bracket screws (8) and self-drilling mantel screws (3)
- Touch-up kit with filler putty, touch-up paint and a brush
- Installation instructions
What to Order With It
Longer runs and corners (optional):
Corbels (optional):
Specifications
| Model numbers |
48": TB-4-LH-MD, TB-4-LH-PH, TB-4-LH-WG, TB-4-LH-EC, TB-4-LH-RC
60": TB-5-LH-MD, TB-5-LH-PH, TB-5-LH-WG, TB-5-LH-EC, TB-5-LH-RC
72": TB-6-LH-MD, TB-6-LH-PH, TB-6-LH-WG, TB-6-LH-EC, TB-6-LH-RC |
| Color codes |
MD Maduro, PH Pale Honey, WG Weathered Grey, EC Eclipse, RC Roasted Chestnut |
| Lengths |
48", 60" or 72" |
| Profile |
7.5" deep x 7.5" high |
| Weight |
72 lb (48"), 101 lb (60"), 130 lb (72") |
| Material |
Burncrete non-combustible casting, hollow core |
| Certification |
ASTM E136 non-combustible |
| Mounting |
3" x 2" steel bracket screwed into wall studs; mantel fastens through the top |
| Studs needed |
2 (48"), 3 (60"), 4 (72"); two screws per stud, at least 1.5" into the stud |
| Made in |
Lexington, Kentucky, USA |
FAQs
Can I get the Tobacco Barn in a custom length or color?
Yes. Lexington makes custom lengths between 48" and 72", and shorter on request. Past 72", add the 2 ft extension and bracket trim. Burncrete should not be cut or sanded on site, so order the length you need. Custom colors are matched at the factory. Reach out to our team for a quote.
What covers the joint when I add an extension?
The DBT-1 Decorative Bracket Trim, sold single or as a set of 2 in Black or Bronze. It is the same trim used on the Rickhouse.
How is it installed?
With two people and basic tools. Screw the bracket into the studs (2 for the 48", 3 for the 60", 4 for the 72"), set the mantel on it, drive three screws down through the top, then fill and touch up the holes. For walls other than wood framing, consult a professional.
Documents & Downloads
Warranty
Lexington Hearth one-year limited warranty:
- Covers manufacturing and workmanship defects for one year from the original purchase date, for the original purchaser.
- A confirmed defect is handled by replacing the product or the affected part.
- Not covered: cutting, drilling, painting or refinishing, improper installation or clearances, water or freezing damage, shipping damage and labor.
