Lexington Flat Sawn Beam Series Fireplace Non-Combustible Mantel

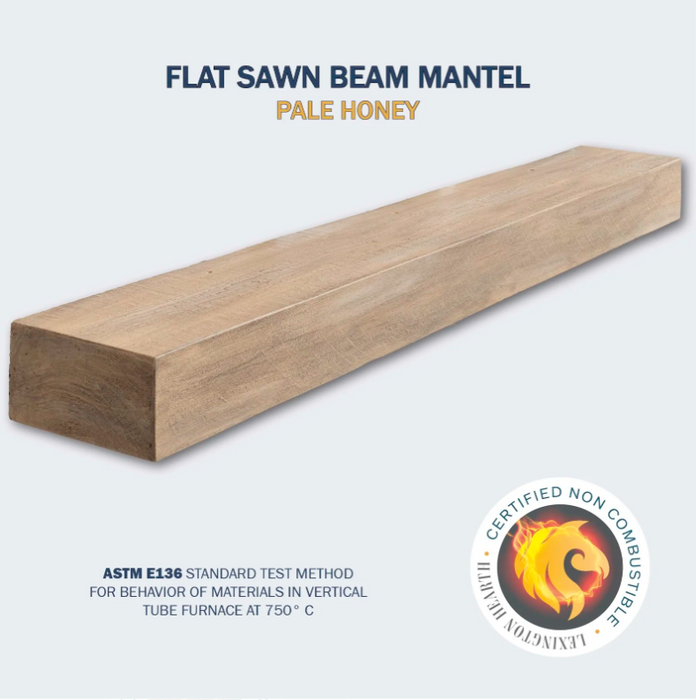

The Flat Sawn Beam is modeled on a rough-cut western red cedar beam and inspired by the four-rail paddock fences on Kentucky's thoroughbred farms. Its top and bottom show rough-sawn grain, and the smooth face carries circular saw marks.
At 4" high and 8.25" deep, its narrow face was designed for contemporary and transitional homes. It is cast in Burncrete and hand-painted in five colors. Model number FS-4-LH (48"), FS-5-LH (60") or FS-6-LH (72"), followed by the color code.
The Flat Sawn Beam: A Slim Timber Line for Transitional Rooms

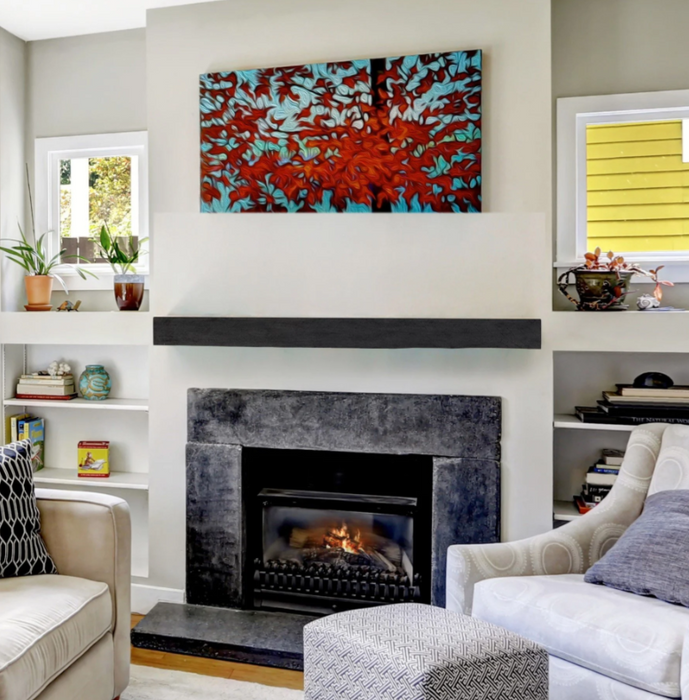

The low 4" face works over a linear fireplace as well as a traditional one, and the ASTM E136 rating lets it mount closer to a heat source than wood, with more wall left for a TV. Lexington's install guide calls for at least 6" of clearance above equipment under 50,000 Btu and 12" at 50,000 Btu or more; your fireplace's clearances and local code come first.
The hollow core mounts on a framed wall with the included bracket. See the full Lexington Hearth collection for the rustic series.
Features
-
Paddock fence style: rough-sawn top and bottom with a smooth, saw-marked face.
-
Slim profile: 4" high and 8.25" deep.
-

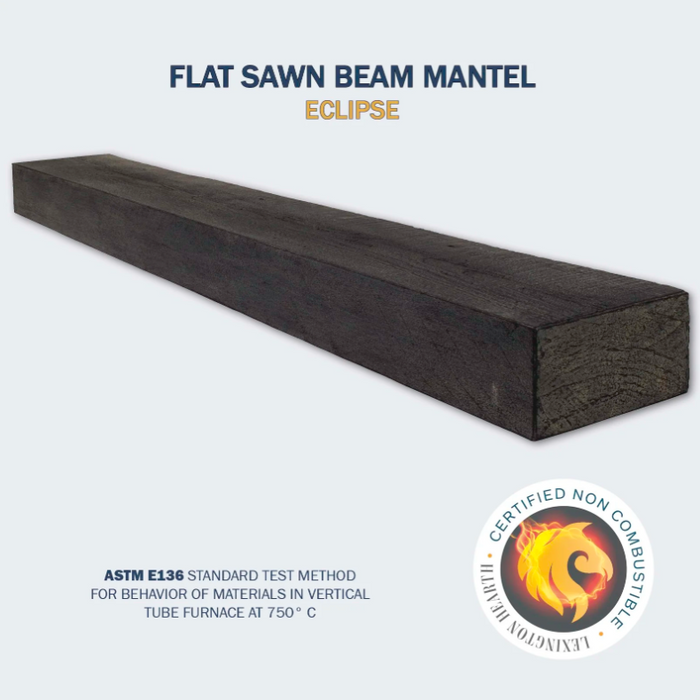

Non-combustible: certified under ASTM E136, a vertical tube furnace test at 750°C.
-
Three lengths: 48", 60" or 72", from 63 lb to 97 lb.
-
Room to grow: the matching extension, corner piece and bracket trim take it past 72" or around a corner.

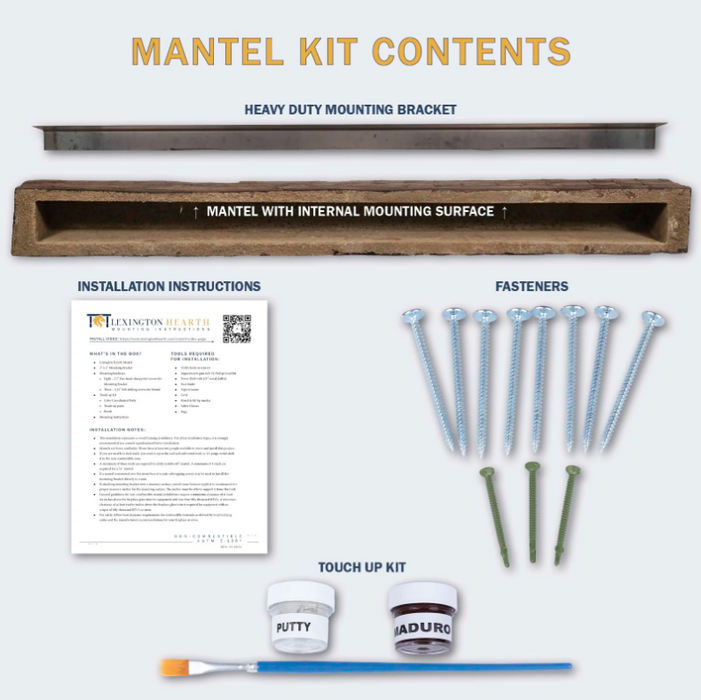

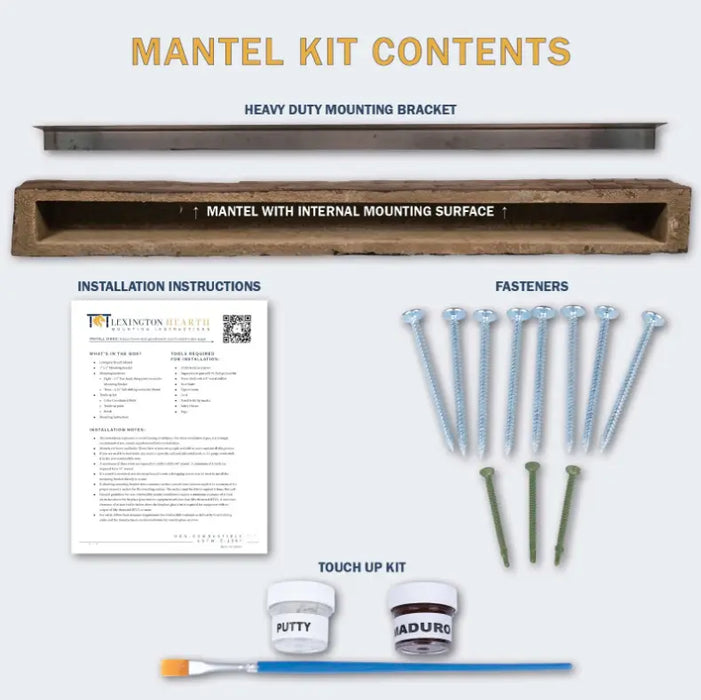

Package Contents
- Flat Sawn Beam mantel, in your chosen length and color
- 3" x 2" steel mounting bracket
- Bracket screws (8) and self-drilling mantel screws (3)
- Touch-up kit with filler putty, touch-up paint and a brush
- Installation instructions
What to Order With It
Longer runs and corners (optional):
Corbels (optional):
Specifications
| Model numbers |
48": FS-4-LH-MD, FS-4-LH-PH, FS-4-LH-WG, FS-4-LH-EC, FS-4-LH-RC
60": FS-5-LH-MD, FS-5-LH-PH, FS-5-LH-WG, FS-5-LH-EC, FS-5-LH-RC
72": FS-6-LH-MD, FS-6-LH-PH, FS-6-LH-WG, FS-6-LH-EC, FS-6-LH-RC |
| Color codes |

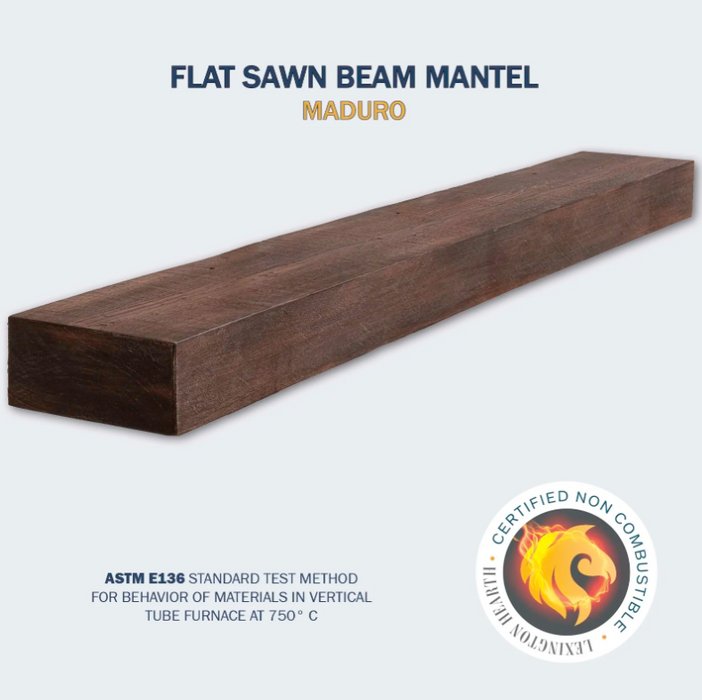

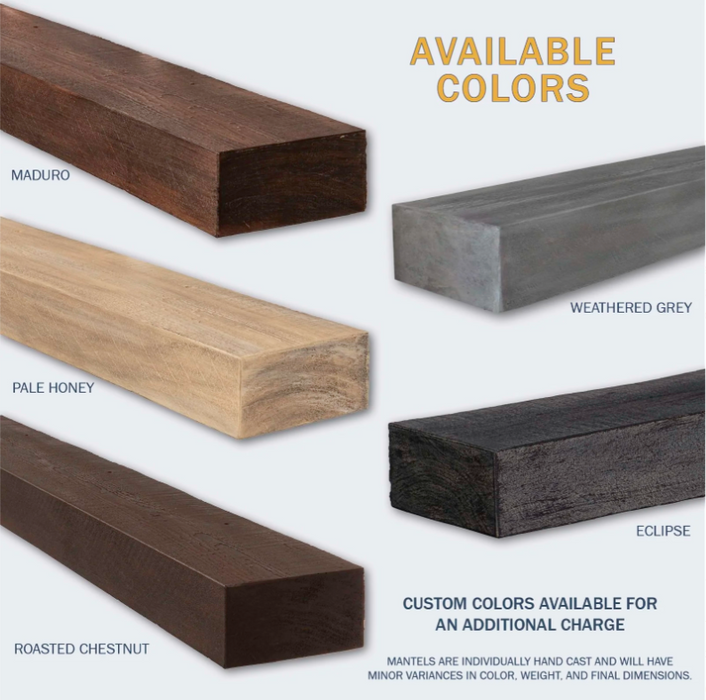

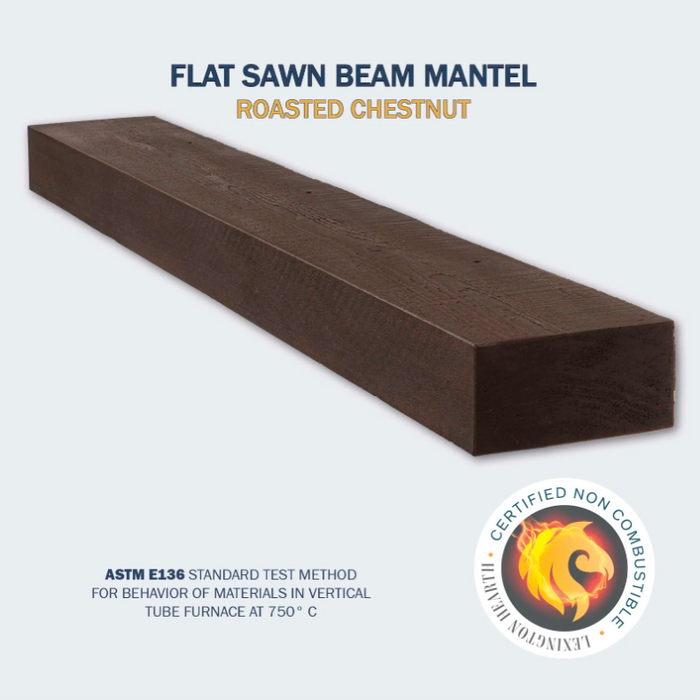

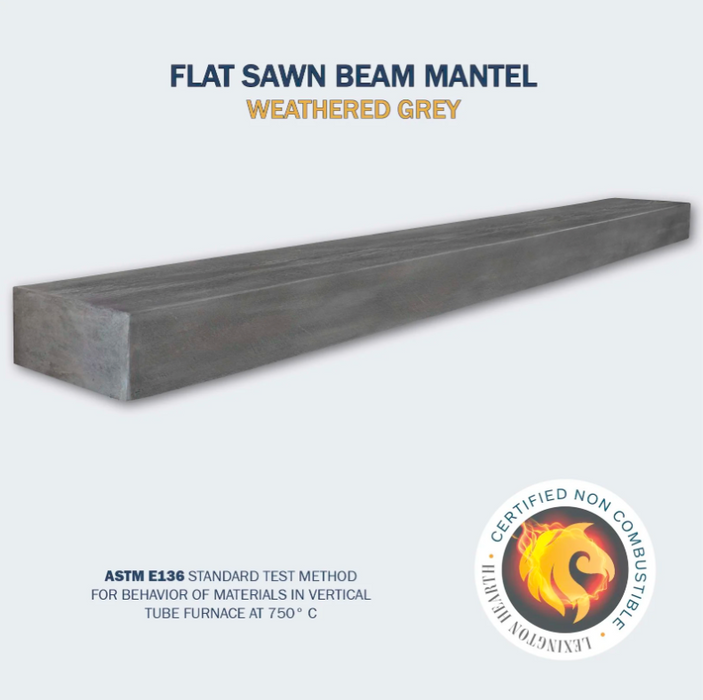

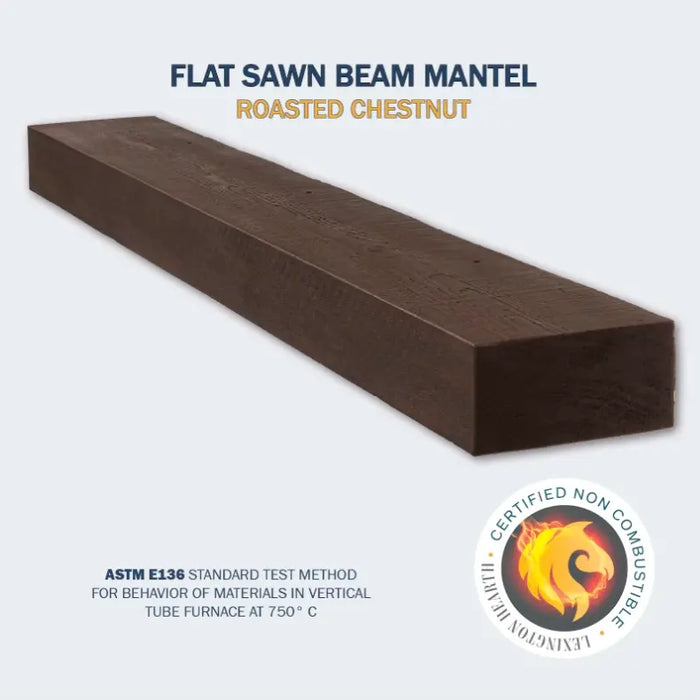

MD Maduro, PH Pale Honey, WG Weathered Grey, EC Eclipse, RC Roasted Chestnut |

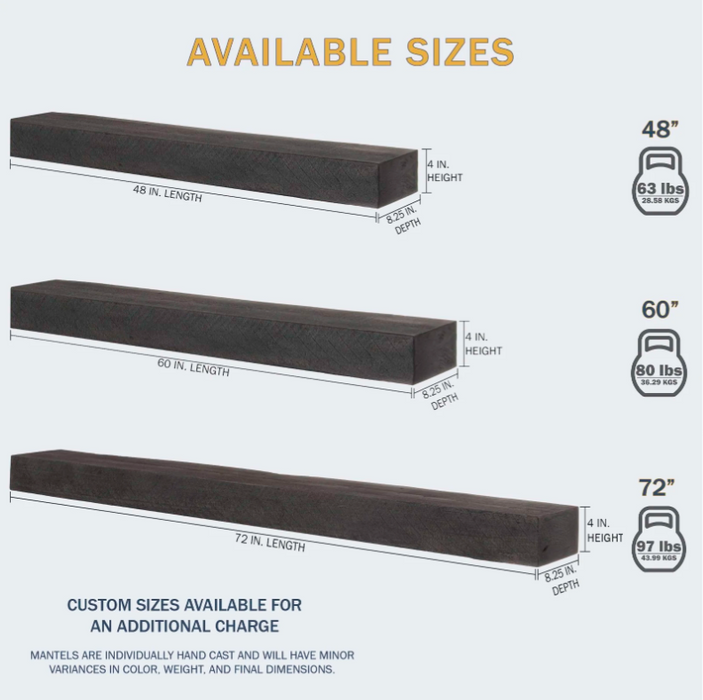

| Lengths |
48", 60" or 72" |
| Profile |
8.25" deep x 4" high |
| Weight |
63 lb (48"), 80 lb (60"), 97 lb (72") |
| Material |
Burncrete non-combustible casting, hollow core |
| Certification |
ASTM E136 non-combustible |
| Mounting |
3" x 2" steel bracket screwed into wall studs; mantel fastens through the top |
| Studs needed |
2 (48"), 3 (60"), 4 (72"); two screws per stud, at least 1.5" into the stud |
| Made in |
Lexington, Kentucky, USA |
FAQs
Can I get the Flat Sawn Beam in a custom length or color?
Yes. Lexington makes custom lengths between 48" and 72", and shorter on request. Past 72", add the 2 ft extension and bracket trim. Burncrete should not be cut or sanded on site, so order the length you need. Custom colors are matched at the factory. Reach out to our team for a quote.
How is it installed?
With two people and basic tools. Screw the bracket into the studs (2 for the 48", 3 for the 60", 4 for the 72"), set the mantel on it, drive three screws down through the top, then fill and touch up the holes. For walls other than wood framing, consult a professional.
Documents & Downloads
Warranty
Lexington Hearth one-year limited warranty:
- Covers manufacturing and workmanship defects for one year from the original purchase date, for the original purchaser.
- A confirmed defect is handled by replacing the product or the affected part.
- Not covered: cutting, drilling, painting or refinishing, improper installation or clearances, water or freezing damage, shipping damage and labor.
