Lexington Federal Series Fireplace Non-Combustible Mantel

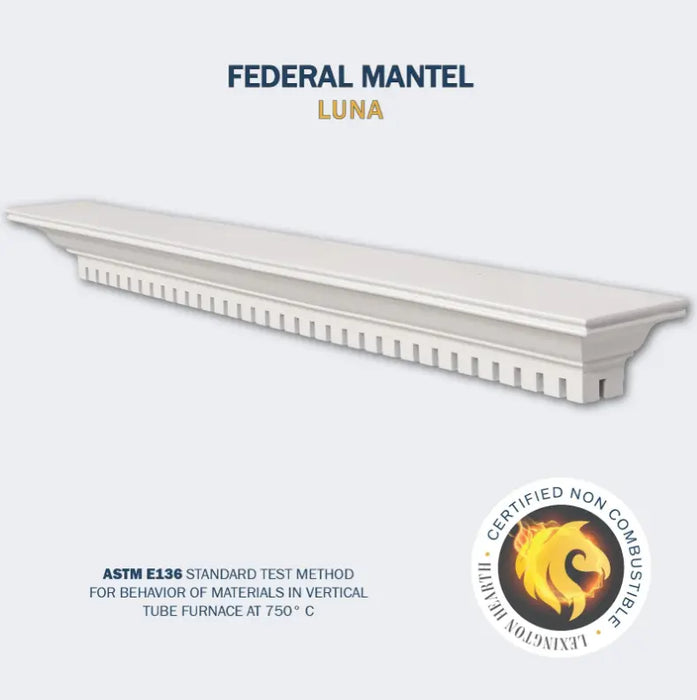

The Federal mantel shelf carries the dentil molding, curves and fine beading of Federal-style architecture, a traditional choice for a colonial-style fireplace. Lexington also makes it in wood; this is the non-combustible version, cast in Burncrete.

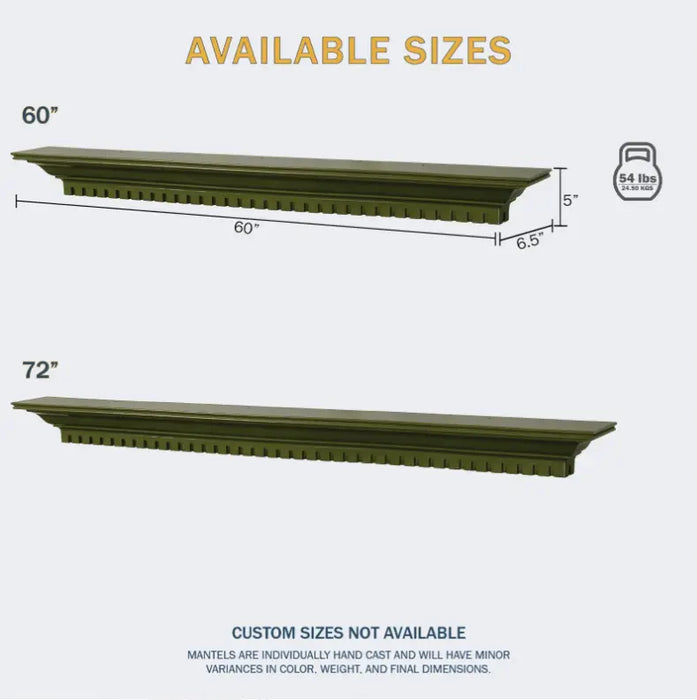

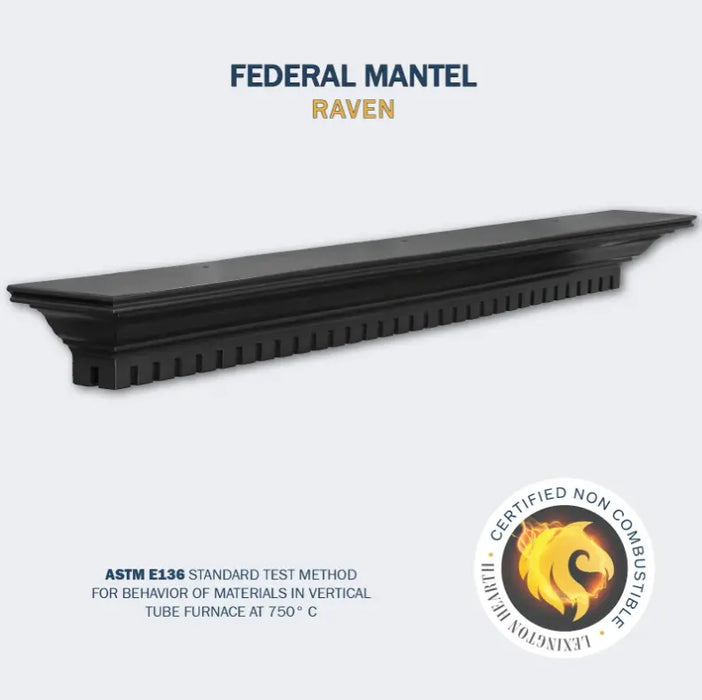

It is 6.5" deep and 5" high and hand-painted in Luna (white), Avocado or Raven (black). Model number FD-5-LH (60") or FD-6-LH (72"), followed by WH, GR or BK.
The Federal: Colonial Detail That Can Sit Close to the Fire
The non-combustible casting can be mounted closer to a heat source than a wood shelf, which leaves more room for a TV above. Lexington's install guide calls for at least 6" of clearance above equipment under 50,000 Btu and 12" at 50,000 Btu or more; your fireplace's clearances and local code come first.
At 41 lb (60") or 50 lb (72"), it mounts on a steel bracket screwed into the studs. Set it over a gas fireplace or browse the rest of the Lexington Hearth collection.
Features
-
Federal-style detail: dentil molding, curves and fine beading.
-
Non-combustible: Burncrete casting, certified under ASTM E136.
-
Light to mount: 41 lb (60") or 50 lb (72").
-

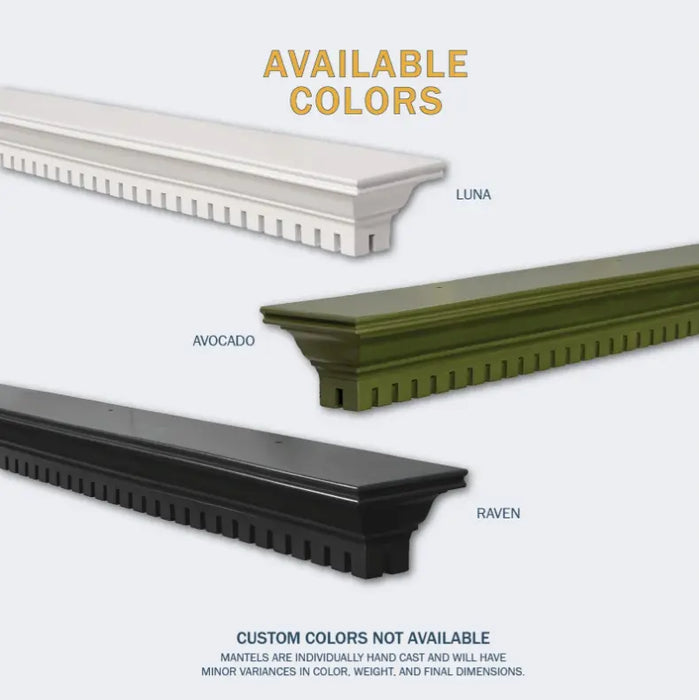

Three hand-painted colors: Luna, Avocado or Raven.

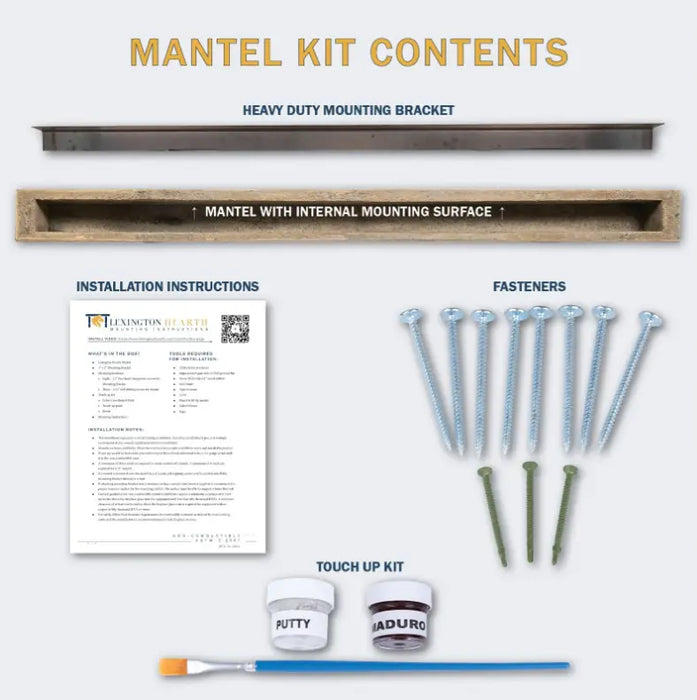

Package Contents
- Federal mantel shelf, in your chosen length and color
- 3" x 2" steel mounting bracket
- Bracket screws (8) and self-drilling mantel screws (3)
- Touch-up kit with filler putty, touch-up paint and a brush
- Installation instructions
Specifications
| Model numbers |
60": FD-5-LH-WH, FD-5-LH-GR, FD-5-LH-BK
72": FD-6-LH-WH, FD-6-LH-GR, FD-6-LH-BK |
| Color codes |
WH Luna, GR Avocado, BK Raven |
| Lengths |
60" or 72" |
| Profile |
6.5" deep x 5" high |
| Weight |
41 lb (60"), 50 lb (72") |
| Material |
Burncrete non-combustible casting |
| Certification |
ASTM E136 non-combustible |
| Mounting |
3" x 2" steel bracket screwed into wall studs; mantel fastens through the top |
| Studs needed |
3 (60"), 4 (72"); two screws per stud, at least 1.5" into the stud |
| Made in |
Lexington, Kentucky, USA |
FAQs
Can I get the Federal in a custom length?
No. Because of the dentil molding, the Federal comes only in 60" and 72". Reach out to our team with any color questions.
How is it installed?
With two people and basic tools. Screw the bracket into the studs (3 for the 60", 4 for the 72"), set the mantel on it, drive three screws down through the top, then fill and touch up the holes. For walls other than wood framing, consult a professional.
Documents & Downloads
Warranty
Lexington Hearth one-year limited warranty:
- Covers manufacturing and workmanship defects for one year from the original purchase date, for the original purchaser.
- A confirmed defect is handled by replacing the product or the affected part.
- Not covered: cutting, drilling, painting or refinishing, improper installation or clearances, water or freezing damage, shipping damage and labor.
