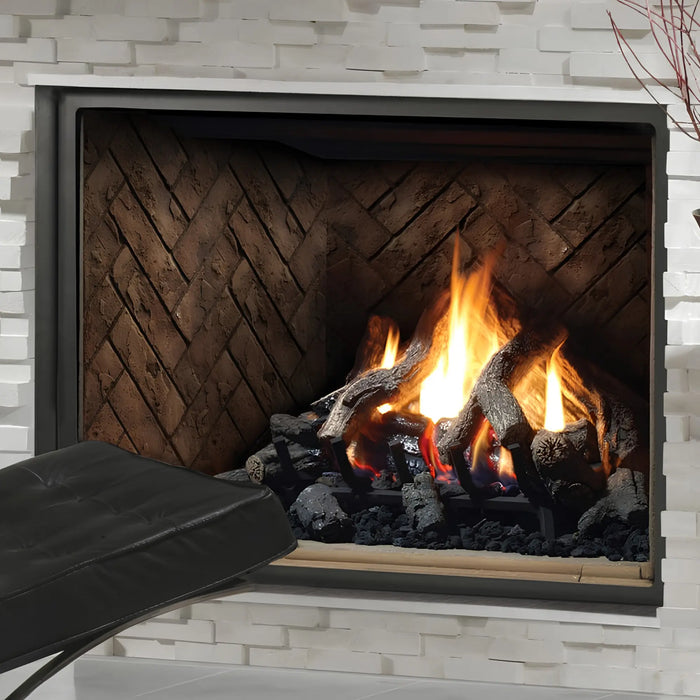

Kingsman 47" HBZDV4736 Zero Clearance Direct Vent Gas Fireplace
Kingsman 47" HBZDV4736 Zero Clearance Direct Vent Gas Fireplace, A gas direct vent fireplace is the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism.
Kingsman Zero Clearance Direct Vent Fireplaces are available in 36" HBZDV3624, 36" HBZDV3628, 42" HBZDV4224, 42" HBZDV4228, 47" HBZDV4736 models.
STANDARD FEATURES
Millivolt or IPI Valve System: Allows the zero clearance direct vent gas fireplace to operate during a power failure while providing convenient high-low heat and flame adjustment.
Dual Burner System: Produces a realistic flame pattern for an attractive and inviting fire.
Flame Sensor: Continuously monitors the pilot flame to support reliable and safe fireplace operation.
Safety Screen Barrier: Includes a safety screen barrier for added protection during fireplace operation.
*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
PRODUCT SPECIFICATIONS
Model
HBZDV4736N/NE
HBZDV4736LP/LPE
Fuel
Natural
Propane
Flue
Top
Top
Gas Control
Millivolt / IPI
Millivolt / IPI
Input Max.
40,000 BTU
36,000 BTU
Input Min.
27,000 BTU
30,000 BTU
FE (p.4.1-02)%
60.39% / 61.88%
53.79% / 54.9%
Flue Sizes
4/7"
4/7"
Glass Size
41 13/16"W x 28 11/16" H
41 13/16"W x 28 11/16" H
Glass Type
Tempered
Tempered
Size (WxHxD)
47 1/16"W x 43 1/16"H x 19 7/16"D
47 1/16"W x 43 1/16"H x 19 7/16"D
Viewing Area
39 1/2 x 26 3/8"
39 1/2 x 26 3/8"
Venting
4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent
Electronic Ignition
Yes
Yes
Certification
Heater
Heater
Bedroom Approved
Yes
Yes
OPTIONAL ACCESSORIES
Designer Clean View Circulating Kit
No louvers required
Grills
Available in Black
Fan Kit
Heat activated with variable speed control
Brick Refractory Liner
Traditional brick, herringbone brick or porcelain reflective
Thermostat
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
Wall Mount Battery Holder (WMBH) :
The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.
What to Order
The HBZDV4736 is sold as the fireplace only. Kingsman requires a log set and a front (Designer Clean View kit or grill kit) on every unit; venting is ordered separately.
