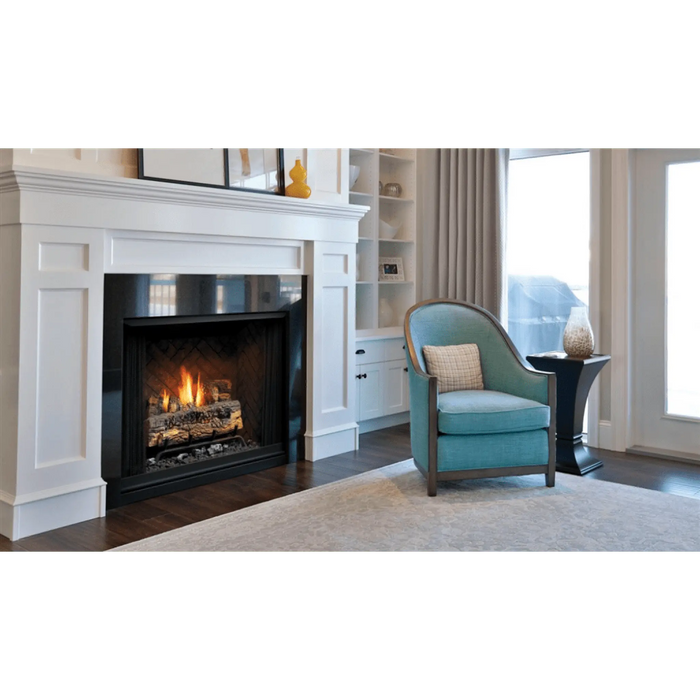

Kingsman 42" ZVFCV42 Zero Clearance Clean View Circulating Universal Vent Free Firebox, the ultimate in Zero Clearance Vent-Free Fireplaces for new home construction or renovation, and your most suitable option for installation anywhere throughout your home.
The Kingsman Zero Clearance Clean View Circulating Universal Vent Free Firebox comes in a 42-inch box. This firebox requires the utilization of a manual or a remote-ready GLVF24 burner assembly. You can choose the LOGF18 or LOGF24 fiber log assembly. For your peace of mind, this fireplace has an ODS, or Oxygen Depletion Sensor, to consistently monitor the air in the room and automatically shut the gas off if the oxygen levels in the room drop below safe levels. Another great feature of this firebox is the black heat deflector. This canopy hood protects any items placed above the firebox from heat.
Play video
STANDARD FEATURES
- Color: Black
- Size: 42 Inch
- Vent Type: Vent Free
- Fireplace Type: Standard Firebox
- Decorative pull screens included
- Burners use matchless piezo ignition system
- Fuel Type Options: Natural Gas, Propane Gas
- Standard wall switch control for millivolt burners
- Uses either LOGF18 or LOGF24 fiber log assemblies
- Black heat deflector canopy hood protects mantels and wooden shelves
- Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
- Must be completed with manual or remote ready GLVF24 burner assemblies
- ODS sensor monitors room air and provides gas shut off if oxygen is below acceptable levels
* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.
Technical Specifications
- BTU Input Ratings: 38,250 NG / 38,000 LP
- Framing Dimensions: 42 1/2" W 40 3/8" H and 20 5/16" D
- Overall Unit Dimensions: 42 7/16" W 40 5/16" H and 20 3/16" D
- Firebox opening dimensions: 33 7/8" FW 26 7/8" BW 29 1/8" H and 15 1/2" D
DIMENSIONS
OPTIONAL ACCESSORIES
Fan Kit
Blower with variable speed control
Surrounds
ZCV42S1BL – Hearth Mount 4” Wide
Coverage: 44 5/8” W x 38 1/8” H
ZCV42S1PFBL – Picture Frame 4” Wide
Coverage: 44 5/8” W x 40 1/8” H
ZCV42S2PFBL – Surround – Picture Frame 1 5/8” Wide
Coverage: 40 1/8” W x 35 5/8” H
Thermostat (Millivolt)
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control (Millivolt)
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
Brick Liners
ZVFCV39/42 Brick Options
Refractory Fiber Brick Liner (3 PCE) – Traditional, Herringbone, Stacked Brick
What to Order
The ZVFCV42 is the firebox only. Kingsman requires a 24" vent-free burner and a log set on every unit. It’s vent-free, so no venting is needed.
Required: burner (choose fuel and valve)
Required: log set
Options
Surrounds (optional)
Thermostats (optional)
Remote controls (millivolt burner) (optional)
