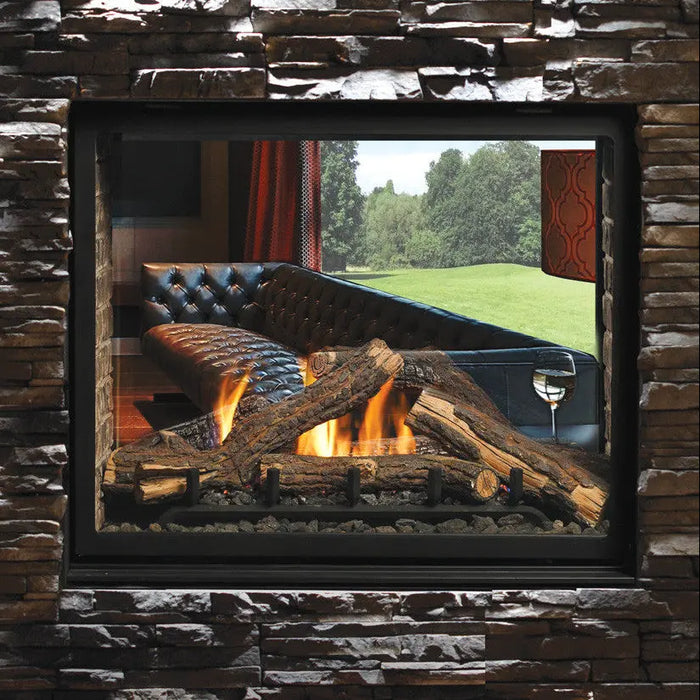

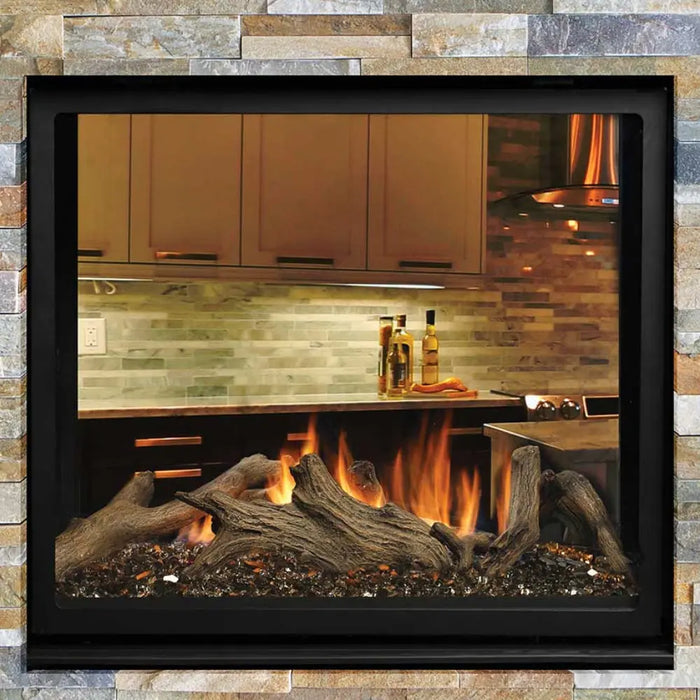

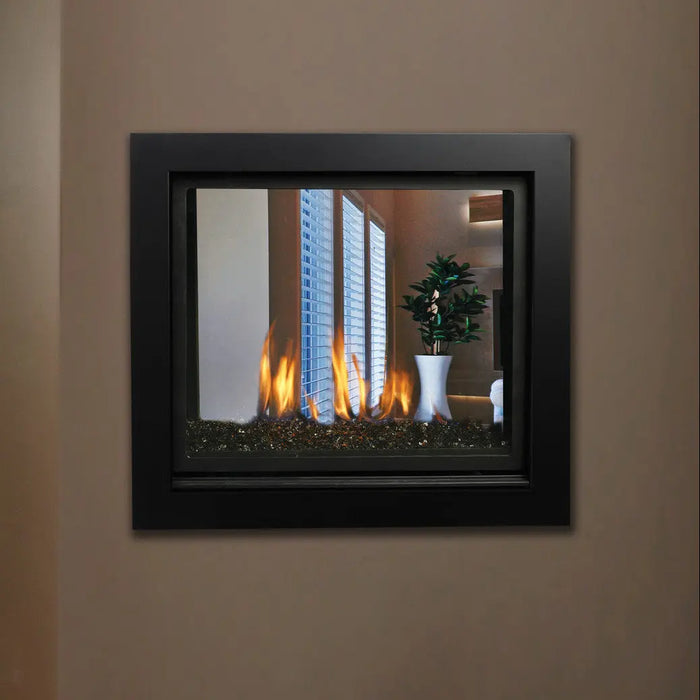

Kingsman 43" MCVST42 Zero Clearance Direct Vent See-Through Gas Fireplace

Make the most of the best view in the house with our line of Kingsman 43" MCVST42 Zero Clearance Direct Vent See-Through Gas Fireplace. Ideally suited for new construction or renovations anywhere in your home.

This Kingsman Clean View Direct Vent See-Through Gas Fireplace, with its low profile double-sided chassis, is right for installation into either structural or partition walls, depending on your needs. This fireplace is a see-through fireplace, allowing it to be the main focus of more than one room of your home, and can use either a highly detailed 8-piece traditional log set or a more modern glass media set.

This fireplace can be customized in a variety of ways. In addition to fuel type, this unit can be ordered with a remote-ready millivolt ignition or an intermittent pilot ignition (IPI). This fireplace also can be purchased with a variety of interior liner options to further customize your appliance.

STANDARD FEATURES

• Color: Black
• Vent Type: Direct Vent
• Dedicated Clean View appliance
• Fireplace Type: See-Thru Fireplace
• Fuel Type: Natural Gas, Propane Gas
• ANSI/CSA listed for both USA and Canada
• Specific Use Options: Mobile Home Approved / Bedroom Approved
• Able to be equipped with a full line of remotes and wall switches
• Low profile fireplace frame allows for a clean looking installation
• Includes safety barrier screens to prevent accidental contact with hot glass
• Able to utilize either a detailed 8 piece log set or contemporary glass media
• Double sided chassis is ideal for installation into both structural and partition walls
• Reliable standing pilot valve system ensures ready operation during power outages
• Intermittent pilot system eliminates the need for a standing pilot and offers reliable spark ignition
• Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment

*Venting Requirements: This unit requires venting pipe with an inner diameter of 5 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

PRODUCT SPECIFICATION

DIMENSIONS

OPTIONAL ACCESSORIES

Fan Kit

Heat activated with variable speed control

Surrounds

Hearth Mount 4” Wide (Covers 44 5/8” W x 38 1/8” H)
Picture Frame 4” Wide (Covers 44 5/8” W x 40 1/8” H)
Picture Frame 1 5/8” Wide (Covers 40 1/8” W x 35 5/8” H)

Porcelain Reflective Liner

Brick Refractory Liner

Traditional

Glass Tray

For use with Bronze Glass Media, Cannonballs, and Driftwood Log Set

Accent Lighting

For use with the Glass Tray

Log Set

Oak (8 piece) Set, and Driftwood (6 Piece) Set

Thermostat

Wall Mount Millivolt Thermostat or Programmable Thermostat

Remote Control

Thermostat on/off, Thermostat on/off modulating, Thermostat on/off modulating and fan control

Wall Mount Battery Holder (WMBH) :

The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.

What to Order

The MCVST42 is sold as the fireplace only. Kingsman requires either the log grate with a log set, or the glass tray with glass media; venting is ordered separately.

Required: log grate and log set

• Log Grate (M42LG)
• Eight-Piece Oak Log Set (M42LOG4)
• Six-Piece Driftwood Log Set (M42LOG3)

Or: glass tray and media (up to 5 lb on the burner and 20 lb on the tray)

• Glass Tray (add glass media) (MST42GT)
• 1/2" Bronze Glass Media, 5 lb (ZG5C)
• Multi-Colored Cannonballs (RBCB1)
• Two-Lamp Accent Light Kit (ULK3) — with the glass tray

Options

• Refractory Fiber Brick Liner (2 PCE) - Traditional (MST42RLT)
• Porcelain Reflective Panel Liner (2 PCE) (MST42PL)
• Variable-Speed Fan Kit (Z46FK)
• Tile Lip Kit - (for Finishing Materials - tile, brick) (ZCV-TLK)

Surrounds (optional)

• Surround - Hearth Mount 4" Wide (Covers 44 5/8" W x 38 1/8" H) (ZCV42S1BL)
• Surround - Picture Frame 4" Wide (Covers 44 5/8" W x 40 1/8" H) (ZCV42S1PFBL)
• Surround - Picture Frame 1 5/8" Wide (Covers 40 1/8" W x 35 5/8" H) (ZCV42S2PFBL)

Thermostats (optional)

• Digital Wall Thermostat (Z2MT)
• Programmable Wall Thermostat (Z80PT)

Remote controls for millivolt models (N / LP) (optional)

• Remote, Thermostat (GTRC)
• Remote, Thermostat/Modulating (NG) (GTMRCN)
• Remote, Thermostat/Modulating (LP) (GTMRCP)
• Remote, Thermostat/Modulating/Fan (NG) (GTFRCN)
• Remote, Thermostat/Modulating/Fan (LP) (GTFRCP)

Remote controls for IPI models (NE / LPE) (optional)

• Remote, Thermostat (EGTRC)
• Remote, Thermostat/Modulating (NG) (EGTMRCN)
• Remote, Thermostat/Modulating (LP) (EGTMRCP)
• Remote, Thermostat/Modulating/Fan (NG) (EGTFRCN)
• Remote, Thermostat/Modulating/Fan (LP) (EGTFRCP)
• Wall-Mount Battery Backup Holder (WMBH)

Fuel conversion kit (only if converting between natural gas and propane)

• Conversion Kit - Millivolt - To Propane (42MST-CKLP)
• Conversion Kit - Millivolt - To Natural Gas (42MST-CKNG)
• Conversion Kit - IPI - To Propane (42MST-CKLPI)
• Conversion Kit - IPI - To Natural Gas (42MST-CKNGI)

Venting: 5"/8" direct vent (not included — your installer sizes the run per the manual)

• 5/8" Horizontal Vent Starter Kit (Z58HSK5)
• Flex Kit (5" & 8" Dia.) x 5' Expanded (c/w Springs, Screws, Mill Pac) (Z58FK5)
• Flex Kit (5" & 8" Dia.) x 8' Expanded (c/w Springs, Screws, Mill Pac) (Z58FK8)
• Flex Kit (5" & 8" Dia.) x 20' Expanded (c/w Springs, Screws, Mill Pac) (Z58FK20)
• Horizontal Round Vent Termination - 5/8 (Z58HT)
• Horizontal Wall Thimble (Z58WT)
• Vertical Vent Termination - 5/8 (Z58VT)
• Attic Insulation Shield - 24" (Z58AIS24)
• Firestop Spacer (Z58FS)
• Roof Support (Z58RS)
• Flashing 8" c/w Storm Collar (1/12 to7/12) (Z58AAF)
• Flashing 8" c/w Storm Collar (8/12 to 12/12) (Z58AF2)
• Flashing 8" c/w Storm Collar Flat (Z58AF3)
• Storm Collar 8 " (ZDV8SC)
• 5/8" Hard Pipe Adapter (Z58DFA)

Power venting (optional)

• Horizontal Power Vent, Exterior Mount (PVH58)
• Horizontal Power Vent, Flush Mount (PVH58FM)
• Power Vent Control Module - for Millivolt and Dexen Models (PVC58MV)
• Power Vent Control Module - for Proflame 1 - IPI Models (PVC58IPI)

Resources

• MCVST42 Installation & Owner's Manual (PDF)
• MCVST42 Brochure (PDF)
• Kingsman 2025 Product Guide (PDF)
