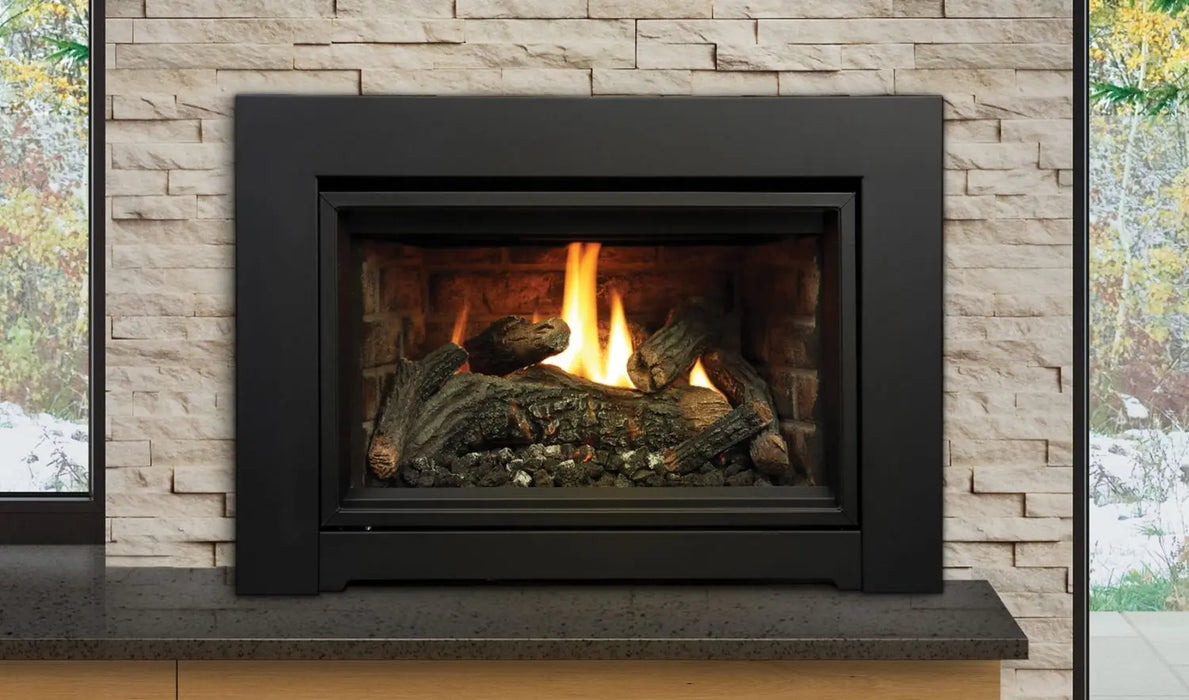

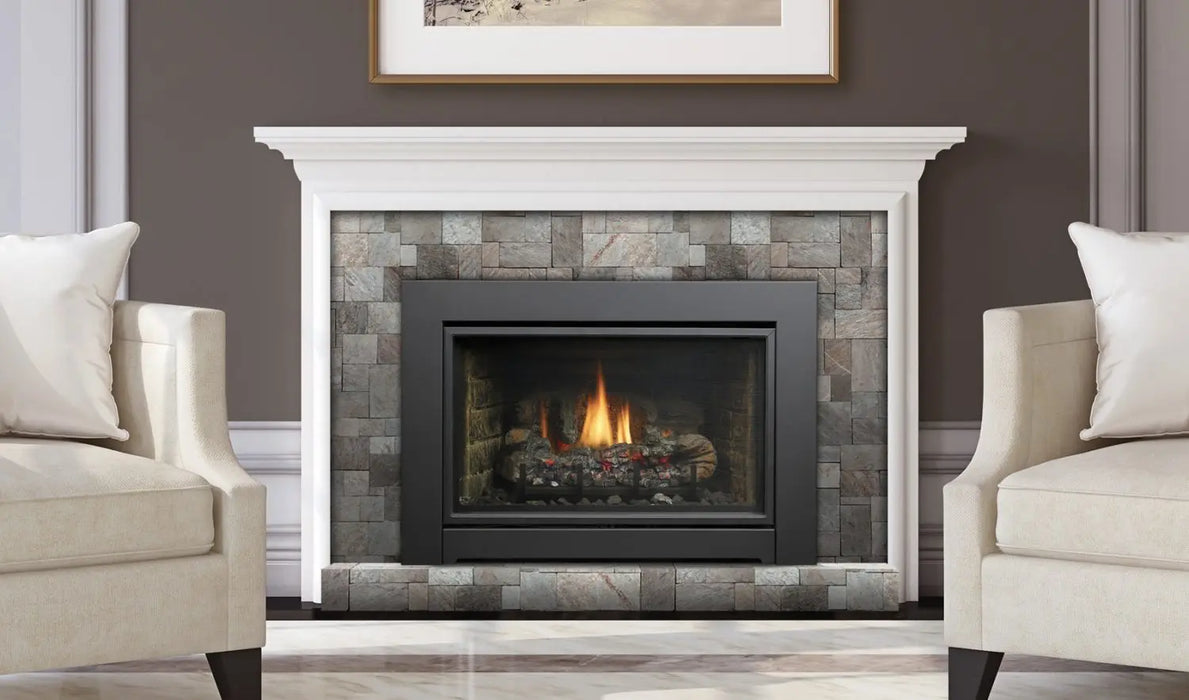

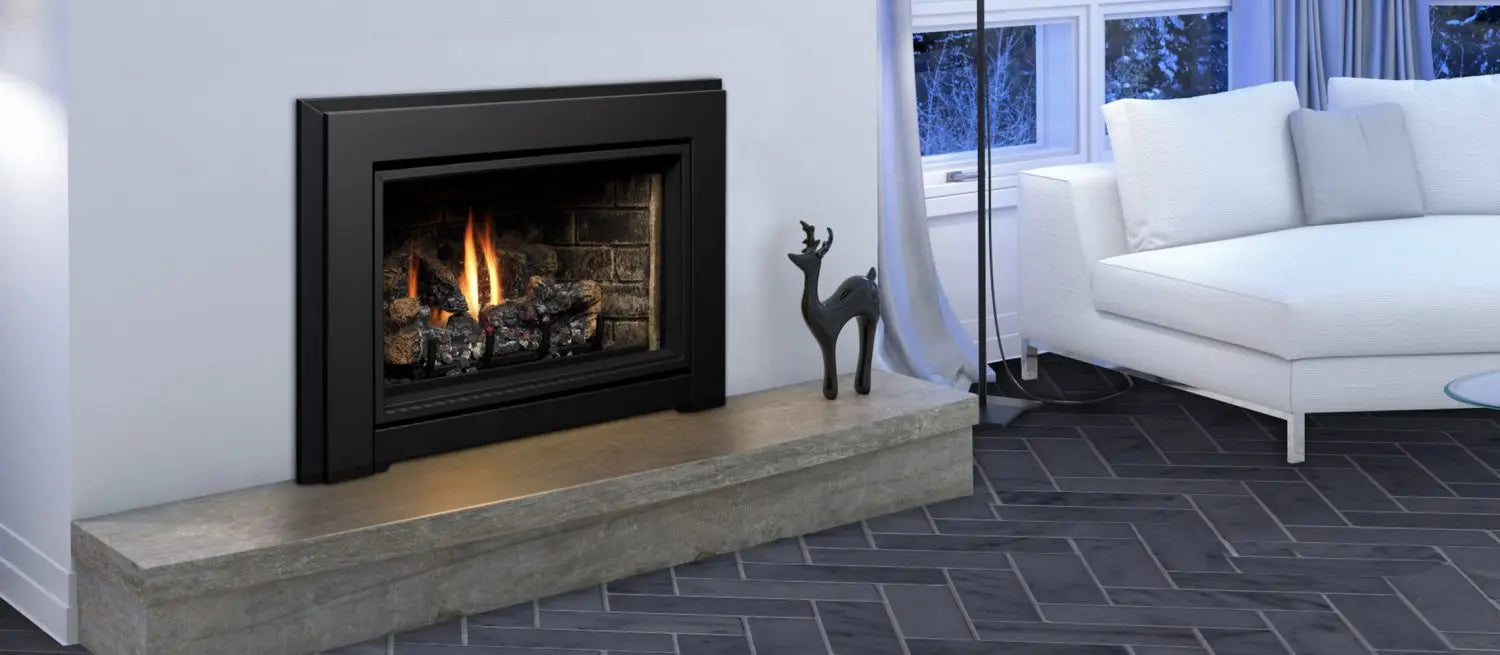

The Kingsman 24" IDV24 Direct Vent Gas Fireplace Insert delivers efficient warmth and realistic ambiance with a dual burner, glowing embers, and decorative ash bed. Heat-radiating ceramic glass enhances the flame view, while the adjustable flame control provides personalized comfort.
Available with Millivolt or IPI controls, this gas fireplace insert offers reliable operation, including during power failures. A variable-speed blower improves heat circulation, while Proflame II models add remote and smart thermostat functionality.
Features
-
24-Inch Direct Vent Gas Fireplace Insert – Compact fireplace insert design delivers efficient warmth and versatile styling for residential spaces.
-
Safety Screen Barrier – Provides an added layer of protection around the fireplace glass for safer everyday operation.
-
On/Off Rocker Switch – Conveniently control the fireplace with an easy-to-use integrated rocker switch.
-
Heat-Radiating Ceramic Glass – Ceramic fireplace glass efficiently radiates heat into the room while providing a clear view of the flames.
-
Variable-Speed Blower – Heat-activated blower with variable speed control helps distribute warm air throughout the living space.
-
Mobile Home & Bedroom Approved – Designed for approved installations in mobile homes, bedrooms, and sitting rooms.
-
Dual Burner System – Produces a realistic flame presentation with glowing embers and a decorative ash bed for enhanced fireplace ambiance.
-
Remote & Wall Switch Compatible – Supports a full range of fireplace remotes and wall switches for convenient control.
-

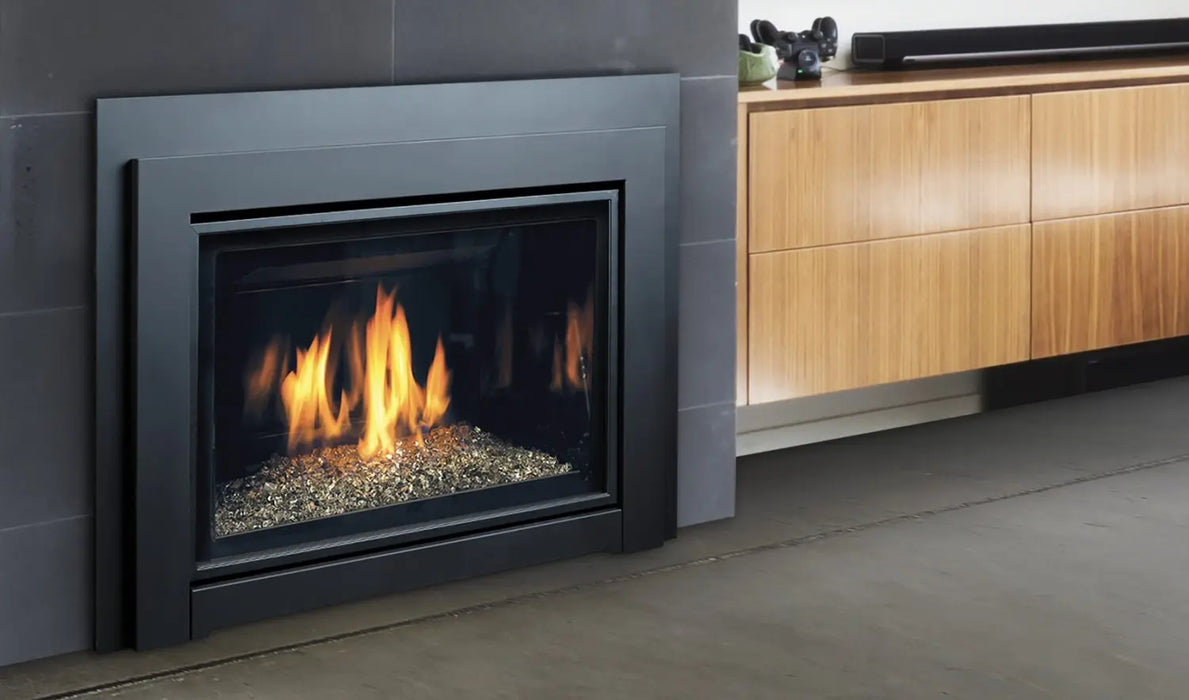

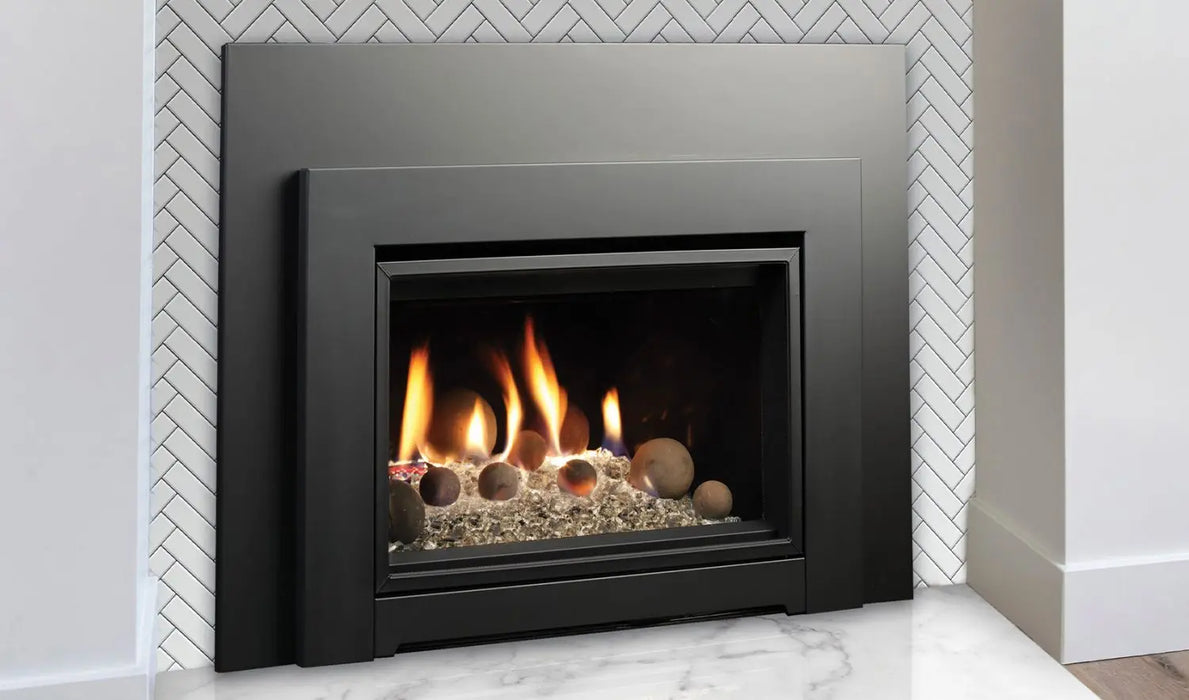

Versatile Media Options – Choose between a detailed split oak log set for a traditional appearance or contemporary glass media for a modern fireplace design.
-
Millivolt or IPI Valve System – Flexible gas control options allow operation during a power failure, with adjustable flame control for customized heat and ambiance.
Specification
| Specification |
IDV24LP / IDV24LPE / IDV24LPE2 |
IDV24N / IDV24NE / IDV24NE2 |
| Fuel |
Propane |
Natural Gas |
| Gas Control |
Millivolt / IPI |
Millivolt / IPI |
| Input – Maximum |
24,000 BTU |
24,000 BTU |
| Input – Minimum |
20,000 BTU |
16,750 BTU |
| FE (P.4.1-02) |
57.51% / 59.24% |
53.53% / 55.58% |
| Venting |
3/3" or 2/3" |
3/3" or 2/3" |
| Viewing Area |
20 13/16" W × 11" H |
20 13/16" W × 11" H |
| Certification |
Heater |
Heater |
| Minimum Fireplace Opening Width |
24 1/4" |
24 1/4" |
| Minimum Fireplace Opening Height |
18 1/2" |
18 1/2" |
| Minimum Fireplace Opening Depth |
14" |
14" |
| Power Vent |
— |
— |
Optional Accessories
Log Set
Fibre Split Oak
Glass Media
1/2" bronze glass (10 lb maximum) or cannonballs
Clean View Kit
Black
Surrounds for Clean View
Black
Surround Picture Frame for Clean View
Black
Brick Liner
Traditional
Wall Mount Thermostat
Standard On/Off or Programmable
Remote Control
On/Off, Thermostat On/Off, Thermostat On/Off modulating
What to Order
The IDV24 insert is sold without a front or fuel bed. Every install needs a log set or glass media, plus the Clean View front. Kingsman requires its own flex liner and termination.
Required: log set or glass media
Required: front
Surrounds (if the front doesn’t cover your opening)
Options
Venting: 3"/3" (Kingsman flex and termination only)
Or venting: 2"/3" (25 ft vertical limit)
Thermostats (optional)
Remote controls for millivolt and IPI models (optional; Proflame 2 “E2” models include a remote)
Harness (required with GTM / EGTM modulating remotes)
Fuel conversion kit (only if converting between natural gas and propane)
