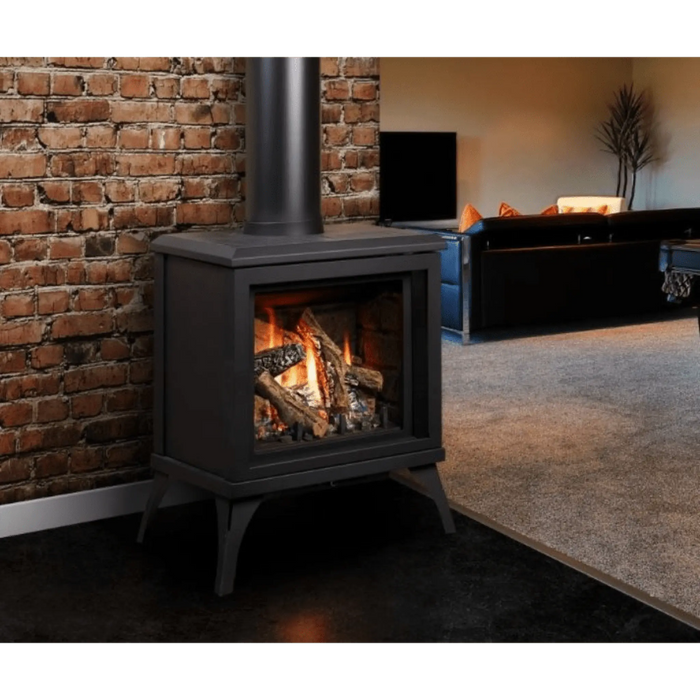

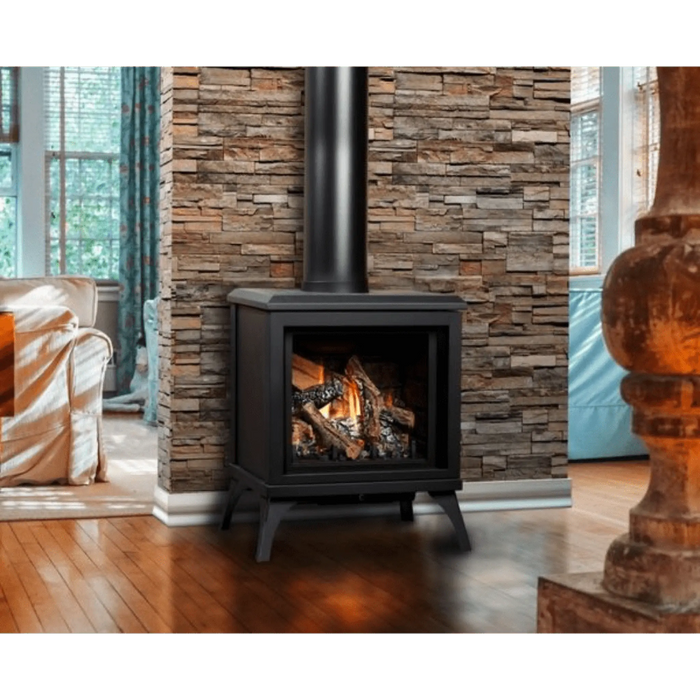

Kingsman 23" FDV200S Free Standing Direct Vent Gas Stove
- FREE SHIPPING : All Over United States/over $300
- NO SALES TAX : All USA Orders/except WI
- SPEAK TO AN EXPERT : Call 888-486-2909 or email at cs@dreamwoodliving.com
The FDV200S Direct Vent model provides sealed combustion which means that it draws outside air for combustion. This model are often vented either vertically or horizontally providing you with the ability to control where the unit is placed for the most efficient heat possible. Its Millivolt or IPI valve system allows operation during a power failure with Hi-Low heat and flame adjustment options so you'll be able to enjoy the view of your customizations. This unit also can be customized for convenience with options like remotes and digital thermostats.
Kingsman Direct Vent gas stove can be vented through the wall or up through your roof. This gas stove comes with a factory-installed fan, thermostatically controlled wireless remote control. you'll be able to use the remote to manage the speed of the fan and adjust the flame height. Also comes with a baby protection screen. Available in Natural gas or Liquid Propane.
Kingsman knows how to blow away the competition. That's why they created the Kingsman FDV200S Free Standing gas stove IPI Pilot. This dual burner system stove is a great addition to any living space, and therefore the added blower will help to keep you warm all winter long.
Kingsman Free Standing Direct Vent Gas Stove also available in FDV350 and FDV451 Models.
*Note: Components may have to be ordered separately to create a complete unit.
*Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section for available venting pipe and other venting components that must be used with this unit.
Model |
FDV200SLP/LPE/LPE2 |
FDV200SN/NE/NE2 |
Fuel | Propane | Natural |
Gas Control | Millivolt / IPI | Millivolt / IPI |
Input Max. | 26,000 BTU | 28,500 BTU |
Input Min. | 20,000 BTU | 19,500 BTU |
FE (p.4.1-02)% | 67.47% / 69.89% |
66.14% / 68.56% |
Size (WxHxD) |
23 13/32" x 30 9/16" x 18 19/32" |
23 13/32" x 30 9/16" x 18 19/32" |
Glass Type | Ceramic | Ceramic |
Certification | Heater | Heater |
Bedroom Approved |
Yes | Yes |
Log Set

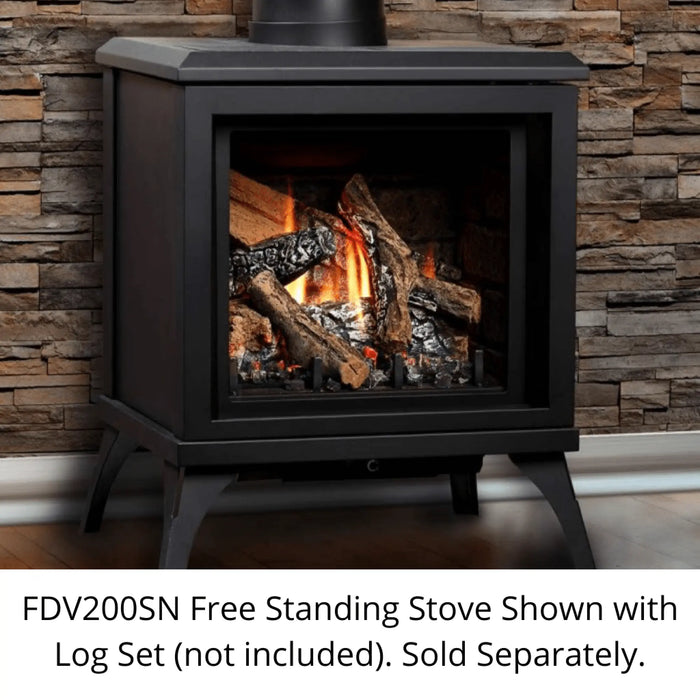

Five Piece Cast Split Oak Log Set (LOGC200) The Kingsman Five Piece Cast Split Oak Log Set for free Standing Direct Vent Gas Stoves could be a stunning piece of artwork. The five-piece log set is crafted into a split oak appearance, which lends to its traditional design.
|
Conversion Kit
Conversion Kit to Propane Millivolt (200DV-CKLP)
Conversion Kit to Natural Gas Millivolt (200DV-CKNG)
Conversion Kit to Propane Proflame 1 (200DV-CKLPI)
Conversion Kit to Natural Gas Proflame 1 (200DV-CKNGI)
Conversion Kit to Propane Proflame 2 (200DV-CKLP2)
Conversion Kit to Natural Gas Proflame 2 (200DV-CKNG2)
|
Fan Kit
Speed Control Temperature Sensing Fan Kit (F45FK) This Kingsman Variable Speed Temperature Sensing Fan Kit is a handy addition to your free-standing stove. With the thermal switch control, this fan can automatically turn itself on and off in reaction to the heat levels of your living space.
|
Refractory Liner

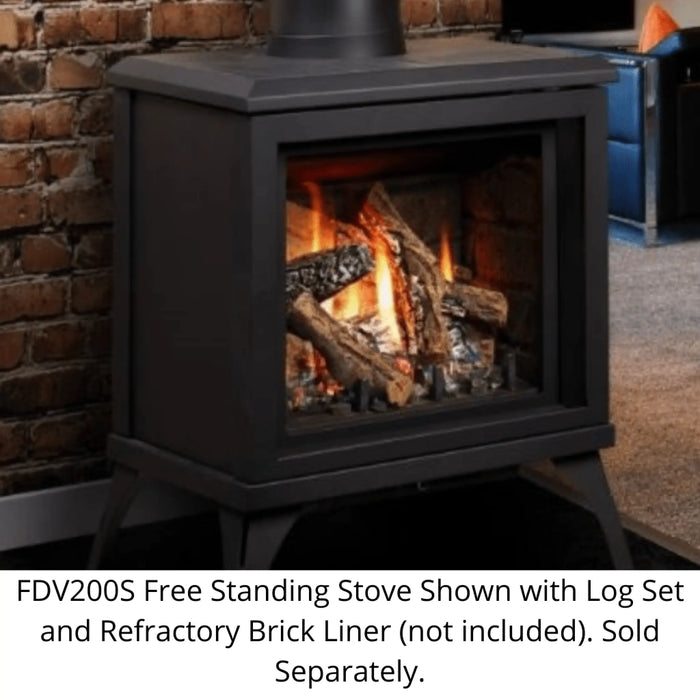

Refractory Liner (FDV200RL) The Kingsman Refractory Liner for Free Standing Direct Vent Gas Stove Stoves is a great addition to the Kingsman stove. This liner comes in three pieces and fits FDV200S stove like a glove. While it's an optional accessory, if you're trying to find a far better flame appearance then you would like this liner.
|
Thermostat
Wall Mount Thermostat- For Millivolt Units (Z2MT)
Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)
|
On/Off Remote Control for Millivolt/IPI Units (GFRC)
|
|
Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)
|
|
Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
|
Horizontal Vent Starter Kit - FDVHSK |
|
This starter kit has all the right pieces necessary to supply adequate ventilation to a direct vent stove. | |
Vertical Vent Starter Kit - FDVVSK | |
Vertical Vent Starter Kit for Direct Vent Stoves is that the right accompaniment to anyone's direct vent stove. This vertical vent starter kit includes an attic insulation shield, fire stop, a ceiling trim plate, a black trim ring, roof support, 6 spacer springs, and mill pac. | |
Dura-Vent Stove Adapter - ZDVDKA | |
Dura-vent stove adapter is used specifically with direct vent stoves and allows the ventilation to exceed expectations when comparing them to other vents. | |
Direct Vent 45-Degree Termination Kits - DVKVP45, DVK45LP, DVK45NAT | |
Direct vent cast iron gas stove can be a challenge to vent if you don't have the right equipment. If you're planning to vent it horizontally & vertically, these Direct Vent Termination Kits is exactly what you need to take the mystery out of the venting process. | |
45-Degree DirectVent Pro Elbow - 46DVA-E45, 46DVA-E45B | |
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black. | |
90-Degree DirectVent Pro Elbow - 46DVA-E90B, 46DVA-E90 |
|
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black. | |
17" DirectVent Pro Elbow Strap - 46DVA-ES | |
DirectVent Pro Elbow Strap Use for supporting vent pipe between offsets. | |
4"x6.625" DirectVent Pro Pipe Length | |
Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black. |
|
4"x6.625" DirectVent Pro Pipe Extension | |
Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Available in black or galvalume exterior. |
|
4"x6.625" DirectVent Pro Adjustable Pipe | |
Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior. | |
DirectVent Pro Wall Strap - 46DVA-WS | |
Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs. | |
DirectVent Pro Ceiling Firestop - 46DVA-FS | |
Required for multi-story vertical installations on the second floor and any subsequent floors. | |
DirectVent Pro Decorative Cover - 46DVA-DC |
|
Use as a decorative cover for horizontal (through-wall) installations Fits over the Wall Thimble faceplate. Also used to cover a Ceiling Support Box. | |
DirectVent Pro Attic Insulation Shield - 46DVA-IS | |
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles. |
|
14" DirectVent Pro Cathedral Ceiling Support Box - 46DVA-CS | |
Use to pass through ceiling and support pipe. May be used on vaulted or flat ceilings. Painted black. Trim and clamp included. | |
DirectVent Pro Flat Roof Flashing - 46DVA-FF | |
Use to weatherproof the penetration of vent pipe through the roof. Use on flat roofs, chase enclosures, or masonry chimneys. Storm Collar required. Made of galvalume. | |
DirectVent Pro Adjustable Roof Flashing - 46DVA-F6 | |
Use to weatherproof the penetration of vent pipe through the roof. Select roof flashing based on pitch of the roof. For pitches of 0/12 - 6/12. Storm Collar required. Made of galvalume. | |
DirectVent Pro Steep Roof Flashing - 46DVA-F12 | |
Use to weatherproof the penetration of vent pipe through the roof. Storm Collar required. Made of galvalume. | |
DirectVent Pro Dead Soft Aluminum Flashings - 46DVA-F6DS | |
Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Use with metal or tile roofs. | |
DirectVent Pro Storm Collar - 46DVA-SC | |
Use to maintain a weather tight resistant seal between the pipe and the flashing. | |
DirectVent Pro High-Wind Termination Cap - 46DVA-VCH | |
Available in aluminum. Use for vertical terminations only. For vertical terminations only. Provides improved performance in high wind conditions. | |
DirectVent Pro Low-Profile Termination Cap - 46DVA-VC | |
Available in aluminum and stainless steel (S). Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance. | |
DirectVent Pro Wall Thimble - 46DVA-WT | |
Use with Square Horizontal Cap only. Provides a complete wall-pass-through and firestop. Refer to the appliance manufacturer’s installation instructions for requirements. |
|
DirectVent Pro Square Horizontal Termination Cap - 46DVA-HC | |
Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C). | |
DirectVent Pro Round Horizontal Termination Cap - 46DVA-HRCS | |
Use for through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Finish: aluminum. |
|
DirectVent Pro Snorkel Termination Cap - 46DVA-SNK14 / 36 | |
Use for horizontal through-the-wall termination when a vertical rise is desired in the system to meet the appliance manufacturer's recommended minimum heights. Do not enclose in the wall or install below grade. | |
DirectVent Pro Sconce Termination Cap - 46DVA-HSC | |
Use for horizontal through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C). |
|
DirectVent Pro Square Horizontal H2 Termination Cap - 46DVA-H2 | |
Use for standard and high-wind through-the-wall termination. Provides improved performance in high wind conditions. Adjustable air intake and interchangeable shroud. | |
DirectVent Pro High-Wind Sconce Termination Cap - 46DVA-HSCH | |
Use for horizontal through-the-wall termination. Provides improved performance in high wind conditions. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C). |
|
DirectVent Pro Snorkel H2 Termination Cap - 46DVA-H2-SNK14 | |
Use for horizontal through-the-wall termination when a vertical rise is desired in the system to meet the appliance manufacturer's recommended minimum heights. |
