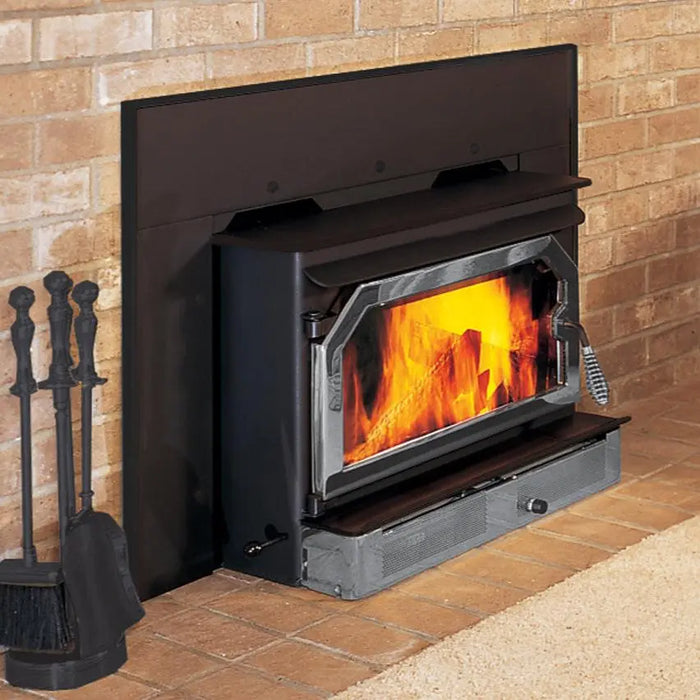

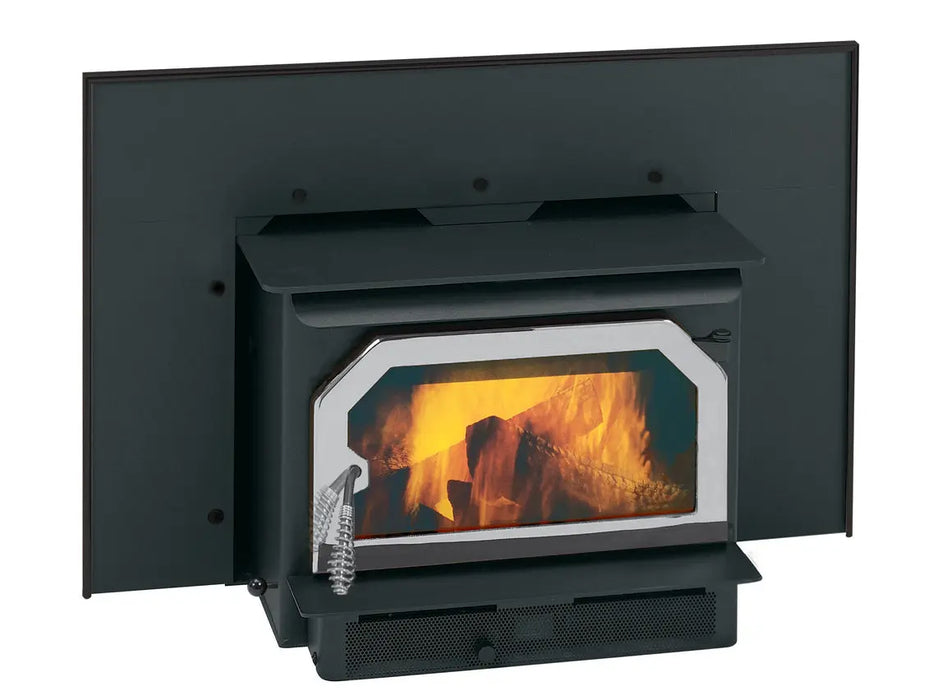

The Ironstrike Performer C210 Wood-Burning Fireplace Insert offers the ultimate in clean-burning, reliable heat to warm your home and your family. Choose model C210AGLS with the arched door (order number F5068) or model C210TGLS with the traditional door (order number F5069). Premium-grade materials, quality craftsmanship, and sophisticated technology ensure that every Cottage Collection insert will provide you and your family a lifetime of warmth. Each insert is customizable with an array of options to fit your needs.
Key Features
Spacious firebox accepts logs up to 19".
Up to 76,000 BTU/hour; heats approximately 1,200-2,000 square feet.*
Black painted finish with nickel nameplate.
Ceramic glass for extra strength and optimum heat transfer.
Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
High-density firebrick retains heat longer, resulting in increased efficiency.
One-touch control ensures easy operation and comfort.
EPA-certified at 1.5 g/hr and Washington State-approved for clean and efficient operation.
Limited Lifetime Warranty.
*Square-feet heating capacities and burn times are approximations only. Actual performance may vary depending upon home design and insulation, ceiling heights, climate, condition and type of wood used, appliance location, burn rate, accessories chosen, chimney installation and how the appliance is operated.
What to Order With It
Surround panels are required. Pick one overall size to cover your fireplace opening; each two-piece size needs both its top surround and its side surrounds.
Required surround panels, 26-1/2" x 40" overall size (choose the two-piece set or the one-piece panel):
2.0 cu. ft. per the spec sheet (listed as 2.1 cu. ft. in the price book)
Maximum Log Length
19"
Maximum Burn Time
7-9 hours*
Emissions
1.5 g/hr (EPA certified, 2020 standard)
Tested Efficiency
72.9% HHV / 78.8% LHV
Flue Size
6"
Chimney Liner
6" stainless steel listed reline system
Blower
Optional 160 CFM thermally activated blower in black, nickel or brushed nickel, sold separately
Approved Installations
Masonry fireplaces only
Listing
UL 1482 (PFS TECO)
Collection
Cottage Collection
Shipping Weight
426 lb. (C210AGLS), 427 lb. (C210TGLS)
Warranty
Limited Lifetime Warranty
Minimum Fireplace Opening
The Performer C210 is listed for masonry fireplaces only. The installation manual states it must not be installed in a factory-built (zero-clearance) fireplace.
Minimum Width
26"
Minimum Height
19-1/4"
Minimum Depth
12-1/2"
Maximum Lintel Depth
4-1/2" (without an adjustable offset box or smoke deflector)
Clearances to Combustibles
Clearance
Standard
With optional mantel and/or side shields
Insert Top to Combustible Mantel
24"
16"
Insert Top to Top Facing or Trim
18"
10"
Insert Side to Side Wall
18"
18"
Insert Side to Side Facing
15"
8"
Minimum Mantel Height from Base of Insert
42-1/8"
34-1/8"
Maximum Mantel Depth
9"
9"
Hearth Protection in Front of Insert
18"
18"
Hearth Protection to Each Side of Door Opening
8"
8"
US clearances. The hearth protector must be a noncombustible material with a thermal rating of k = 0.84 or equivalent, at least 3/8" thick. Follow the installation manual and your local code.
Covered by the IronStrike Wood Burning Stove and Insert Limited Lifetime Warranty for the original owner. The insert body and firebox carry the Limited Lifetime Warranty, and the ceramic glass is covered against thermal breakage. Other parts carry shorter terms, including electrical components such as blowers (one year), gaskets (one year) and removable air tubes (seven years). The full warranty, with its exclusions and limitations, is printed at the back of the installation and operation manual.
