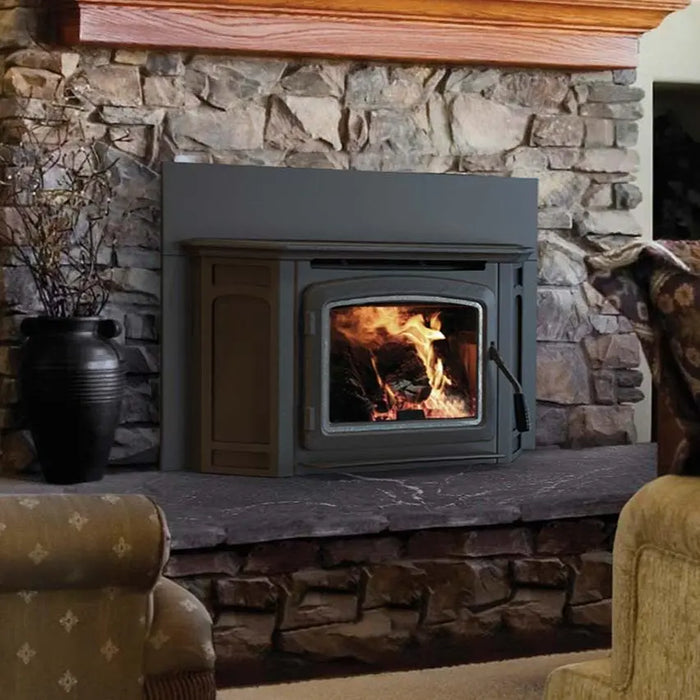

Ironstrike Montlake 230 Wood-Burning Fireplace Insert with Blower
As elegant as it is efficient, the Ironstrike Montlake 230 Wood-Burning Fireplace Insert (model ML230GL, order number F3832) comes with a 150 CFM variable-speed blower as standard equipment. Like its Lodge Collection siblings, it has raised the standard for home heating with proven Thermal Fin Technology (TFT™), a cast-iron heat exchanger that delivers the perfect amount of heat.
Expansive, durable ceramic glass gives you unobstructed views of the fire and allows for easy heat transfer. A wide array of high-quality, versatile styling options means the Montlake 230 will easily complement any décor.
Key Features
Blower included: a standard 150 CFM variable-speed blower ships with the insert and quickly moves heat into your room, with manual or automatic (heat-activated) operation. There is no separate blower kit to buy.
Firebox accepts logs up to 18" long (16" W x 18" D maximum).
Up to 76,000 BTU/hour; heats approximately 1,200-2,200 square feet.*
Thermal Fin heat exchanger creates 32% more surface area than a standard insert design resulting in more heat entering the room.
Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
Tall opening provides an expansive view of the burning fire.
Ceramic glass for extra strength and optimum heat transfer.
Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
High-density firebrick retains heat longer, resulting in increased efficiency.
One-touch control ensures easy operation and comfort.
Burn times up to 8 hours on a full load.*
EPA-certified at 1.7 g/hr and Washington State-approved for clean and efficient operation.
Limited Lifetime Warranty.
*Square-feet heating capacities and burn times are approximations only. Actual performance may vary depending upon home design and insulation, ceiling heights, climate, condition and type of wood used, appliance location, burn rate, accessories chosen, chimney installation and how the appliance is operated.
What to Order With It
The blower is already included. To complete the insert, order one top and one surround panel kit sized to your fireplace opening.
Included as standard: 150 CFM, variable speed, manual or automatic operation
Maximum Output
76,000 BTU/hr
Heating Capacity
1,200-2,200 sq. ft.*
Firebox
17" W x 19" D x 12-1/2" H
Firebox Volume
2.3 cu. ft.
Maximum Log Size
16" W x 18" D
Glass Viewing Area
16-1/2" W x 11-5/16" H
Maximum Burn Time
8 hours*
Emissions
1.7 g/hr (EPA certified, 2020 standard)
Flue Size
6"
Chimney Liner
6" stainless steel liner from the insert to the top of the chimney
Electrical
120V, 60 Hz, 0.8 Amp (blower)
Approved Installations
Masonry fireplaces only; residential and manufactured home
Listing
UL 1482 (PFS TECO)
Collection
Lodge Collection
Shipping Weight
390 lb.
Warranty
Limited Lifetime Warranty
Insert Dimensions
Front Width
36-5/8"
Rear Width (rear taper width)
24-1/2" (22-1/2")
Front Height
21-3/4"
Rear Height
21-1/4"
Depth Into Fireplace
15-1/2"
Depth Onto Hearth
8-3/8"
Minimum Fireplace Opening
The Montlake 230 is listed for masonry fireplaces only. It must not be installed in a factory-built (zero-clearance) fireplace. Measure the front and the rear of the firebox before ordering.
Minimum Front Width
25"
Minimum Rear Width
22-1/2"
Minimum Height
21-1/2"
Minimum Depth
15-1/2"
Maximum Lintel Depth
5-3/8" (without an adjustable offset box or smoke deflector)
Clearances to Combustibles
Insert Top to Combustible Mantel
15" (14" if the mantel projects 8" or less)
Insert Top to Top Facing or Trim
13"
Insert Side to Side Wall
4"
Insert Side to Side Facing
1"
Maximum Mantel Depth
12"
Minimum Mantel Height from Base of Insert
36-3/4"
Hearth Extension in Front of Door Opening
16"
Floor Protection to Each Side of Door Opening
8"
US clearances. Hearth thermal protection depends on how far the hearth sits below the insert: 1-1/2" thick protection when the hearth is level with the bottom of the insert, 1/2" when it is 4-1/2" below, and none when it is 7-1/2" below. Follow the installation manual and your local code.
Covered by the IronStrike Wood Burning Stove and Insert Limited Lifetime Warranty for the original owner. The insert body and firebox carry the Limited Lifetime Warranty, and the ceramic glass is covered against thermal breakage. Other parts carry shorter terms, including electrical components such as blowers (one year), gaskets (one year) and removable air tubes (seven years). The full warranty, with its exclusions and limitations, is printed at the back of the installation and operation manual.
