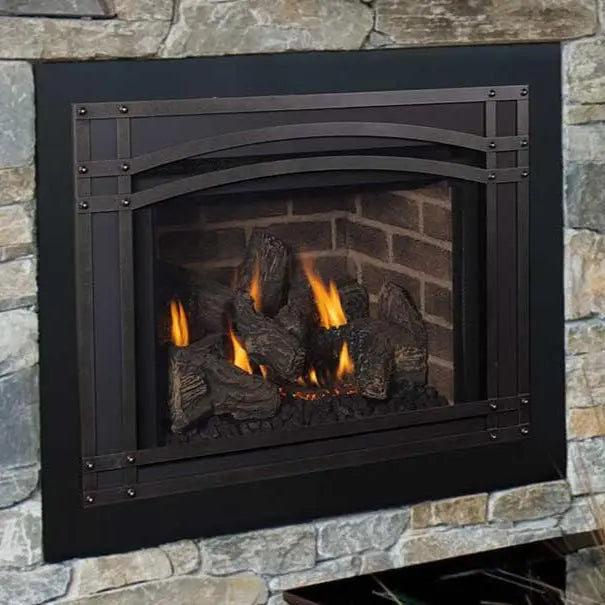

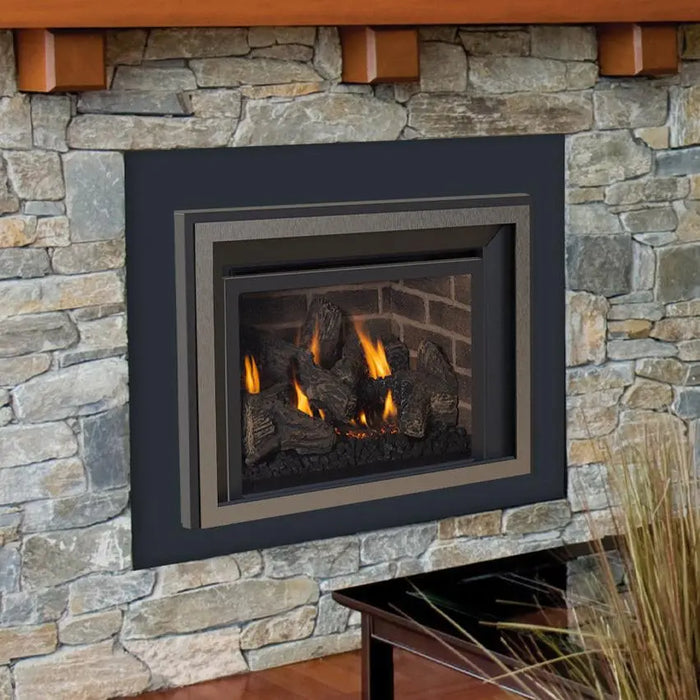

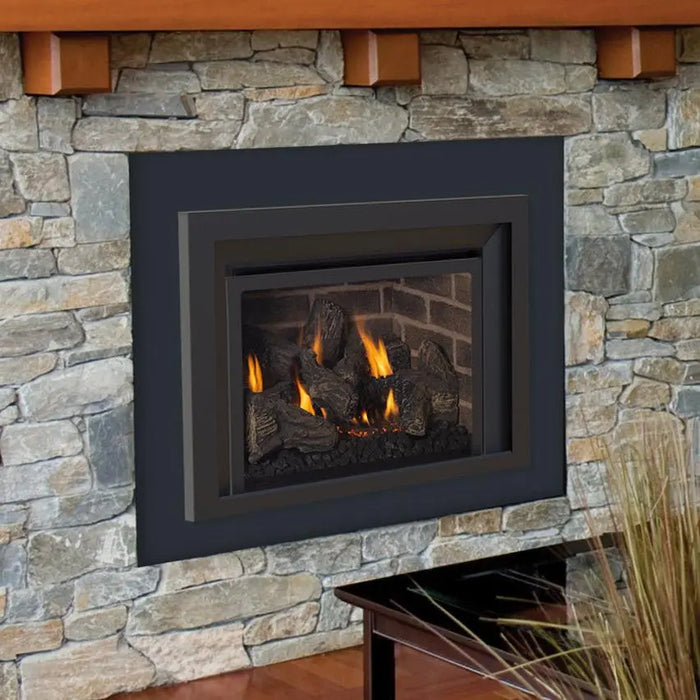

Ironstrike Madison Park 27 Direct Vent Gas Fireplace Insert with Blower
The Ironstrike Madison Park 27 Direct Vent Gas Fireplace Insert brings convenience and efficient heating to an existing wood-burning fireplace, and it comes with a 150 CFM variable-speed blower and a full-function remote as standard equipment. Choose the Traditional model MPI27-B with a log set (order number F4708) or the Contemporary model MPI27CD with crushed glass media (order number H9123).
Listed to fit zero-clearance factory-built and masonry fireplaces, the Madison Park gas insert turns your standard wood-burning fireplace into a cost-effective heat source that displays a realistic gas fire for brilliant warmth and ambiance.
Key Features
Blower included: a factory-installed 150 CFM variable-speed blower with six speed levels, controlled from the included remote. There is no separate blower kit to buy.
Full-function remote control included: switches between intermittent (IPI) and continuous (CPI) pilot modes and controls the thermostat, flame height and blower speed.
Electronic ignition system with battery backup still ignites and heats during a power outage (the blower needs household power).
Traditional model (MPI27-B) includes a high-definition ceramic fiber log set; Contemporary model (MPI27CD) includes reflective black crushed glass media.
Ceramic glass for optimum heat transfer and a protective screen*.
State-of-the-art burn technology provides the warm glowing appearance of an authentic fire.
Outstanding heating efficiency for increased comfort and lower operating costs.
Listed to fit masonry and factory-built (zero-clearance) solid-fuel fireplaces.
20 Year Limited Warranty.
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
What to Order With It
The blower, remote control and protective screen are already included. To complete the insert, order one façade, one liner kit and one surround.
Four AA batteries run the burner (not the blower) during a power outage
Venting
Two 3" flexible liners (co-linear); exhaust liner listed to UL 1777
Vent Height
10 ft. minimum, 25 ft. maximum, measured from the base of the insert
Electrical
120 VAC, 60 Hz, less than 2 Amps
Approved Installations
Masonry or factory-built solid-fuel fireplaces; manufactured homes where local code allows
Listing
ANSI Z21.88 vented gas fireplace heater; UL 307B (PFS TECO)
Shipping Weight
87.5 lb. (MPI27-B), 80 lb. (MPI27CD)
Warranty
20 Year Limited Warranty
Insert Dimensions
Front Width
26-5/8"
Rear Width
16-3/4"
Height
17-7/8"
Overall Depth
14-7/8"
Minimum Fireplace Opening
Minimum Front Opening Width
27"
Minimum Height
18"
Minimum Rear Width
17"
Minimum Depth
15"
The front opening width must be maintained to a 3" depth into the fireplace firebox.
Clearances to Combustibles
Mantel
32"
Maximum Mantel Depth
10"
Side Wall
4"
Hearth Extension in Front of Insert
10" when the hearth is level with the base of the insert; none when the insert base sits 4" above it
Hearth protection must be noncombustible, at least 1/2" thick. See the installation manual for the mantel measuring point and additional mantel options, and follow your local code.
Covered by the IronStrike 20 Year Limited Warranty for the original owner. The insert body, firebox and safety barrier carry the 20 Year Limited Warranty, and the ceramic glass is covered against thermal breakage. Other parts carry shorter terms, including the burner, gas components and gaskets (one year) and logs (one year, thermal breakage only). The full warranty, with its exclusions and limitations, is printed at the back of the installation and operation manual.
