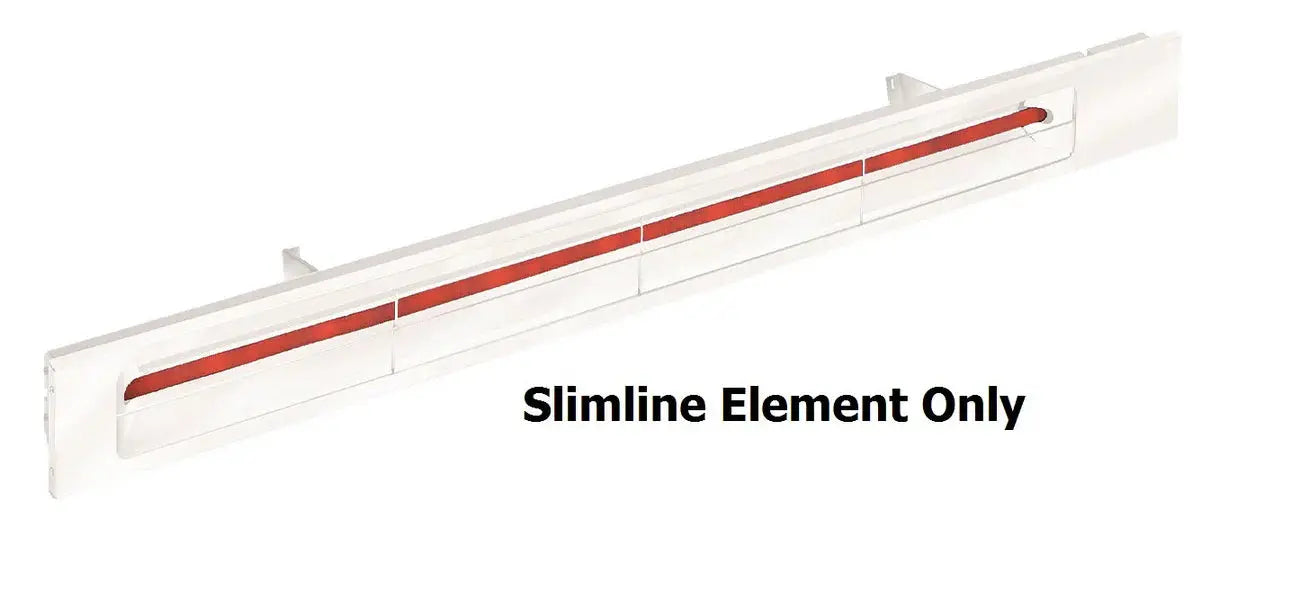

Infratech Comfort 22 3/8" 1600 Watt Replacement Quartz Element 208V
This 22-3/8" 1,600-watt quartz element replaces the heating tube in Infratech 208-volt heaters. It fits the SL-1628. Model number 10-7032.
Infratech rates its elements for 5,000 hours of use. Match the voltage exactly: a lower-voltage supply will warm the tube but will not make it glow or give enough heat.
Features
-
Exact fit: made by Infratech for the SL-1628.
-
208 volts: 1,600 watts, 22-3/8" long.
-
5,000-hour rating: Infratech's rated life for its quartz elements.
Fits These Heaters
Replacing the Element
Turn off the power and let the heater cool. Remove the end covers, release the element clips and set the new tube in place. Tighten the nuts with an 11/32" wrench while holding the inner nut, then refit the end covers and the grill. Infratech recommends a licensed electrician check the connections once a year.
Specifications
| Model number |
10-7032 |
| Wattage |
1,600 watts |
| Voltage |
208 volts |
| Length |
22-3/8" |
| Fits |
SL-1628 |
| Rated life |
5,000 hours |
Documents & Downloads
Warranty
Infratech's limited warranty covers manufacturer replacement parts for the original purchaser at the original installation site. It does not cover labor, and Infratech asks you to register the heater to activate the warranty. Using controls or accessories from other brands with Infratech heaters may void it. The full terms are in the Infratech manual linked above.
