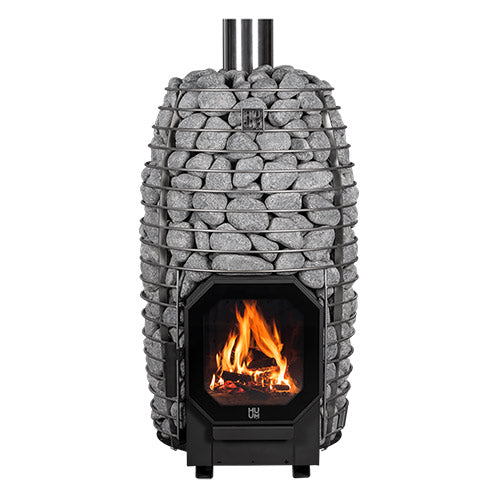

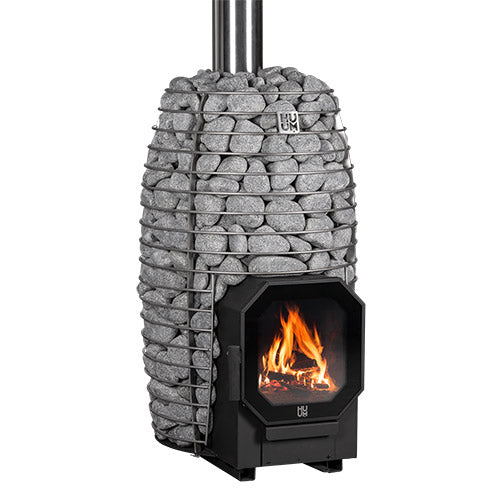

HUUM HIVE Flow Wood Burning Sauna Stove 9.8kW

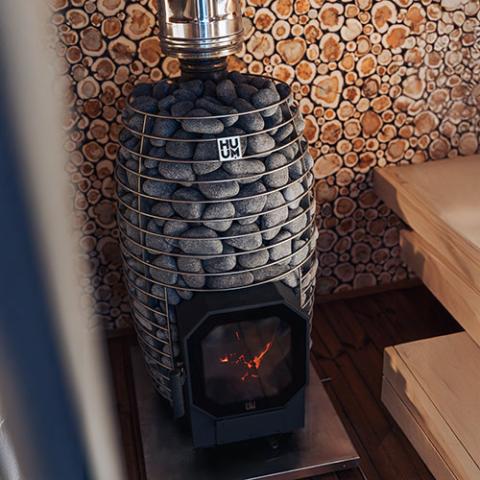

The HUUM HIVE Flow is one of the most efficient and environmentally sustainable wood-burning sauna stoves for sauna rooms from 282 to 635 cu. ft. Its furnace design puts about 75% of the heat from the firewood into the sauna instead of sending it up the chimney, and the 330 lb stone mass gives a mild, long-lasting steam. It is offered in two models: HIVE Flow (order no. H1015012) and HIVE Flow LS (order no. H1016012), which has a firebox extension that passes through the wall so the stove is fed from outside the sauna room.
The stove needs sauna stones and a chimney, both sold separately. See What to Order With It below.
Package Contents
- HUUM HIVE Flow sauna stove
- Metal grate
- Heat-resistant glove
- Splints
- Metal fixing plates (2)
- Ash grate
- Cleaning hatches (2)

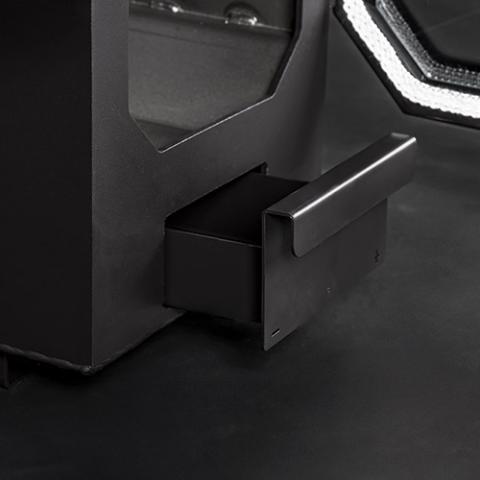

- Ash drawer
- Installation and operation manual
Key Features
-
Model / Order #: HIVE Flow / H1015012, HIVE Flow LS / H1016012
-
9.8 kW: For sauna rooms from 282 to 635 cu. ft.
-
330 lb Stone Capacity: Requires 10 boxes of stones, sold separately.
-

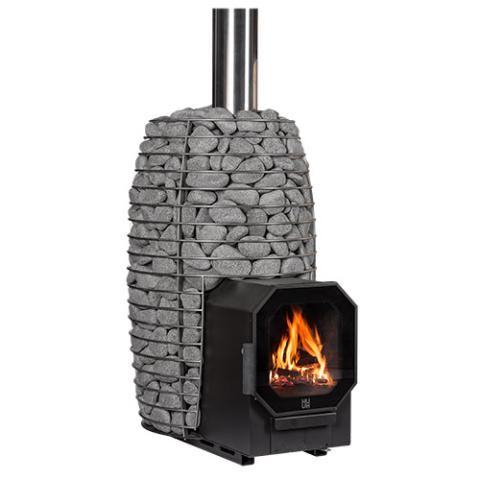

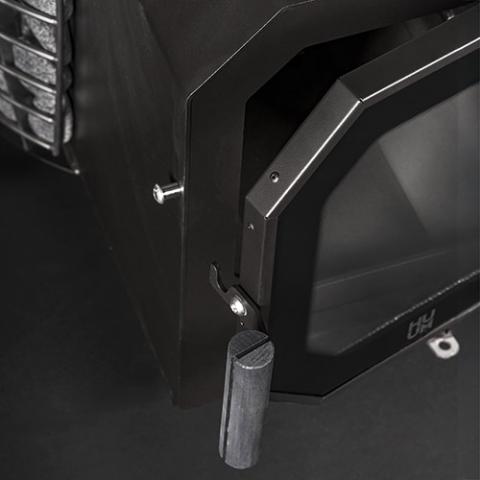

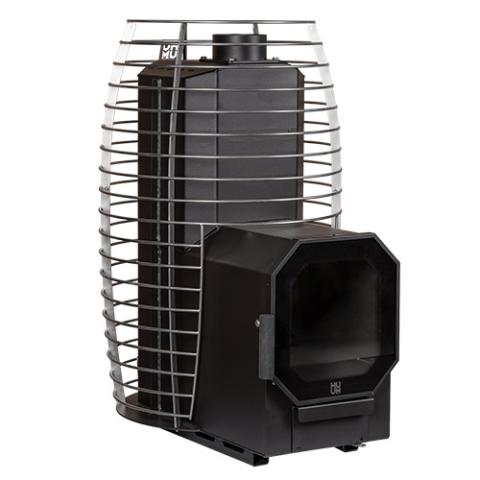

Firebox Extension (LS): The HIVE Flow LS is loaded through the wall from another room.
-
Wood-Burning: Heated only with firewood.
-
Efficient: About 75% of the heat from the firewood goes into the sauna instead of up the chimney.
-
Economical Wood Use: Small firewood loads with long burn times.
-
Low Environmental Impact: Clean-burning furnace; listed to BImSchV Stage 2.
-
Mild, Long-Lasting Steam: Large stone mass stores heat for a soft steam.
-
Furnace: Innovative, patent-pending furnace construction.
-

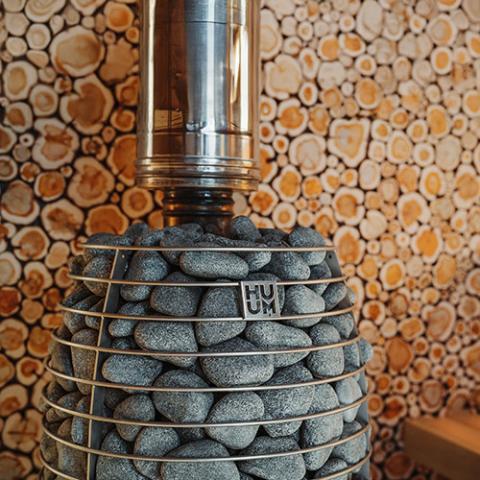

Top or Rear Flue: The chimney can be connected at the top or at the back of the stove.
-
Origin: Designed, engineered and made in Estonia.
What to Order With It
The stove ships without stones or a chimney.
Required (sauna stones, order 10 boxes):
Required (chimney):
- A chimney and flue system is required and is not included. HUUM chimney kits are not in the current US price list; your installer supplies a flue rated for the stove (see Specifications).
Optional:
Specifications
| Model |
HIVE Flow |
HIVE Flow LS |
| Order number |
H1015012 |
H1016012 |
| UPC |
4745090275285 |
4745090275292 |
| Nominal heating capacity |
9.8 kW |
9.8 kW |
| Sauna room size |
282-635 cu. ft. |
282-635 cu. ft. |
| Stone capacity |
330 lbs. (10 boxes) |
330 lbs. (10 boxes) |
| Maximum firewood length |
16 in (400 mm) |
16 in (400 mm) |
| Maximum ignition load |
11 lbs. (5 kg) |
11 lbs. (5 kg) |
| Gross efficiency |
74.9% |
74.9% |
| Average flue gas temperature |
642 F (339 C) |
642 F (339 C) |
| Stove weight (empty) |
148 lbs. |
161 lbs. |
-
Stove Type: Wood-burning sauna stove, floor-standing inside the sauna room
-
Fuel: Firewood only, hardwood or softwood, at 10-15% moisture; recommended log length 12 in (300 mm)
-
Stone Size: 2-4 in (5-10 cm)
-

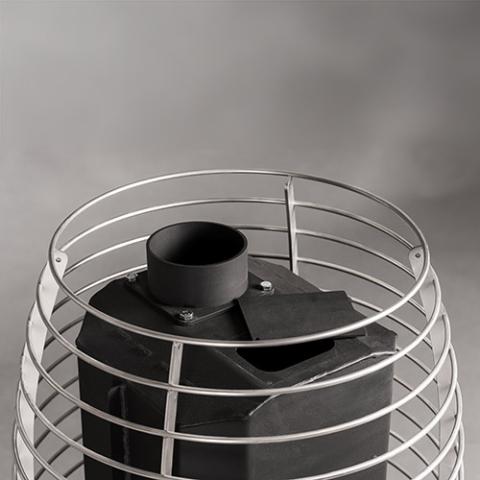

Chimney Connection: 4.5 in (114 mm) diameter, top or rear
-
Chimney: Temperature class T450 required; minimum cross section 16 sq. in. (10,400 sq. mm); flue draught 12 Pa
-

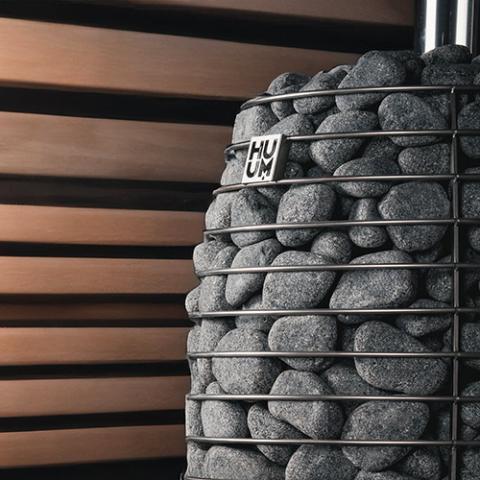

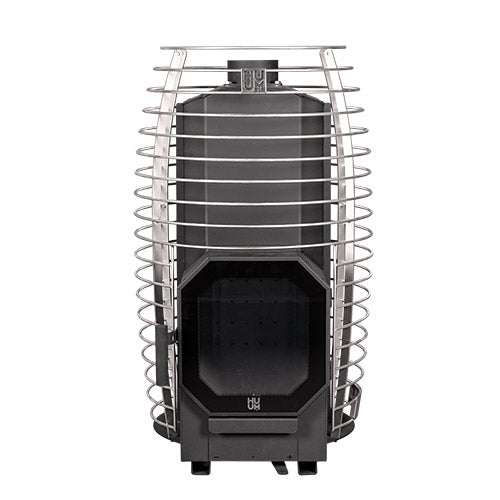

Construction: Steel stove body with a stainless steel stone cage
-
Standard: CE; EN 15821:2010; BImSchV Stage 2
-
Delivery: Ships by LTL freight.
-
Warranty: 3-year limited residential, 1-year limited commercial; door glass and stones not covered
Dimensions & Weight
-
HIVE Flow (W x D x H): 20.7" x 24.8" x 34.8" (526 x 630 x 884 mm)
-
HIVE Flow LS (W x D x H): 20.7" x 29.5" x 34.8" (526 x 750 x 884 mm)
-
Stove Weight (empty): HIVE Flow: 148 lbs. HIVE Flow LS: 161 lbs.
Installation Requirements
Minimum safety distances to combustible materials (letters refer to the diagram below):
| Model |
HIVE Flow |
HIVE Flow LS |
| A: stove to combustible surfaces at the sides and rear |
6 in (150 mm) |
6 in (150 mm) |
| B: in front of the stove door |
20 in (500 mm) |
20 in (500 mm) |
| C: clear width |
33 in (826 mm) |
33 in (826 mm) |
| Top of stove to ceiling |
40 in (1000 mm) |
40 in (1000 mm) |
LS model through the wall (minimum dimensions of the non-combustible wall and the opening; letters refer to the second diagram):
| Installation |
A |
B |
C |
D |
| Stove on the floor, without mounting collar |
26 in (650 mm) |
41 in (1050 mm) |
13 in (320 mm) |
19 in (470 mm) |
| Stove on the floor, with HUUM mounting collar |
26 in (650 mm) |
41 in (1050 mm) |
19 in (485 mm) |
22 in (560 mm) |
| Stove on protective bedding, with HUUM mounting collar |
26 in (650 mm) |
43 in (1100 mm) |
19 in (485 mm) |
24 in (615 mm) |
The non-combustible wall can be up to 6 in (150 mm) thick with a HUUM mounting collar and up to 4 in (100 mm) without one.
-
First burn outdoors: Before installation the stove must be heated outdoors at least once; the protective paint cures and gives off fumes during the first heating.
-
Floor: Install on a non-combustible floor with enough load-bearing capacity; a concrete floor at least 2 in (50 mm) thick is suitable. On a combustible floor, or over floor heating, HUUM protective bedding or another non-combustible base is mandatory, with a ventilation gap of at least 1.2 in (30 mm) under it.
-
Floor in front of the door: Protect combustible flooring with a sheet metal plate that extends at least 4 in (100 mm) beyond each side of the door opening and at least 15.75 in (400 mm) in front of the stove.
-
Non-combustible walls: Leave at least 2 in (50 mm) between the stove and a non-combustible wall.
-
Protective screens: A single non-combustible screen reduces the side and rear safety distances by 50%, a double screen by up to 75%; a single screen reduces the ceiling distance by 25%. Check local codes before reducing any distance.
-
Chimney connection: The connection to the flue must be made by a certified installer, using flue pipes approved by local fire and safety regulations.
-
Sauna room height: Minimum 75 in (1900 mm).
-
Uninsulated walls: For any uninsulated brick, tile or glass wall, add 3.3 cu. ft. to the room volume for each 1 sq. ft. of that wall before choosing a size.
-
Codes: Installation must follow local codes for wood-burning appliances.
Documents
Installation & Operation Manual (HIVE Flow, Flow LS, Flow Mini, Flow Mini LS)
Warranty
3-Year Limited Residential Warranty, 1-Year Limited Commercial Warranty: HUUM covers the HIVE Flow with a 3-year limited warranty in residential use and a 1-year limited warranty in commercial use. Door glass and sauna stones are not covered. The warranty applies only when the stove is installed and used according to the manual; damage from overheating, or from a stove that is too small or too large for the sauna room, is not covered.
