HPC 24" Linear Trough Torpedo Pan Match Lit Fire Pit Insert

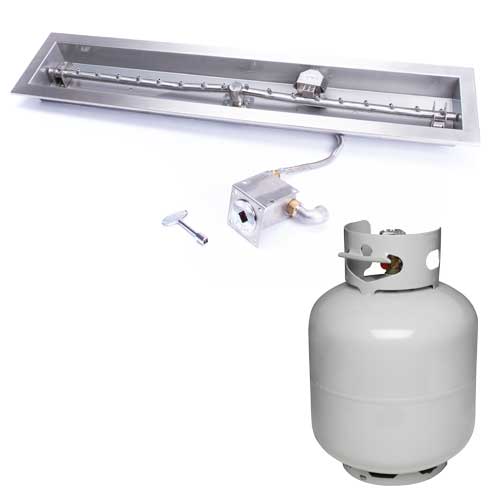

Transform your outdoor living space with the HPC 24" Linear Trough Torpedo Pan Match Lit Fire Pit Insert, a commercial-grade fire pit insert designed to create a clean, contemporary flame display. Featuring a 24-inch linear trough pan and torpedo burner, this fire pit insert is an excellent choice for custom-built outdoor fire pits, patios, decks, and landscape fire features.
The Match Lit ignition system offers a straightforward and reliable way to light the fire pit manually, making it a practical choice for custom outdoor fire pit installations. The trough-style design provides excellent media retention while its raised burner configuration helps protect the burner from water exposure. HPC's trough inserts are constructed from #304 18-gauge stainless steel, with a pan lip for easier installation, bolted gas fittings for added strength, and weep holes for drainage.
The 24" torpedo burner delivers an attractive linear flame pattern that works beautifully with fire glass, lava rock, or other approved fire media. Its compact 24-inch format is ideal for smaller custom fire pit applications while still providing the visual impact of a modern linear gas fire pit.
Features
-
24-inch linear trough fire pit insert for custom outdoor installations
-
Torpedo burner creates a clean, linear flame presentation
-
Match Lit ignition provides simple manual lighting and operation
-
Constructed from durable #304 18-gauge stainless steel
-
Trough sidewalls help with fire media retention
- Pan lip simplifies installation into a custom fire pit enclosure
-
Raised burner hub helps provide water protection
- Bolted gas fitting provides a strong, secure connection
-
Integrated weep holes promote drainage
-
Compatible with approved decorative fire media such as fire glass and lava rock
- Designed for residential and commercial outdoor fire feature applications
-
CSA-certified Linear Trough Insert series from HPC Fire
-
Burner includes HPC's lifetime burner warranty according to its catalog specifications
Specifications
| Specification |
Details |
| Brand |
HPC Fire |
| Product |
24" Linear Trough Torpedo Pan Fire Pit Insert |
| Insert Size |
24" |
| Ignition Type |
Match Lit |
| Burner Type |
Torpedo |
| Burner Size |
24" |
| Gas Type |
Natural Gas / Liquid Propane |
| BTU – Natural Gas |
Up to 65,000 BTU |
| BTU – LP Small Tank |
Up to 50,000 BTU |
| Power Requirement |
N/A – Match Lit |
| Construction |
#304 Stainless Steel |
| Material Thickness |
18 Gauge |
| Burner Design |
Raised Torpedo Burner |
| Fire Media |
Fire Glass, Lava Rock, and approved media |
| Drainage |
Integrated Weep Holes |
| Gas Connection |
Bolted Gas Fitting |
| Small Tank |
Included for small-tank LP configuration |
| Certification |
CSA Certified |
| Application |
Custom Outdoor Fire Pits & Fire Features |
| Installation |
Custom Fire Pit Enclosure |
