HPC 13" Round Bowl Pan Push Button Flame Sensing Fire Pit

HPC 13" Round Bowl Pan Push Button Flame Sensing Fire Pit

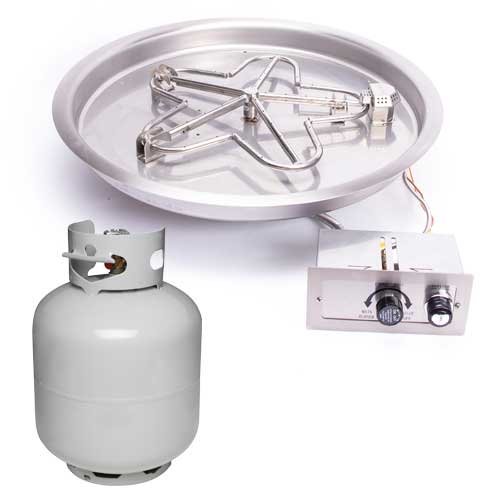

The HPC 13" Round Bowl Pan Push Button Flame Sensing Fire Pit is a drop-in gas burner for a custom fire pit or fire bowl: a 13" 304 stainless steel bowl pan with a 12" round fire ring, rated at 90,000 BTU with push-button spark ignition and a flame-sensing pilot. It needs no electricity (the spark igniter runs on a AA battery). Model numbers are FPPK13-FLEX-NG for natural gas and FPPK13-FLEX-LP for propane on fixed piping. A small tank version (FPPK13-FLEX-LP-ST) runs from a 20 lb or 30 lb propane cylinder at 90,000 BTU.

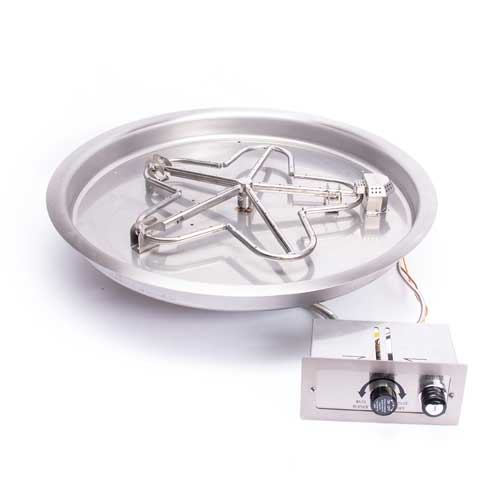

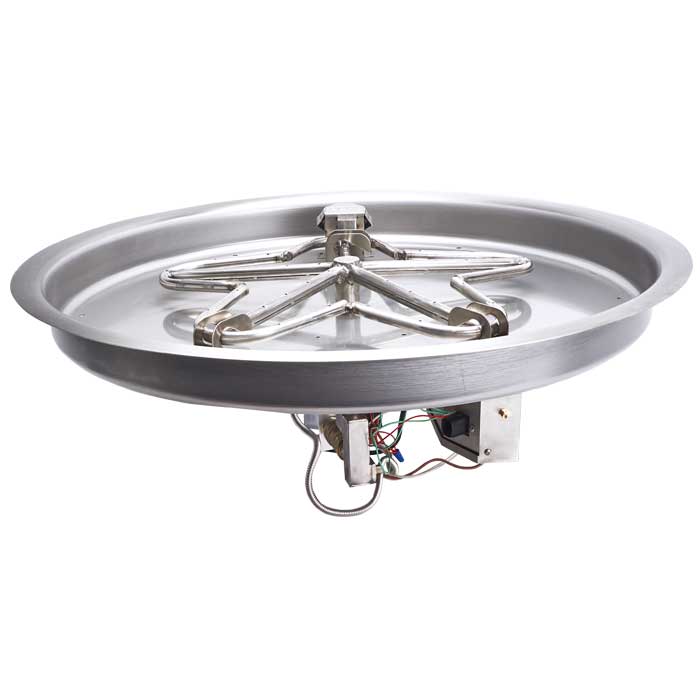

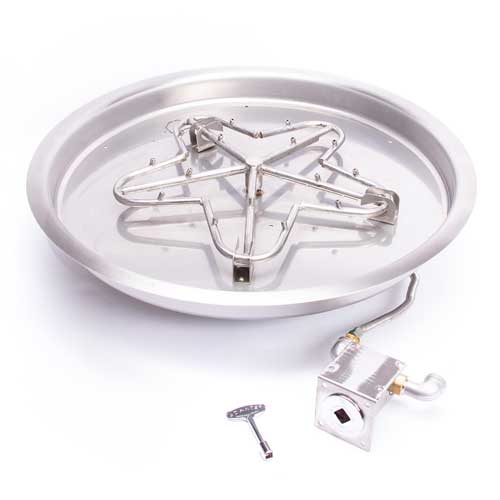

It is certified for outdoor use. The photos show HPC's round bowl series with a Penta burner; the 13" model has a 12" round fire ring instead.

Key Features

• 13" round bowl pan and 12" round fire ring, both 304 stainless steel
• 90,000 BTU maximum input
• Push-button spark ignition with a thermocouple flame-sensing pilot; no electricity needed, the igniter runs on a AA battery
• Control box with the gas valve knob and igniter button, connected by a 36" flex line
• Small tank version includes the regulator and hose assembly (11" W.C. regulator with a QCC1 fitting) and a tank mounting bracket
• Order the model for your gas: natural gas or propane on fixed piping, or the small tank propane version
• Approved for residential and commercial outdoor use

What to Order With It

The insert comes with the control box and a 36" gas flex line; the small tank version also comes with the regulator and hose assembly and a tank mounting bracket.

Required (choose one):

• HPC 1/4" Decorative Fire Pit Glass - 10 lb. Box (FPGLBLACK, FPGLCLEAR and 8 other colors): cover the burner with 1/4" to 1/2" of glass
• HPC Black Lava Rock Nuggets for Fire Pits - 1/2 Cubic Foot (657): only deep enough to cover the burner
• HPC Black Rolled Lava Stones for Fire Pits - 1/2 Cubic Foot Bag (857S or 857M): only deep enough to cover the burner

Required for the small tank version:

• A 20 lb or 30 lb propane cylinder with a QCC1 valve and overfill protection device, bought locally

Required on a wood or composite deck:

• HPC Deck Insulation Kit (FPI-DECK20SQ, 19.6" square, or FPI-DECK39SQ, 39.3" square) with locally bought paver stones

Specifications

Dimensions

The pan drops into the opening and rests on its lip. HPC's drawing gives a recommended enclosure size but no separate cutout size, so check the drawing with your installer and contact us before you cut.

Installation Notes

• Outdoor use only, installed above grade where water drains away.
• Set the pan at least 2" below the top of the enclosure to protect the flame from wind, and let the pan carry the weight, not the valve.
• Venting: an enclosure needs at least two vents of 18 sq in each on opposite sides. In a copper, concrete or metal bowl, use two 9 sq in vents on opposite sides, or raise the bowl at least 3/4" off the surface with a 6" hole in the bottom.
• Leave at least 2" below the valve for air and drainage, and don't fill the space around it with gravel, rock or concrete.
• Clearances: 36" from the sides to structures or combustibles (12" to noncombustible materials) and 84" overhead.
• Put a gas shutoff on the outside of the enclosure, and keep the fire pit covered when it isn't in use.
• Small tank version: keep the propane cylinder in its own ventilated enclosure at least 54" from the fire pit, secured with the supplied bracket, and use only the supplied regulator and hose.
• Use only lava rock or decorative glass over the burner, and don't cover the vents of the pilot's blowout box. Propane installs with glass must be checked for back pressure with the media in place.
• The gas connections should be installed and leak-checked by a qualified gas installer, and checked again every year.

Warranty

HPC limited warranty for residential use: lifetime on the stainless steel burner, 5 years on the stainless steel pan and valve box, 3 years on the electronics and gas valve, and 2 years on the pilot assembly. For commercial use the pan, valve box, electronics, gas valve and pilot assembly are covered for 1 year. The warranty covers parts and labor at HPC on items returned with an HPC return authorization. It does not cover installation or maintenance labor, or damage from overheating, modification or misuse. The full terms are in the warranty section of the installation manual below.

Documents & Downloads

• HPC Push-Button Flame Sensing Installation and Operation Instructions
• HPC Push-Button Flame Sensing Round Bowl Pan Drawing
