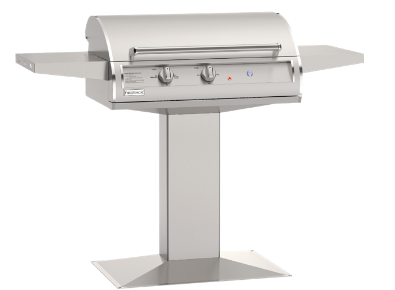

Fire Magic EL500s 30" Analog Accessible Height Patio Post-Mount Electric Grill With Optional Magic View Window

The Fire Magic EL500s Analog accessible height patio post-mount electric grill (order numbers EL500s-0Z1E-AP, EL500s-0Z1E-W-AP) is a 30" stand-alone electric grill for patios and outdoor spaces with no gas line. It runs on 240 volts and reaches 650°F on 31" x 16" (496 sq. in.) of Diamond Sear cooking grids.

The analog model uses simple controls on the face panel: a temperature knob, a 1-hour timer, a power button and a red indicator light.

Requires a dedicated 30 amp GFCI circuit breaker; have a licensed electrician make the connection.

Key Features

• 31" x 16" (496 sq. in.) of Diamond Sear cooking grids
• Heats up to 650°F
• Analog temperature knob, 1-hour timer, power button and red indicator light
• Warming rack included
• Optional Magic View window in the lid
• Patio post with base, accessible height (AP/AG)
• 304 stainless steel construction
• Outdoor use only

What to Order With It

Fits:

• Patio, deck or concrete pad (base anchors with the included lag shields and screws)

Optional:

• Black Vinyl Cover (3665F)

Specifications

• Order numbers: EL500s-0Z1E-AP, EL500s-0Z1E-W-AP
• Controls: Analog temperature knob, 1-hour timer, power button, red indicator light
• Cooking area: 31" x 16" (496 sq. in.) of Diamond Sear cooking grids, plus a warming rack
• Maximum temperature: 650°F
• Preheat: At least 15 minutes, or until the desired cooking temperature is reached
• Mount: Patio Post-Mount, accessible height (AP/AG)
• Height with lid open: 52.8"
• Electrical: 230/240VAC, single phase, 50/60 Hz, 6,000 watts (25 amp draw) on a dedicated 30 amp minimum GFCI circuit breaker; 10 AWG or larger wire rated for at least 105°C (221°F)
• Clearance to combustible construction: 8" rear, 24" sides; 5 ft minimum to overhead combustible construction
• Use: Outdoor use only
• Shipping weight: 245 lbs
• Cartons: Ships in 2 cartons: 48" L x 30" W x 26" H (grill), 48" L x 32" W x 40" H (post)

Choose your version: Standard: EL500s-0Z1E-AP; Magic View window: EL500s-0Z1E-W-AP.

Documents & Downloads

• EL500s Analog Post-Mount Electric Grill Installation & Owner's Manual
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Five (5) years: heating elements, per the owner's manual
• One (1) year: electronic components, per the owner's manual
• Covered by the Fire Magic limited warranty; see the warranty link above for full coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.

^*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
