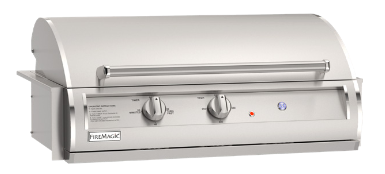

Fire Magic EL500i 30" Analog Built-In Electric Grill With Optional Magic View Window
The Fire Magic EL500i Analog (order number EL500i-0Z1E, or EL500i-0Z1E-W with the Magic View window) is a 30" built-in electric grill for outdoor kitchens with no gas line. It runs on 240 volts and reaches 650°F on 31" x 16" (496 sq. in.) of Diamond Sear cooking grids.
Instead of a touch screen, the analog model uses simple controls on the face panel: a temperature knob, a 1-hour timer, a power button and a red indicator light.
The EL500i requires a dedicated 30 amp GFCI circuit breaker; have a licensed electrician make the connection.
Key Features
- 31" x 16" (496 sq. in.) of Diamond Sear cooking grids
- Heats up to 650°F
- Analog temperature knob, 1-hour timer, power button and red indicator light on the face panel
- Warming rack included
- Optional Magic View window in the lid
- 304 stainless steel construction
- Outdoor use only
Choose Your Version
-
Without window: EL500i-0Z1E
-
With Magic View window: EL500i-0Z1E-W
What to Order With It
Order the items below to suit your island.
Required for a combustible enclosure:
- Insulating Liner (3178-52) - the manual requires it whenever the island is built from combustible materials
Optional:
Specifications
- Order numbers: EL500i-0Z1E (no window), EL500i-0Z1E-W (Magic View window)
- Controls: Analog temperature knob, 1-hour timer, power button, red indicator light
- Cooking area: 31" x 16" (496 sq. in.) of Diamond Sear cooking grids, plus a warming rack
- Maximum temperature: 650°F
- Preheat: At least 15 minutes, or until the desired cooking temperature is reached
- Cut-out (W x D x H): 33" W x 17 1/2" D x 7 1/4" H
- Unit size: 35" W x 24 1/2" D; 14 1/8" H closed, 28" H with the lid open
- Electrical: 230/240VAC, single phase, 50/60 Hz, 6,000 watts (25 amp draw) on a dedicated 30 amp minimum GFCI circuit breaker
- Connection: Hard-wired with an electrical disconnect, or a removable plug and receptacle; 10 AWG or larger wire rated for at least 105°C (221°F)
- Clearance to combustible construction: 8" rear, 8" sides, 24" corners
- Enclosure: Insulating liner 3178-52 required in a combustible enclosure
- Use: Outdoor use only
- Shipping weight: 145 lbs
- Carton: 48" L x 32" W x 22" H
The cut-out is the opening in the island countertop. Confirm the opening against the installation manual before cutting.
Documents & Downloads
Warranty
- Five (5) years: heating elements, per the owner's manual
- Covered by the Fire Magic limited warranty; see the warranty link above for full coverage terms
Warranty applies to the original purchaser with proof of purchase, for single family residential use.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
