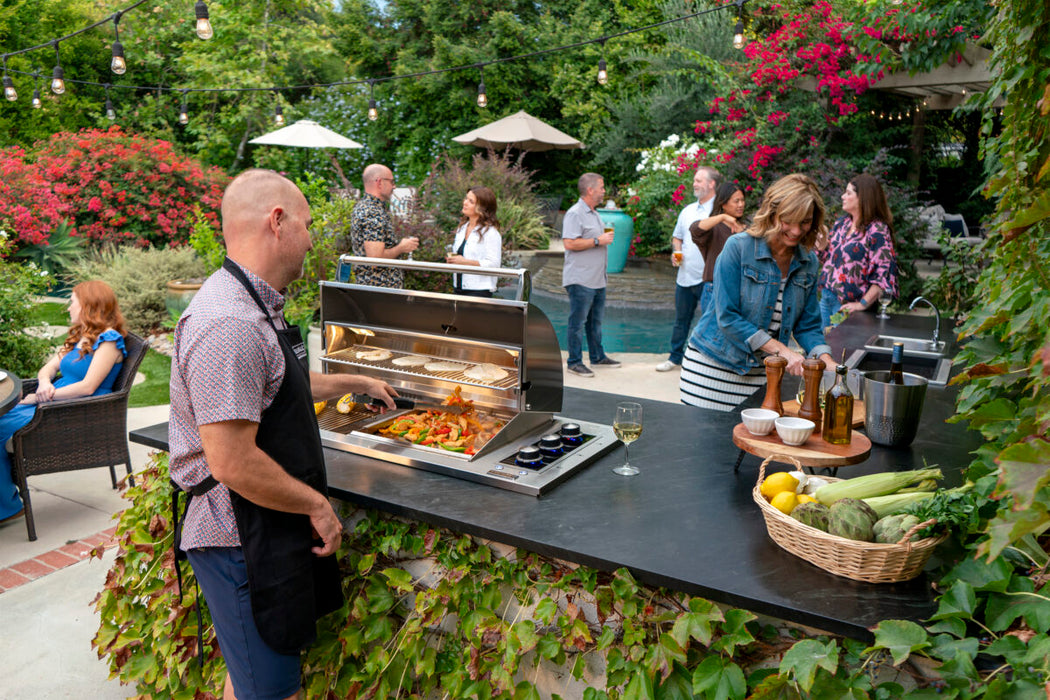

Fire Magic Echelon E540d 34" Drop-In Countertop Gas Grill with Hood

The Fire Magic Echelon E540d with hood (order number E540d-6TAN natural gas or E540d-6TAP propane) is a drop-in countertop gas grill with 30" x 18" (540 sq. in.) of Diamond Sear cooking grids over three tubular stainless steel burners.

It has a hood (oven) and includes a warming rack.

Key Features

• 30" x 18" (540 sq. in.) cooking area
• Diamond Sear cooking grids
• Three tubular stainless steel burners
• Electronic ignition
• Warming rack included

What to Order With It

Fits:

• Noncombustible countertop (combustible enclosures need the insulation liner)

Required in a combustible enclosure:

• Countertop Drop-In Insulation Liner (3271-50)

Optional:

• Grill Cover (3643-10F)
• Rotisserie Kit (3684A)
• Charcoal/Smoker Basket (3564-3)

Specifications

• Model numbers: E540d-6TAN (natural gas), E540d-6TAP (propane)
• Cooking area: 30" x 18" (540 sq. in.)
• Burners: 3 tubular stainless steel
• Cut-out: 41 3/4" W x 20 3/4" D x 16" (countertop to unit bottom); with the 3271-50 liner: 41 3/4" W x 22 3/4" D x 16"
• Unit size: 21" H (lid closed) x 44" W x 26" D
• Gas: Natural gas 7" w.c. normal inlet pressure (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max); 1/2" minimum interior diameter supply pipe
• Electrical: 120 VAC GFCI grounded three-wire receptacle, 15 amp minimum
• Shipping weight: 198 lbs
• Carton: 50" L x 32" W x 37" H

Fire Magic instructions: in an enclosure built of combustible materials with a noncombustible countertop, install the 3271-50 countertop drop-in insulation liner, and provide an access door on the front wall of the enclosure. See the manual for clearances.

Documents & Downloads

• Echelon Countertop Grill Installation & Owner's Manual
• Echelon Countertop Grill Quick Start
• Countertop Drop-In Insulation Liner Instructions
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Covered by the Fire Magic limited warranty; see the warranty link above for coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
