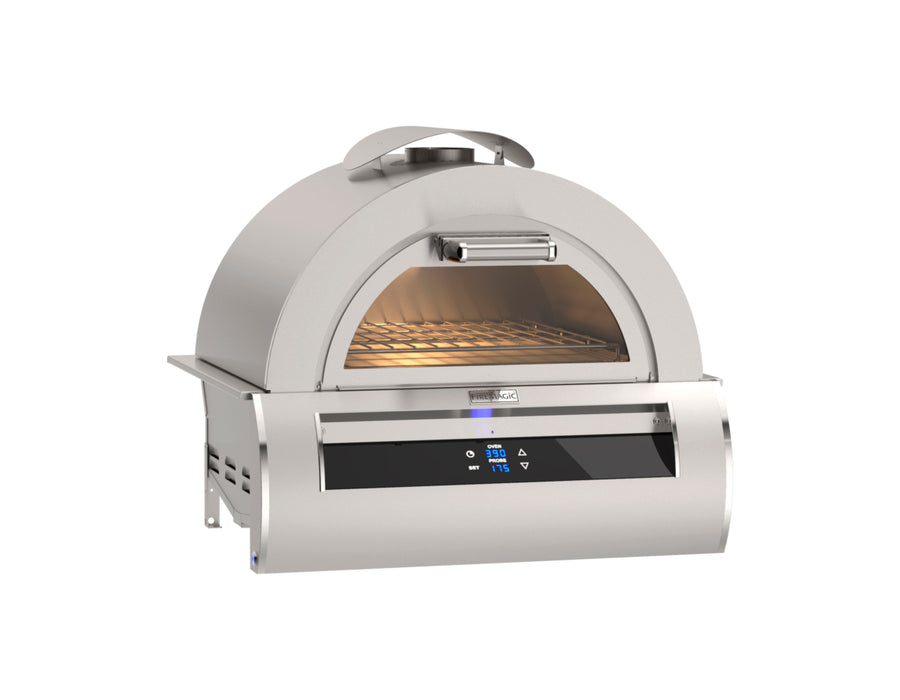

Fire Magic Echelon Diamond 5660 Built-In Gas Pizza Oven with Black Glass

The Fire Magic Echelon Diamond 5660 is a built-in gas pizza oven with an 18" x 18" x 3/4" cordierite stone, 36,000 BTU of 304 stainless steel burners and thermostatic control up to 700°F. A ceramic glass door window and interior light let you watch the bake.

Choose natural gas or propane. It needs a 120 volt GFCI outlet for ignition and the light.

Key Features

• 18" x 18" x 3/4" cordierite pizza stone
• 36,000 BTU, 304 stainless steel burners
• Thermostatic control, up to 700°F
• Touch screen with digital control
• Ceramic glass door viewing window
• Interior light
• IPI ignition with flame rectification
• Includes baking rack and pizza peel

What to Order With It

Fits:

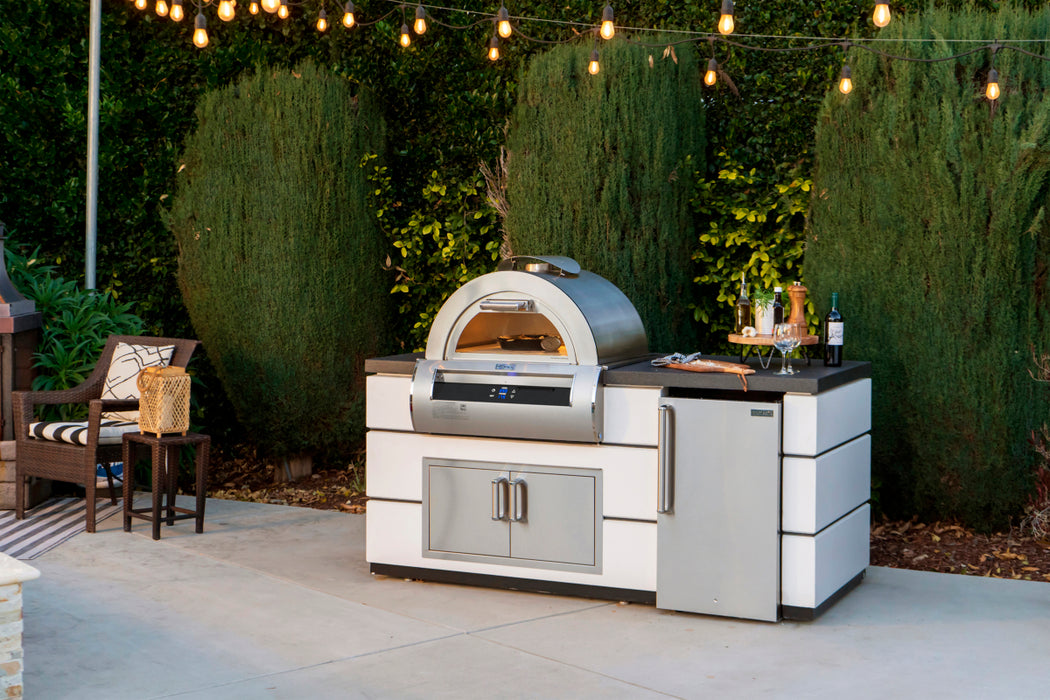

• Built-in outdoor kitchen island (non-combustible, or combustible with the insulating liner)

Required in a combustible enclosure:

• Insulating Liner (3176-52)

Optional:

• Pizza Oven Cover (3661F)
• 34" Portable Cart Gas Grill Base (660-SC24)
• Pizza Oven Cover for Portable Cart (33661-20F)

Specifications

• Model numbers: 5660 (natural gas), 5660P (propane)
• Cooking stone: 18" x 18" x 3/4" cordierite
• Burner output: 36,000 BTU
• Temperature: up to 700°F
• Cut-out: 31 1/4" W x 23 1/2" D x 11 1/2" (countertop to unit bottom)
• Unit size: 19 1/2" H x 34 1/8" W x 32 1/2" D (door closed)
• Gas: Natural gas 7" w.c. normal inlet pressure (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max); 1/2" minimum interior diameter supply pipe
• Electrical: 120 VAC GFCI grounded three-wire receptacle, 15 amp minimum
• Included (per manual): Pizza stone, baking rack, pizza peel, meat probe and storage box
• Shipping weight: 220 lbs
• Carton: 44 1/2" L x 31 1/4" W x 33 1/2" H

Fire Magic instructions: when installed in a combustible enclosure, an approved insulating liner (3176-52) must be used. See the installation manual for clearances.

Documents & Downloads

• Echelon Pizza Oven (Black Glass) Installation & Owner's Manual
• Pizza Oven (Black Glass) Quick Start Guide
• Pizza Oven (Black Glass) App Setup and Operation
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Covered by the Fire Magic limited warranty; see the warranty link above for coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
