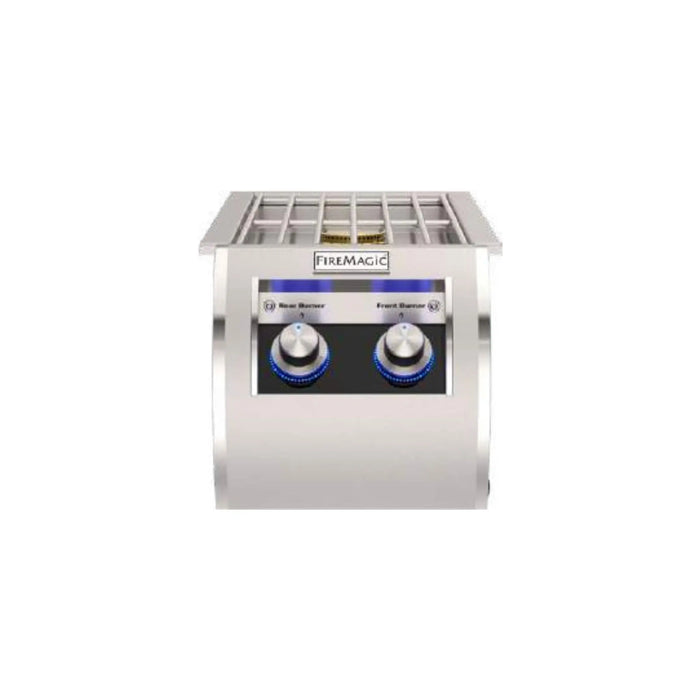

Fire Magic Echelon Diamond 12" Built-In Gas Double Side Burner
The Fire Magic Echelon Diamond Double Side Burner (order numbers 32816N natural gas / 32816P propane) is a built-in companion cooker with two 15,000 BTU burners (30,000 BTU total) under a stainless steel lid, for sauces and side dishes next to the grill.
It needs 120V power: it plugs into the transformer of a matching Echelon Diamond grill, or into a separate power supply (24187-18) when it is installed on its own or too far from the grill. The manual recommends the AD-SB20 built-in side burner island spacer kit when installing in a combustible enclosure.
Key Features
- Two burners, 15,000 BTU each (30,000 BTU total), with independent controls
- Stainless steel lid; cooking grid included
- Black glass control panel that matches Echelon Diamond grills
- Back-lit control knobs
- Outdoor use only
What to Order With It
Required when not powered from a matching grill:
-
Echelon Power Supply (24187-18) - for a stand-alone installation or when the burner is too far from the grill
Optional:
Specifications
- Order numbers: 32816N natural gas / 32816P propane
- Fuel: Natural gas or propane (order one)
- Burners: 2 x 15,000 BTU (30,000 BTU total)
- Cut-out (W x D x H): 11 1/2" W x 22 3/4" D x 11 1/2" H in a non-combustible enclosure; 12" W x 23 1/4" D in a combustible enclosure
- Electrical: 120VAC, 15 amp minimum, GFCI grounded three-wire receptacle (through the grill transformer or power supply 24187-18)
- Gas supply pressure: Natural gas 7" w.c. normal (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max)
- Clearance to combustible construction: 12" from a combustible rear wall, 18" sides
- Overhead: 5 ft minimum from countertop to overhead construction
- Use: Outdoor use only
- Shipping weight: 28 lbs
- Carton: 31 3/4" L x 18 3/4" W x 15 3/4" H
Documents & Downloads
Warranty
- Three (3) years: side burners and all other components (except ignition systems and electronic parts)
- One (1) year: ignition systems (except batteries), electronic components and accessories
- Fire Magic pays a warranty labor allowance for the first two years
Warranty applies to the original purchaser with proof of purchase, for single family residential use.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
