Fire Magic Aurora Built-In Gas Power Burner
The Fire Magic Aurora Power Burner is a built-in 60,000 BTU side cooker with an inner and an outer burner on separate controls and a heat-concentrating flame collimator, made for wok cooking, turkey frying and other high-heat cooking. Order numbers: 19-7B1N-0 / 19-7B1P-0 (stainless steel grid), 19-7B2N-0 / 19-7B2P-0 (porcelain cast iron grid).
It needs 120V power: it plugs into the transformer of a matching Aurora grill, or into a separate power supply (24182-18) when installed on its own or too far from the grill. An insulating liner (3278-52) is required in a combustible enclosure.
Key Features
- 60,000 BTU from an inner and an outer burner with separate controls
- Flame collimator to concentrate heat
- Removable stainless steel lid

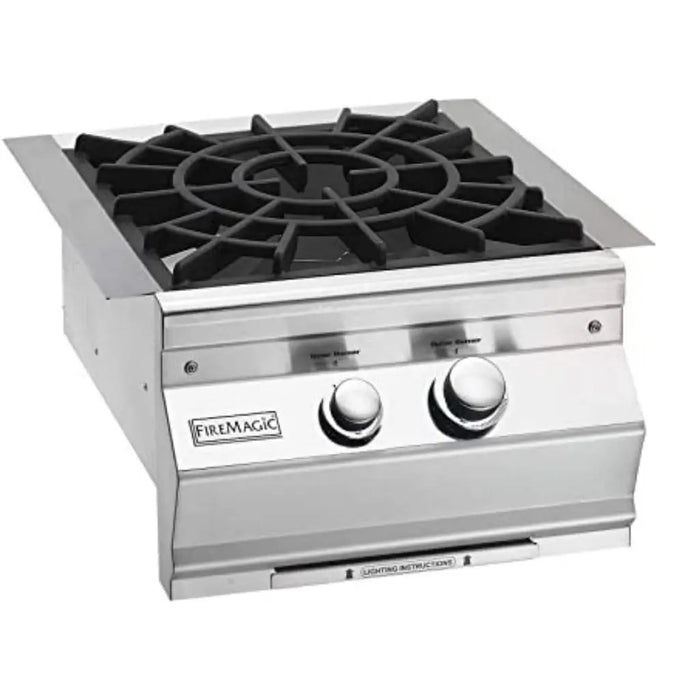

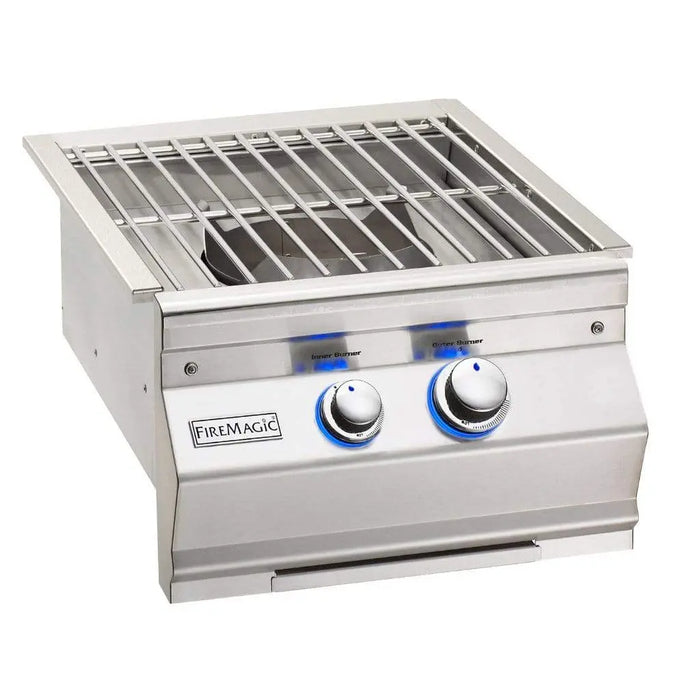

- Choice of stainless steel or porcelain cast iron cooking grid
- Back-lit control knobs and power switch
- Outdoor use only
What to Order With It
Required:
-
Insulating Liner (3278-52) - required in a combustible enclosure
- Aurora Power Supply (24182-18) - when not powered from a matching grill
Optional:
Specifications
- Order numbers: 19-7B1N-0 / 19-7B1P-0 (stainless steel grid), 19-7B2N-0 / 19-7B2P-0 (porcelain cast iron grid)
- Fuel: Natural gas or propane (order one)
- Input: 60,000 BTU
- Cut-out (W x D x H): 19" W x 18 3/4" D x 11 1/2" H (non-combustible enclosure)
- Control panel width: 20 1/4"
- Combustible enclosure: Insulating liner 3278-52 required
- Electrical: 120VAC, 15 amp minimum, GFCI grounded three-wire receptacle (through the grill transformer or power supply 24182-18)
- Gas supply pressure: Natural gas 7" w.c. normal (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max)
- Clearance to combustible construction: 18" from a combustible rear wall (4" from a non-combustible rear wall), 12" sides
- Overhead: 5 ft minimum from countertop to overhead construction
- Use: Outdoor use only
- Shipping weight: 62 lbs (stainless grid), 72 lbs (porcelain cast iron grid); ships in two cartons
- Carton: 27" L x 26" W x 18" H
Documents & Downloads
Warranty
- Three (3) years: all components (except ignition systems and electronic parts)
- One (1) year: ignition systems (except batteries), electronic components and accessories
- Fire Magic pays a warranty labor allowance for the first two years
Warranty applies to the original purchaser with proof of purchase, for single family residential use.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
