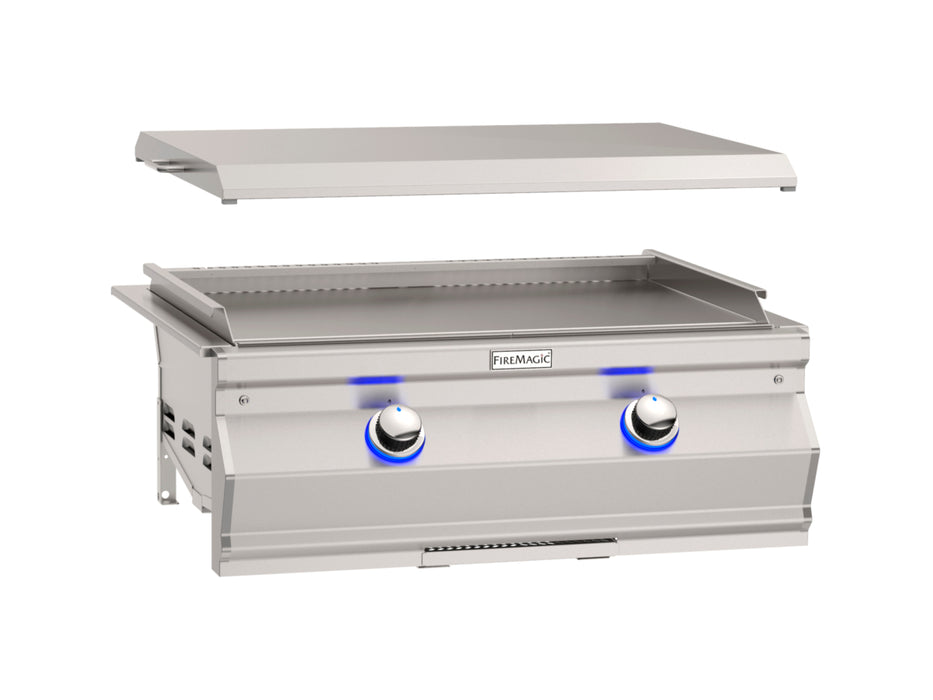

Fire Magic Aurora A660i 30" Built-In Gas Gourmet Griddle

The Fire Magic Aurora A660i gourmet griddle (order number A660i-0T4N natural gas or A660i-0T4P propane) is a 30" built-in gas griddle with a 3/8" thick stainless steel cooking surface, 30" x 18" (540 sq. in.), heated by two burners.

It has back-lit control knobs, 120 VAC/12 volt hot surface ignition and a grease tray with two removable collection troughs. A stainless steel cover is included.

Key Features

• 30" x 18" (540 sq. in.) cooking area
• 3/8" thick stainless steel griddle surface for warp-free performance
• Two burners
• Back-lit control knobs
• 120 VAC/12 volt hot surface ignition
• Grease tray with dual removable collection troughs
• Stainless steel cover included

What to Order With It

Fits:

• Built-in outdoor kitchen island (non-combustible, or combustible with the insulating liner)

Required in a combustible enclosure:

• Insulating Liner (3176-52)

Optional:

• Griddle Cover (3517-5F)
• Griddle Warming Rack (3685S)
• Griddle Condiments Kit (3700)
• Griddle Scraper (3502-G)
• 34" Portable Cart Gas Grill Base (660-SC24)
• Griddle Cover for Portable Cart (35120-20F)

Specifications

• Model numbers: A660i-0T4N (natural gas), A660i-0T4P (propane)
• Cooking area: 30" x 18" (540 sq. in.)
• Griddle surface: 3/8" thick stainless steel
• Burners: 2
• Cut-out: 31 1/4" W x 23 1/2" D x 11 1/2" (countertop to unit bottom)
• Gas: Natural gas 7" w.c. normal inlet pressure (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max); 1/2" minimum interior diameter supply pipe
• Electrical: 120 VAC GFCI grounded three-wire receptacle, 15 amp minimum
• Shipping weight: 200 lbs
• Carton: 48" L x 32 1/2" W x 24" H

Fire Magic instructions: when installed in a combustible enclosure, an approved insulating liner (3176-52) must be used. See the installation manual for clearances.

Documents & Downloads

• Aurora Gourmet Griddle Installation & Owner's Manual
• Aurora Gourmet Griddle Quick Start Guide
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Covered by the Fire Magic limited warranty; see the warranty link above for coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
