Fire Magic 5597 High Capacity Ice Maker w/ Reversible Door Hinge

Fire Magic 5597 High Capacity Ice Maker w/ Reversible Door Hinge

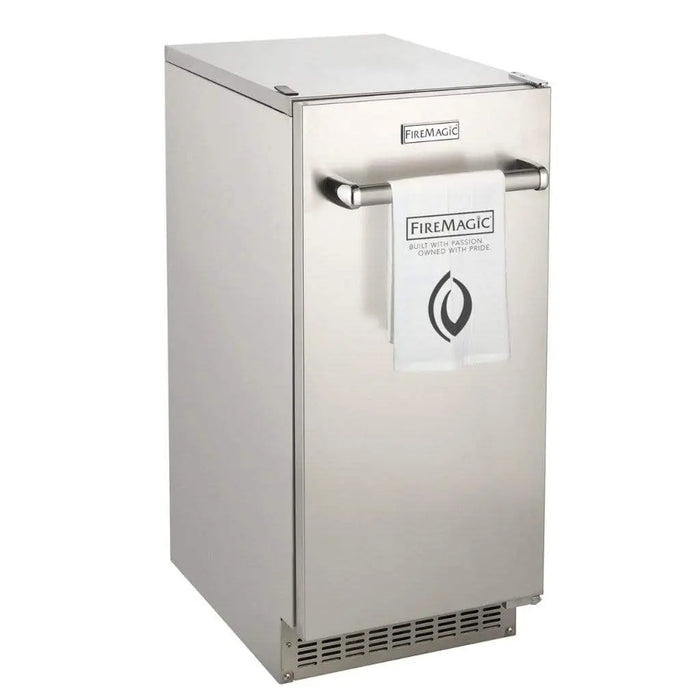

The Fire Magic 5597B is an outdoor ice maker with a reversible door. It makes up to 55 lbs of clear ice cubes per day, stores up to 26.5 lbs, and installs built-in (34"h x 15 1/4"w x 25 1/4"d cut-out) or freestanding. The 5597B is a gravity drain model; a drain pump is available.

Key Features

• Up to 55 lbs of ice per day
• Stores up to 26.5 lbs of ice

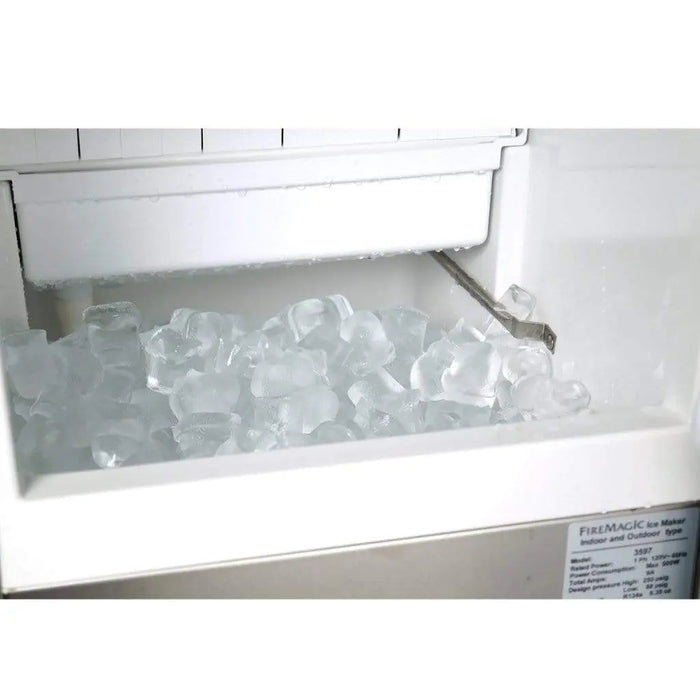

• Clear cube ice
• Reversible door
• Built-in or freestanding installation
• Gravity drain; optional drain pump 5597B-100

What to Order With It

Fits:

• Outdoor kitchen island or enclosure cut-out: 34"h x 15 1/4"w x 25 1/4"d (minimum)

Optional:

• Ice Maker Trim Kit (3821)
• Drain Pump for Outdoor Ice Maker (5597B-100; sold separately)

Specifications

• Part number: 5597B
• Ice production: Up to 55 lbs per day
• Ice storage: 26.5 lbs
• Cut-out: 34"h x 15 1/4"w x 25 1/4"d
• Unit size: 34" to 35"h x 15"w x 25 1/4"d
• Electrical: 115 V, 3.7 A max, 60 Hz; 340 W max; 120 VAC 15 amp minimum grounded GFCI receptacle
• Water supply: 20 to 80 psi, 50°F to 86°F
• Drain: Gravity drain, 5/8" drain tube, 1/4" per foot slope, air gap required
• Ambient operating range: 50°F to 100°F
• Refrigerant: R-600a

Fire Magic instructions: operate between 50°F and 100°F, and drain the water system and disconnect power for winter storage. Service must be done by factory authorized personnel.

Documents & Downloads

• 5597B Ice Maker Owner's Manual
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• One (1) year limited warranty, per the 5597B owner's manual
• Covered by the Fire Magic limited warranty; see the warranty link above for coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
