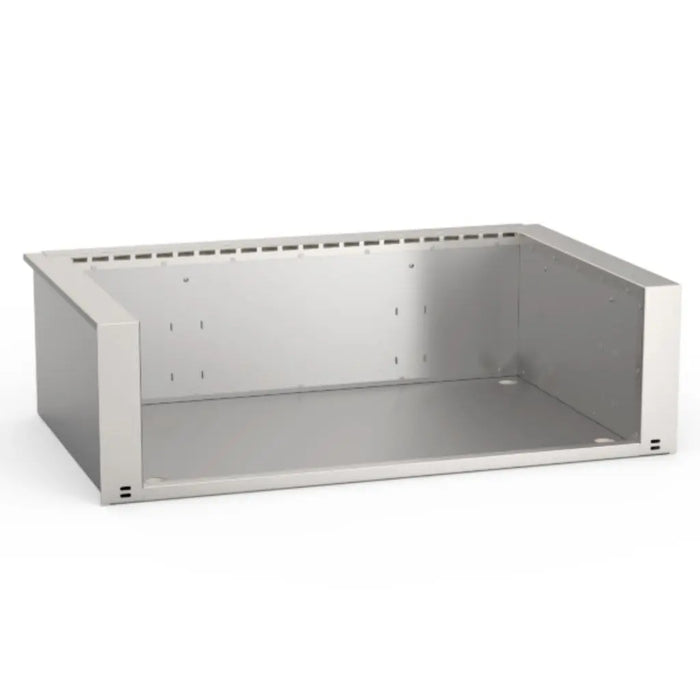

Fire Magic 3185-52 Insulating Liner for Echelon Diamond E1060i Built-In Grills

Fire Magic 3185-52 Insulating Liner for Echelon Diamond E1060i Built-In Grills

The Fire Magic 3185-52 is the 52 series (post-2020) insulating liner for Echelon E1060i built-in grills. It lets the grill install in an enclosure built of combustible materials, provided the countertop is non-combustible. It comes pre-assembled with its hangers.

Key Features

• Insulating liner for Echelon E1060i built-in grills
• For combustible enclosures with a non-combustible countertop
• Pre-assembled, hangs from the countertop on the included liner hangers

What to Order With It

Fits:

• Echelon E1060i
• Echelon E1060i (analog)

Specifications

• Part number: 3185-52
• Fits: Echelon E1060i built-in grills
• Enclosure cut-out: 54 7/8" W x 26" D x 12 1/4" H (countertop to unit bottom)
• Includes: Pre-assembled liner with hangers
• Use: Outdoor
• Shipping weight: 114 lbs

Fire Magic instructions: the liner is only for an enclosure built of combustible materials with a NON-COMBUSTIBLE countertop, and it hangs from the countertop on its liner hangers. Any countertop overhang must be cut flush with the front wall for the width of the liner flanges. Never block the front and rear ventilation ports, and provide enclosure openings for drainage, replacement air and cross-ventilation.

Documents & Downloads

• Grill Insulating Liner Instructions (52 Series)
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Covered by the Fire Magic limited warranty; see the warranty link above for coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
