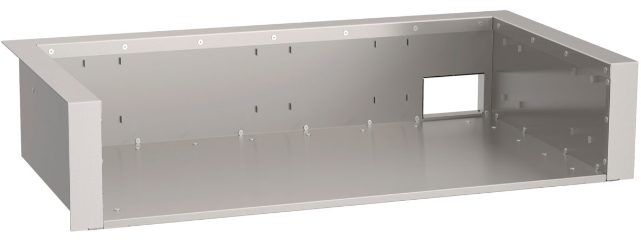

Fire Magic 3178-52 Insulating Liner for EL500i Electric Grills

The Fire Magic 3178-52 insulating liner is for installing an EL500i built-in electric grill in an island built from combustible materials with a noncombustible countertop. It comes pre-assembled and hangs from the countertop.

Key Features

• Insulating liner for Fire Magic EL500 built-in electric grills
• Required in a combustible enclosure
• Pre-assembled; hangs from the countertop

What to Order With It

Fits:

• EL500i Built-In Electric Grills

Specifications

• Part number: 3178-52
• Fits: Fire Magic EL500 built-in electric grills
• Cut-out with liner (W x D x H): 35 1/4" W x 18 3/4" D x 7 3/4" H; liner flange 37 1/4" wide
• Use: Enclosure of combustible materials with a noncombustible countertop

Fire Magic instructions: do not let the grill hanger touch the countertop or any combustible surface, and use only the rear-facing knockout on the junction box for the electrical connection.

Documents & Downloads

• Insulating Liner Installation Instructions
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Covered by the Fire Magic limited warranty; see the warranty link above for coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
