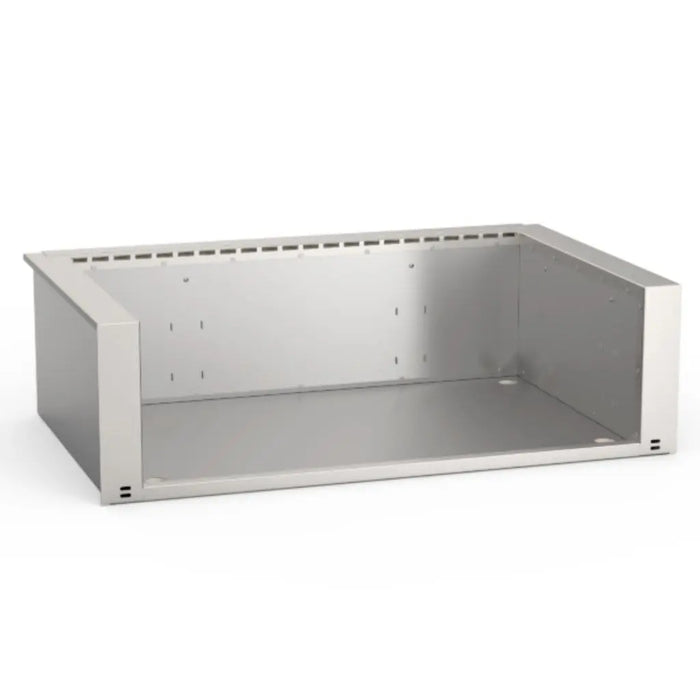

Fire Magic 3100-51 Insulating Liner for Legacy Deluxe Built-In Grills

Fire Magic 3100-51 Insulating Liner for Legacy Deluxe Built-In Grills

The Fire Magic 3100-51 is the insulating liner for Fire Magic Legacy Deluxe (11 series) built-in grills. It lets the grill install in an enclosure built of combustible materials, provided the countertop is non-combustible.

Key Features

• Insulating liner for Legacy Deluxe (11 series) built-in grills
• For combustible enclosures with a non-combustible countertop
• Hangs from the countertop on its liner hangers

What to Order With It

Fits:

• Fire Magic Legacy Deluxe (11 series) built-in grills

Specifications

• Part number: 3100-51
• Fits: Fire Magic Legacy Deluxe (11 series) built-in grills
• Enclosure cut-out: 28 3/8" W x 19 3/4" D x 12 1/4" H (countertop to unit bottom)
• Liner flange width: 29 5/8"
• Use: Outdoor
• Shipping weight: 31 lbs

Fire Magic instructions: the liner is only for an enclosure built of combustible materials with a NON-COMBUSTIBLE countertop, and it hangs from the countertop on its liner hangers. Do not let the appliance hanger touch the countertop or any combustible surface, and provide enclosure openings for drainage, replacement air and cross-ventilation.

Documents & Downloads

• Deluxe Grill and Accessory Insulating Liner Instructions
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Covered by the Fire Magic limited warranty; see the warranty link above for coverage terms

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
