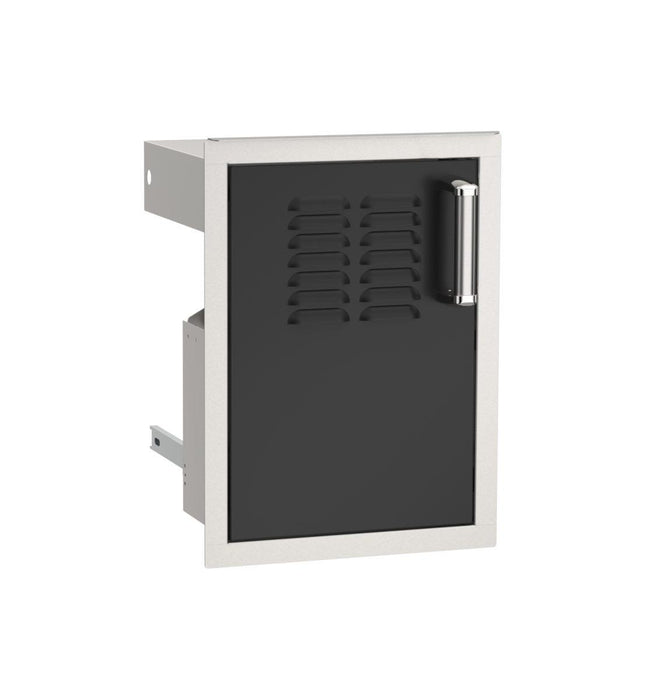

Fire Magic 14" 53820BSC Echelon Black Single Access Door w/ Tank Tray and Louvers

The Fire Magic 53820BSC-TL / 53820BSC-TR is an Echelon Black (5-series) soft close single access door with tank tray and louvers for an outdoor kitchen island or enclosure cut-out of 21"h x 14 1/2"w x 20 1/2"d. Order 53820BSC-TL for a left hinge or 53820BSC-TR for a right hinge.

Echelon Black doors and drawers have a black powder-coat finish over stainless steel, built to the same 5-series design as Fire Magic Premium Flush.

Key Features

• Echelon Black single access door with tank tray and louvers
• Black powder-coat finish over stainless steel
• Soft close
• Tank tray holds a standard 5-gallon (20 lb) propane cylinder
• Available with left or right hinge

What to Order With It

Fits:

• Outdoor kitchen island or enclosure cut-out: 21"h x 14 1/2"w x 20 1/2"d

Optional:

• Prefer stainless steel? See the stainless Premium Flush version of this door.

Specifications

• Part numbers: 53820BSC-TL (left hinge), 53820BSC-TR (right hinge)
• Series: Echelon Black (5-series)
• Finish: Black powder coat over stainless steel
• Cut-out: 21"h x 14 1/2"w x 20 1/2"d
• Soft close: Yes
• LP tank: Standard 5-gallon (20 lb) propane cylinder
• Shipping weight: 49 lbs
• Carton: 27 1/4" L x 21 1/2" W x 26 1/2" H

Fire Magic instructions: the tank tray holds a standard 5-gallon (20 lb) propane cylinder. Do not store a spare propane cylinder under or near the appliance, and make sure the enclosure is vented per the grill owner's manual.

Documents & Downloads

• Door and Drawer Installation Instructions
• Doors with Tank Tray Instructions
• Fire Magic Warranty
• Fire Magic Catalog

Warranty

• Three (3) years: Fire Magic Premium Flush and Echelon Black (5-series) doors and drawers

Warranty applies to the original purchaser with proof of purchase, for single family residential use.
