Empire Wooden Mantel Cabinet with Base for 36" Fireplaces and Fireboxes

Empire Wooden Mantel Cabinet with Base for 36" Fireplaces and Fireboxes

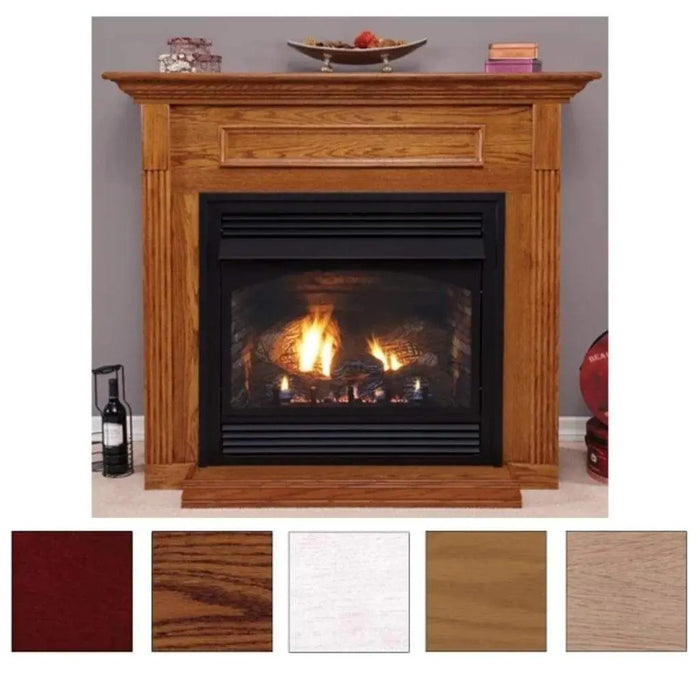

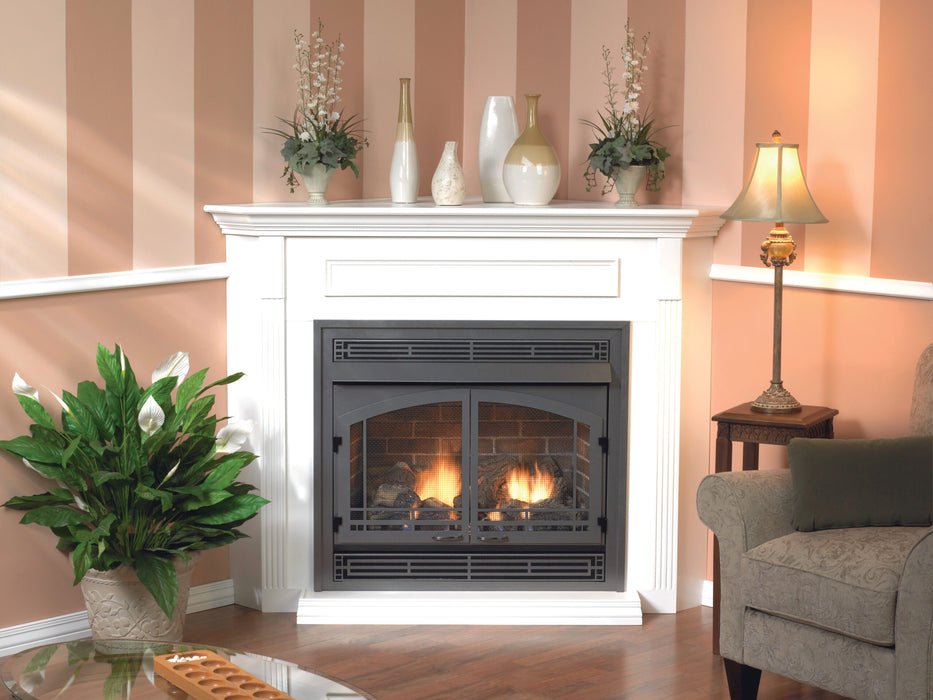

The Empire cabinet mantels with base for the 36" Breckenridge Deluxe firebox (model numbers EMBF3SC, EMBF3SDO, EMBF3SO, EMBF3SUH, EMBF3SW, EMBC3SC, EMBC3SDO, EMBC3SO, EMBC3SUH and EMBC3SW) come as a standard (EMBF3S) or corner (EMBC3S) cabinet in cherry, dark oak, oak, white or unfinished hardwood.

Fits

• Empire 36" Breckenridge Deluxe Vent-Free Firebox

Related Parts

• EZ Attach Steel Frame, Black (VBS36SBL)
• EZ Attach Steel Frame, Hammered Pewter (VBS36SHP)

Specifications

Installation Notes

• Outer frame: Empire's price list says the cabinet mantels require the 3-piece outer frame.
• Assembly: set the base, place the firebox on it and route the gas line, fit the left and right sides, attach the breastboard (six 1 1/4" screws), secure the mantel to the top of the firebox with the L bracket, then add the top (standard mantel instructions).
• Clearances: follow the mantel clearances in the firebox manual.

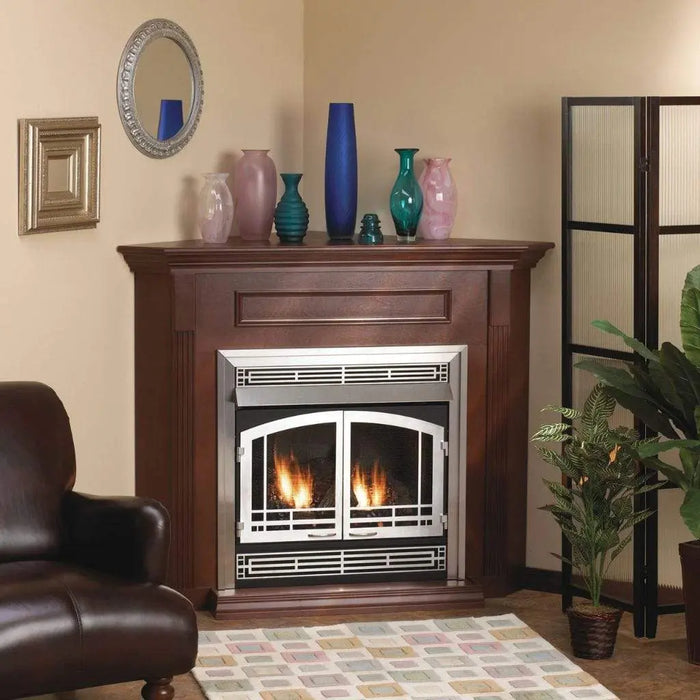

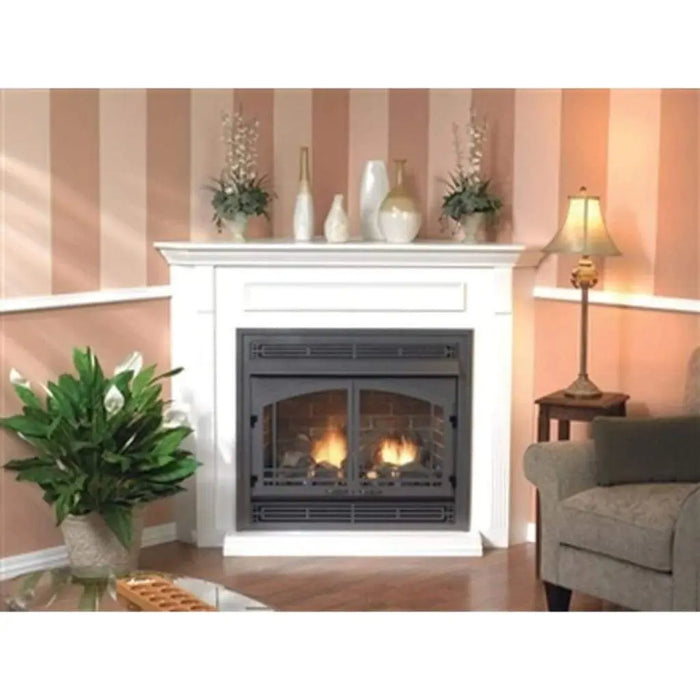

• Corner mantels: the corner (EMBC) versions are not covered by the standard mantel sheet; ask us for their instructions.

Downloads

• Full Cabinet Mantel Assembly Instructions, EMBF-1S to EMBF-8S (17802)
• Installation Instructions and Owner's Manual, Breckenridge Deluxe VFD32/36/42FB (39000)
• Empire Breckenridge Vent-Free Fireboxes Brochure (00545)

Warranty

Empire's warranty in the fireplace's installation manual covers remote controls, thermostats, accessories and replacement parts for 1 year (parts), for the original purchaser. Full terms are in the warranty section of the installation manual.
