Empire 4" Horizontal Power Vent Termination for Direct Vent Fireplaces

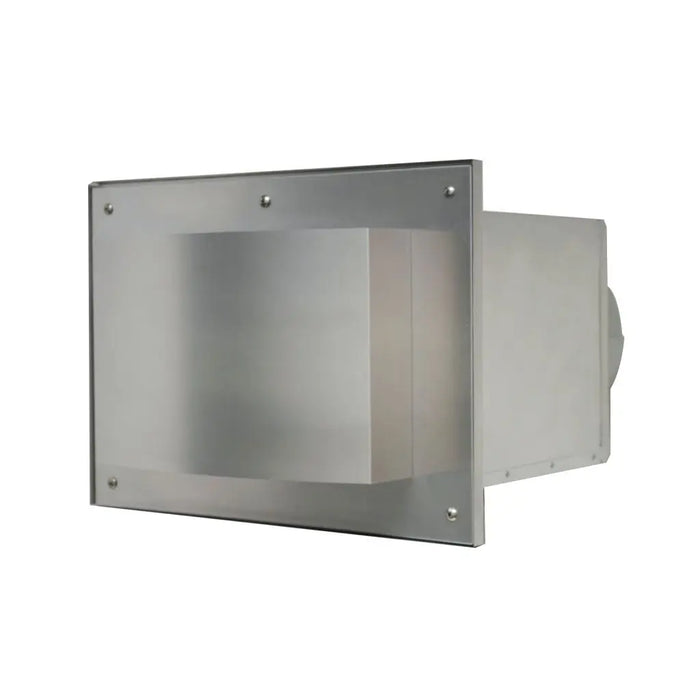

The Empire DVKPM (model number DVKPM) is a horizontal power vent termination for Empire direct-vent fireplaces with the multi-function remote, including the Boulevard 36 and 48. Its instructions allow the vent to take any path within the limits below.

Fits

Related Parts

Wire Harness, 25 ft (WHP25)
Wire Harness, 50 ft (WHP50)
Wire Harness, 75 ft (WHP75)
Wire Harness, 100 ft (WHP100)
Vertical Conversion Kit for the power vent (DVKCV)

Specifications

Model numbers	DVKPM
Vent pipe	DuraVent Direct Vent Pro 4" x 6 5/8" only; fireplaces with 5" x 8" connections need the SD58DVAX46 decreaser
Effective length	15 ft minimum to 110 ft maximum
Limits	Up to 60 ft above the fireplace floor, up to 5 ft below the base of the fireplace, a maximum drop of 12 ft from the highest point, and up to six 90° or twelve 45° elbows
Required	WHP wire harness (25, 50, 75 or 100 ft)

Installation Notes

Termination: horizontal; a vertical termination needs the DVKCV vertical conversion kit. The power vent cannot be vented out the rear of the fireplace.
Sealing: seal all outer joints with aluminum tape or silicone rated above 300°F; inner flue joints need no sealant.
Installation: by a qualified installer, following the DVKPM instructions. In Massachusetts, gas work must be done by a licensed plumber or gas fitter.

Downloads

Warranty

Empire's warranty in the Boulevard installation manual covers remote controls, thermostats, accessories and parts for 1 year (parts), for the original purchaser. Full terms are in the warranty section of the installation manual.
