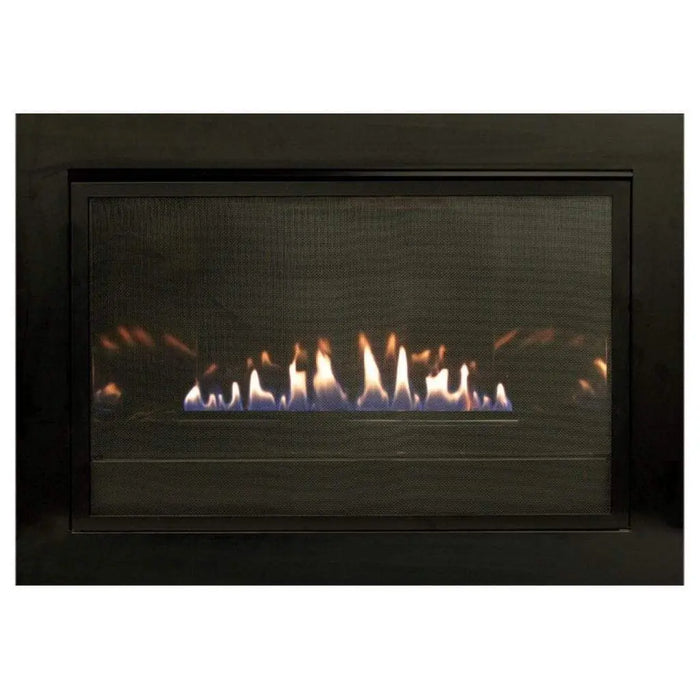

Empire 29" Loft Small Vent-Free Gas Fireplace Insert (10,000 BTU)
A Vent-Free system uses room air for combustion and delivers 99.9% of the available heat energy directly to the room. Vent-Free systems have an unmatched safety record, thanks in part to their clean-burning technology and their Oxygen Depletion Sensor, which instantly shuts of the valve if oxygen in the room drops to and unsafe level. Because no venting is required, Vent-Free systems offer more installation options.
Vent-Free systems are limited to 40,000 Btu and must be operated as supplemental heating sources in conjunction with a central furnace that circulates air.
ADVANTAGES
Unmatched efficiency – 99.9%
Offers the most installation versatility
Usually less expensive to buy and to install
Can operate with a remote or thermostat
Most systems can provide life-saving heat during a winter power outage
LOFT VENT-FREE INSERTS
Awaken your inner artist with a Loft Series Vent-Free Insert – with contemporary linear burner in a black reflective firebox that reflects the mesmerizing flame to create depth and visual interest from any angle.
LOFT VENT-FREE INSERTS (VFLC)
Empire comfort systems offers the Loft Vent-Free Inserts in two sizes (20,000 BTUs and 28,000 BTUs) so you are sure to find one to fit your existing wood-burning fireplace.
A 10,000 BTUs model is available for bedroom applications – where allowed by codes.
The Loft Series Vent-Free Insert features a contemporary linear burner in a sleek, black firebox that reflects the flames to create depth and visual interest. A fine barrier mesh screen comes standard with each Loft Vent-Free Insert.
The Loft Insert lights at the flick of a switch to produce consistent, reliable heat, even when electric power fails. Add the convenience of an optional thermostat, wireless wall thermostat, remote control, or thermostat remote control, and enjoy all the comfort of a warm fire without the mess and hassle.
FEATURES
Fuel Type: Liquid Propane / Natural Gas
Ignition Type: Millivolt Only
Opening - 14 5/8 H x 25 7/8 W
This unit installs as an insert inside an existing fireplace with the decorative front

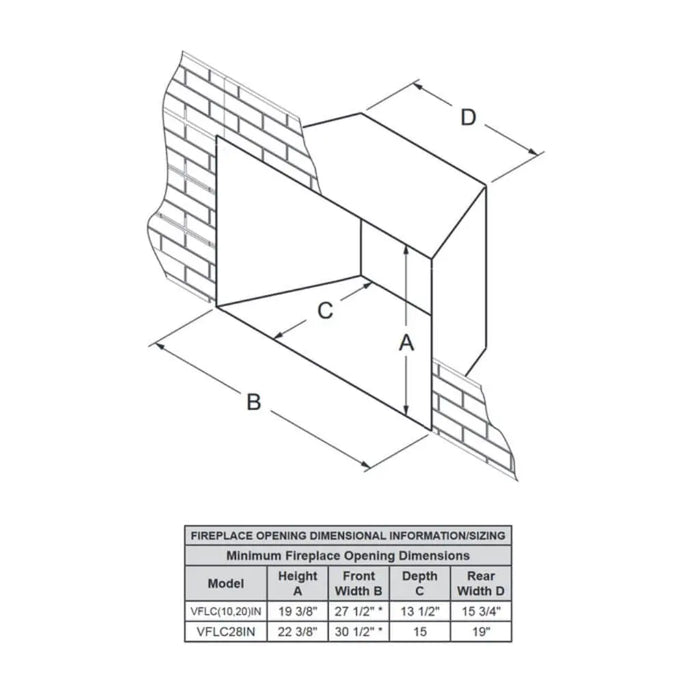

Minimum fireplace opening: 19-3/8" high, 27-1/2" front width, 15-3/4" rear width, 13-1/2" deep
Venting: Vent-free (unvented): no chimney or vent required. The heater uses air from the room in which it is installed for combustion.
Room size: The room should provide at least 50 cubic feet of volume per 1,000 Btu/hr of all appliances drawing combustion air from it (500 cubic feet for this insert alone at 10,000 Btu/hr). A smaller (confined) space needs the additional ventilation air described in the installation manual.
Bedrooms and bathrooms: Not for bathrooms: the manual limits unvented heaters in a bathroom to 6,000 Btu/hr, and in a bedroom to 10,000 Btu/hr. This 10,000 Btu/hr model is within the bedroom limit where local codes allow. In the Commonwealth of Massachusetts, unvented gas space heaters are prohibited in bedrooms and bathrooms.
Clearances to combustibles: 8" minimum from the inside edge of the firebox to a perpendicular side wall. Do not use vinyl, carpet or wood-based flooring within 16" of the insert face.
Mantel clearance: Follow the mantel chart in the installation manual for any combustible mantel or trim above the unit.
Gas input (BTU/hr): Natural gas or propane 10,000 (fixed rate)
Power: Millivolt models are self-powered: the gas valve needs no 110-volt supply. (This model is millivolt only.) The blower requires 120V, 60Hz, 1 amp.
Installation: Must be installed by a qualified installer per the installation manual and local codes.
OPTIONS & ACCESSORIES
Please Note: Decorative Media (uses about 1.15 sq. ft.)
Click to see Surround Options
4x3 (3-Sided Metal Surround)
Size: 4x3
Color: Black
Product Dimensions: 34" W x 21 1/2" H x 1" D
Non-combustible, protective metal surround
Designed for use with small vent-free Loft insert
Available in an attractive matte black finish for a sleek and seamless look
Not for use with SH1BL Shroud

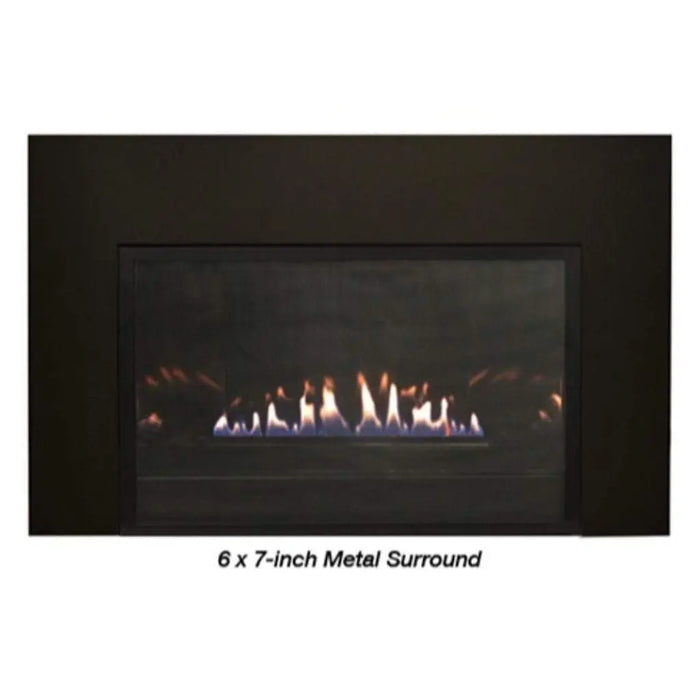

7x6 (3-Sided Metal Surround)
Size: 7x6
Color: Black
Product Dimensions: 40" W x 24 1/2" H x 1" D
Non-combustible, protective metal surround
Designed for use with small vent-free Loft insert
Available in an attractive matte black finish for a sleek and seamless look
3x3 (4-Sided Metal Surround)
Size: 3x3
Color: Black
Product Dimensions: 34" W x 22 7/8" H x 1/8" D
3-Sided Custom Surround
Color: Matte Black
Custom Built Surround for Various Empire Fireplaces and Fireplace Inserts

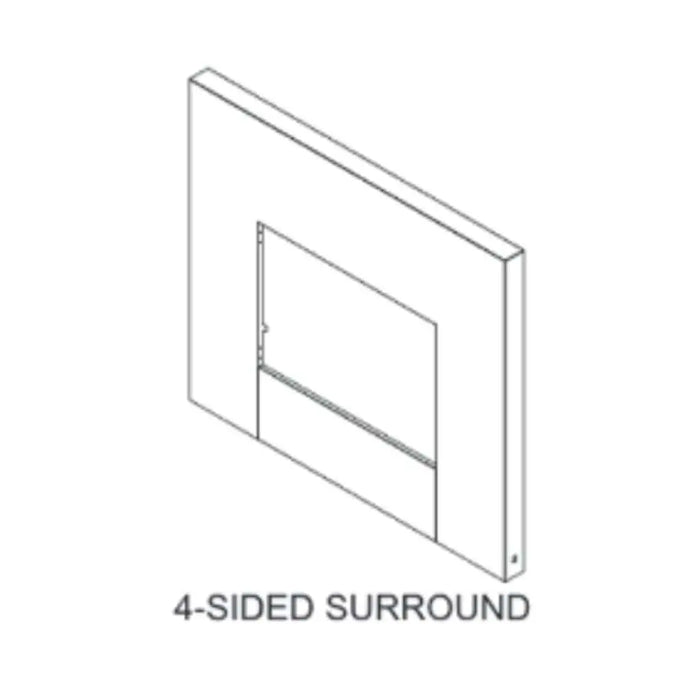

4-SidedCustom Surround
Color: Matte Black
Custom Built Surround for Various Empire Fireplaces and Fireplace Inserts
Click to see Decorative Media Crushed Glass
Black Polished Crushed Glass
Approx. 1 sq. ft.
Covers burner ports and provides a unique appearance
Install only to manufacturer specifications
Reflective nature amplifies burner flames
Blue Clear Crushed Glass
Approx. 1 sq. ft.
Covers burner ports and provides a unique appearance
Install only to manufacturer specifications
Reflective nature amplifies burner flames
Clear Frost Crushed Glass
Approx. 1 sq. ft.
Covers burner ports and provides a unique appearance
Install only to manufacturer specifications
Reflective nature amplifies burner flame
Copper Reflective Crushed Glass
Approx. 1 sq. ft.
Covers burner ports and provides a unique appearance
Install only to manufacturer specifications
Reflective nature amplifies burner flames
Bronze Reflective Crushed Glass
Approx. 1 sq. ft.
Covers burner ports and provides a unique appearance
Install only to manufacturer specifications
Reflective nature amplifies burner flames
Click to see Stainless Steel Gas Line & Blower
Auto Variable-Speed Blower
Enhances fireplace heat distribution
Ultra-quiet design
Variable speed control with automatic operation
Flexible Stainless Steel Gas Line
Stainless steel flexible gas line
24" length
Ideal for the connection of a variety of gas appliances
Click to see Control Options (For Millivolt Only)
FRBC Battery Operated On or Off Remote Control
Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
Does not require running wire to the fireplace
Requires batteries for the receiver and for the handheld remote
Operates during power outages
FRBTC2 Battery Operated Thermostat Remote Control
Type: Remote Control
Millivolt Control Options Only
Turns heater adjusts Thermostat
Battery-operated remote control
FREC Electric On-Off Remote Control with Battery Transmitter
Millivolt Control Options Only
Remote control with Battery transmitter for Empire remote-ready appliances
Easy and convenient to use
The receiver must be plugged in.
FRBTPS Battery Operated Programmable Touch Screen Remote Control
Type: Remote Control
Millivolt Control Options Only
Programmable and easy to use
Battery-operated remote control
FWS1 Wall Switch On/Off
On-Off wall switch for Empire remote-ready appliances
Mounts conveniently on wall
TMV Wall Thermostat Reed Switch
Wall thermostat with reed switch for Empire remote-ready appliances
Mounts conveniently on wall
TRW Wall Thermostat Wireless Remote
Wall thermostat with wireless remote for Empire remote-ready appliances
Thermostat mounts conveniently on wall
WARRANTY
All vent-free parts carry a five-year limited warranty with a five-year limited labor warranty.
All remote controls carry a one-year limited warranty.
