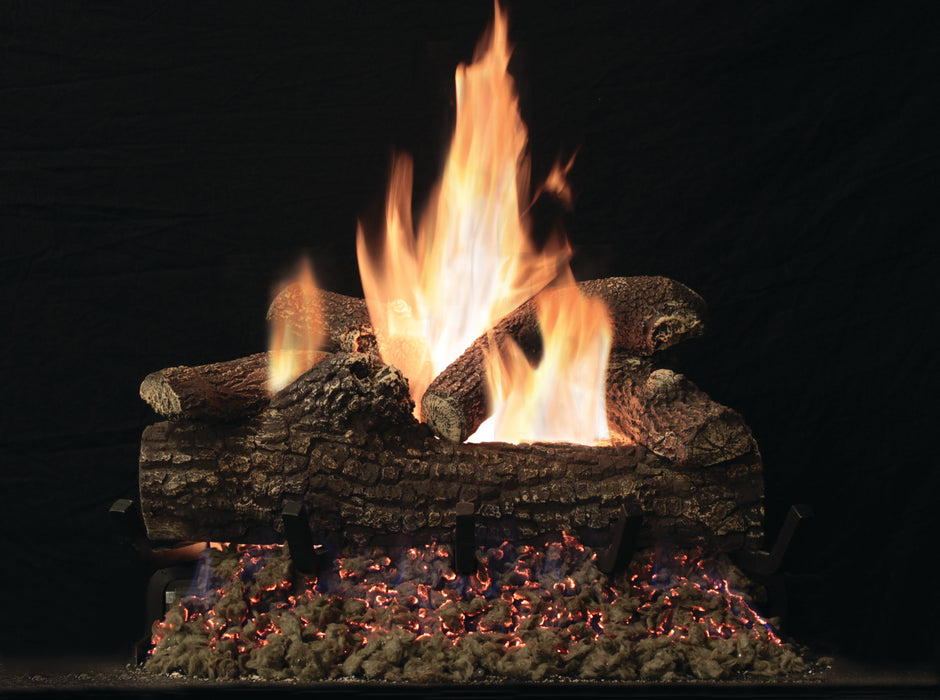

Empire 18" Great Lakes Oak Vented Gas Log Set
The Empire 18" Great Lakes Oak log set (model number LGLO18) is a 6-piece refractory gas log set for a vented, wood-burning fireplace. It goes on an Empire 18" vented sand pan burner (VSP single, VDP double or OVDP stainless double), which is ordered separately.
The rear log goes on first, then the front log on the front of the grate, flat painted sides facing down and to the rear; the remaining logs go on top as you like.
Key Features
- 18" vented log set, 6-piece
- Refractory logs
- For Empire 18" VSP, VDP and OVDP sand pan burners
- Logs only; burner ordered separately
- For wood-burning fireplaces with a working chimney
What to Order With It
This listing is the log set only. The sand pan burners come with the vermiculite, rockwool embers and lava rock.
Required – Burner (choose one 18" sand pan burner, ordered separately):
Specifications
| Model numbers |
LGLO18 |
| Size |
18" |
| Material |
Refractory |
| Pieces |
6 logs |
| Burner |
Empire 18" VSP, VDP or OVDP vented sand pan burner, ordered separately (per burner manual 45982) |
| Minimum fireplace (masonry) |
Set by the burner: 26" front width, 22" rear width, 14" deep, 24" high, with a chimney at least 10 ft tall |
| Type |
Vented decorative gas logs; not for vent-free use |
Installation Requirements
-
Where it can go: only in a solid-fuel-burning fireplace with a working flue built of non-combustible material, on a vented Empire burner. Do not burn wood or other solid fuel in the fireplace once a gas log set is installed.
-
Damper: a damper clamp must hold the chimney damper open so it cannot close while the logs burn (the sand pan burners include one). Massachusetts requires the damper to be welded open or removed.
-
Chimney: have the chimney and firebox cleaned of soot and creosote before installing the logs.
-
Glass doors and screen: keep glass doors open while the fire burns and keep a fireplace screen in place.
-
Installation: must be installed by a qualified installer per the burner and log set manuals and local codes. In Massachusetts the installation must be done by a licensed plumber or gas fitter.
Downloads
Warranty
The log set manual does not list warranty terms. Warranty claims go through the dealer where you bought the set.
