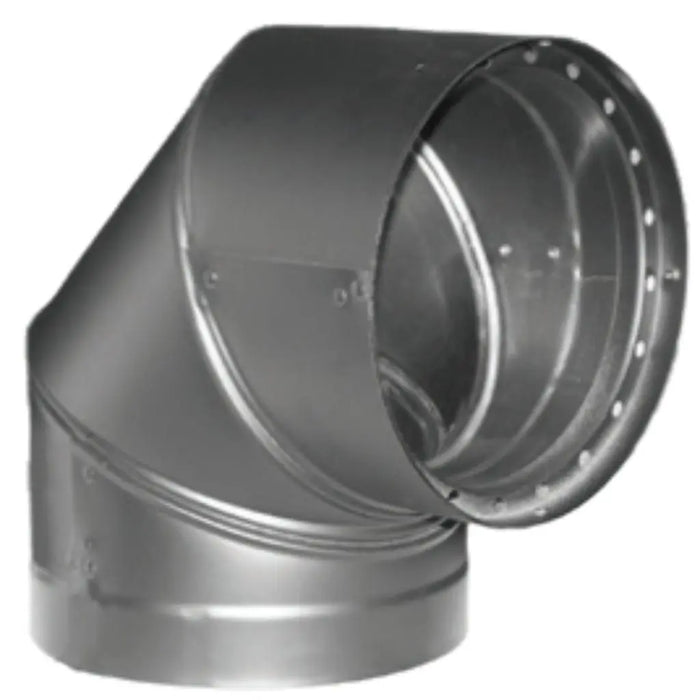

The DuraVent DVL-E90 DVL Double-Wall Black 90 Degree Elbow provides a premium product for use with the DVL chimney system. This elbow provides an essential component when routing around obstructions as needed. Elbow angles are adjustable to meet the needs of your installation, but 90-degree elbows are not recommended for rear exit appliances.

DVL offers a double-wall, air-insulated design to reduce clearances to combustibles from 18 inches to 6 inches--the closest clearance to a wall of any connector pipe. DVL improves stove performance by maintaining high flue gas temperatures for a strong, steady draft. The stainless steel inner walls of DVL pipe heat up faster and stay hot longer to minimize the formation of creosote and prolong the life of the chimney. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.

Features

• For Use With - Provides an essential component when routing around obstructions as needed
• Installation - Elbow angles are adjustable to meet the needs of your installation


Specifications

Downloads

• Download Product Catalog
• Download Installation Manual
