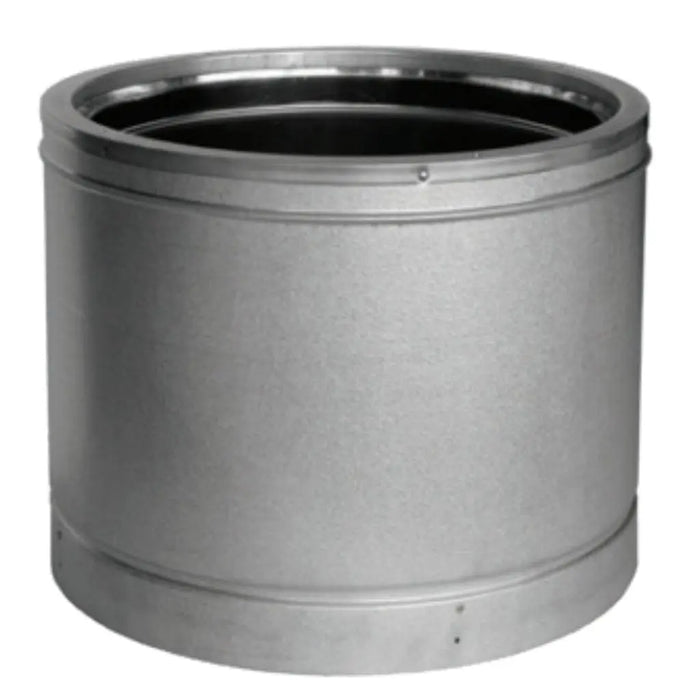

DuraVent DuraTech LDC 24" x 12" Double-Wall All-Fuel Chimney Pipe
The DuraVent DuraTech LDC 24" x 12" Double-Wall All-Fuel Chimney Pipe is engineered for superior venting performance in demanding residential and commercial heating applications. As part of the DuraTech LDC all-fuel chimney system, this double-wall chimney pipe is ideal for wood stoves, factory-built fireplaces, large masonry fireplaces, and other vented non-condensing appliances. Its insulated construction promotes excellent draft performance while providing a durable, long-lasting solution for high-temperature chimney installations.
Built with a solid-pack design featuring 1-inch ceramic insulation between a rugged stainless steel inner wall and a stainless steel or Galvalume outer wall, this chimney pipe delivers exceptional heat retention and safety. It maintains a 2-inch clearance to combustible materials while supporting efficient flue gas temperatures. Tested and certified to U.S. and Canadian standards, the DuraTech LDC chimney system offers dependable performance, durability, and peace of mind for professional all-fuel venting installations.
Features
-
DuraVent DuraTech LDC 24" x 12" Double-Wall All-Fuel Chimney Pipe: Premium all-fuel chimney pipe engineered for the DuraTech LDC chimney system, ideal for wood stoves, fireplaces, masonry fireplaces, and other high-temperature venting applications.
-
Durable Double-Wall Construction: Features a stainless steel inner wall with your choice of Galvalume (GA) or Stainless Steel (SS) outer wall for outstanding corrosion resistance, strength, and long-lasting performance.
-
Secure Screw-Fastened Installation: Designed to be fastened with screws, ensuring a stable, reliable, and code-compliant chimney connection.
-
Built-to-Order Large Diameter Pipe: 18"–24" diameter chimney pipes are custom built to order and are non-returnable, making them ideal for specialized venting projects.
-
Accurate Installed Length Calculation: For 10"–24" DuraTech chimney pipe, subtract 1 inch per joint overlap to determine the installed chimney length for precise system planning.
-
Maintains Safe Clearance to Combustibles: Requires a minimum 2-inch air space to combustible materials, supporting safe installation and optimal chimney system performance.
-
Professional-Grade Chimney Venting Solution: Designed for high-temperature all-fuel venting systems, delivering dependable draft performance, durability, and long-term reliability.
-
SEO Keywords Included: DuraVent DuraTech LDC chimney pipe, double-wall chimney pipe, insulated all-fuel chimney, stainless steel chimney pipe, UL-listed chimney system, wood stove vent pipe, masonry fireplace chimney.
Specification
| Specification |
Details |
| Model |
24DT-12, 24DT-12SS
|
| Series |
DuraTech LDC (10"-24") |
| Product Type |
Chimney Cap |
| Inner Finish |
430 Stainless Steel (.027") |
| Outer Finish |
Galvalume Steel (.029”), 430 Stainless Steel (.027") |
| (Size) Inside Diameter |
24" |
| Length |
12" |
| A |
24" |
| B |
26" |
Downloads
California PROP 65: This product can expose you to Lead & Chromium, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. See WARNING
