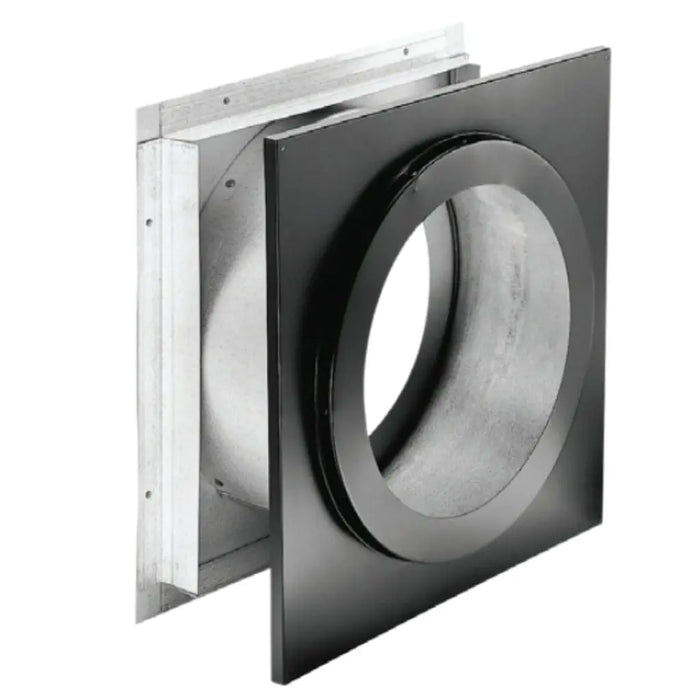

DuraVent DuraTech LDC 14" Wall Thimble
The DuraVent DuraTech LDC 14" Wall Thimble is a premium chimney venting system accessory designed to provide safe and code-compliant passage of DuraTech LDC double-wall chimney pipe through combustible wall assemblies. Ideal for factory-built fireplaces, large masonry fireplaces, and vented non-condensing appliances, this wall thimble ensures proper alignment, fire safety, and structural protection in residential and commercial chimney installations. It delivers a secure transition point while maintaining system integrity and reliable airflow performance.
Engineered for UL 103 Type HT listed chimney systems, this component supports 10"–16" diameters and features a solid-pack construction with 1" ceramic insulation between a stainless steel inner wall and stainless or Galvalume outer jacket. It maintains a 2-inch clearance to combustibles and is tested to US and Canadian standards, providing superior chimney safety, thermal protection, and long-lasting high-temperature performance.
Features
-
Essential Chimney Wall Penetration Component: The DuraVent DuraTech LDC 14" Wall Thimble 14" is designed to provide safe clearance to combustibles when installing a DuraTech LDC double-wall chimney system through exterior or interior walls.
-
Adjustable Wall Thickness Compatibility: Telescoping design adjusts from 4" minimum to 10" maximum wall thickness, fitting securely between standard wall studs for versatile chimney installation applications.
-
Extended Wall Installation Capability: For thicker walls, telescoping sections can extend up to 16" with a field-fabricated extension, ensuring flexible and customized chimney venting solutions.
-
Clean Interior Finish Design: Includes a black-painted interior trim plate for a clean, professional finish in visible chimney wall pass-through installations.
-
Required Horizontal Installation Use: Must be installed with DuraTech chimney pipe in a horizontal wall penetration configuration, ensuring proper airflow and UL-compliant chimney system performance.
-
Optimized for DuraTech LDC Systems: Specifically engineered for DuraTech LDC all-fuel double-wall chimney systems, ensuring safe, durable, and long-lasting performance
Specification
| Specification |
Details |
| Model |
14DT-WT |
| Series |
DuraTech LDC (10"-24") |
| Product Type |
Wall Thimble |
| (Size) Inside Diameter |
14” |

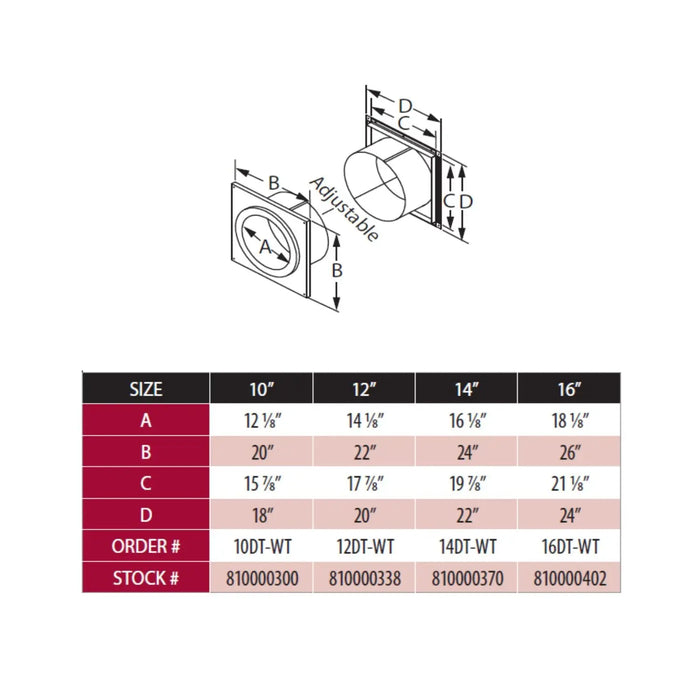

| A |
16 1/8” |
| B |
24” |
| C |
19 7/8” |
| D |
22” |
Downloads
California PROP 65: This product can expose you to Lead & Chromium, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. See WARNING
