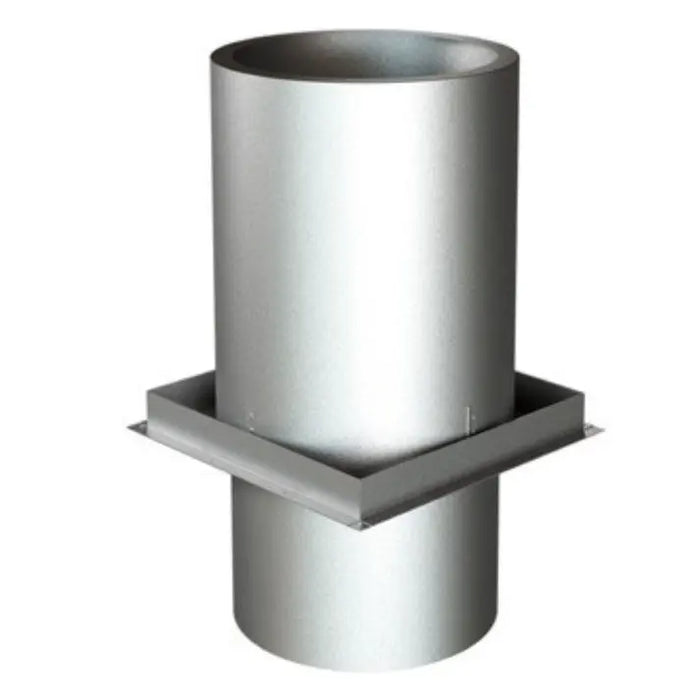

DuraVent DuraTech LDC 10" 0/12 - 6/12 Pitch Ventilated Flashing
The DuraVent DuraTech LDC 10" 0/12 - 6/12 Pitch Ventilated Flashing is a high-performance roof chimney flashing component designed for use with the DuraTech LDC all-fuel double-wall chimney system. Ideal for factory-built fireplaces, large masonry fireplaces, and vented non-condensing appliances, this flashing ensures a secure and weatherproof roof penetration for 10-inch chimney pipe installations. It provides essential protection for maintaining proper chimney venting system safety, roof sealing, and code compliance in residential and light commercial applications.
Engineered as part of a UL 103 Type HT listed chimney system, it supports diameters from 10" to 16" and features a solid-pack design with 1" ceramic insulation between a stainless steel inner wall and stainless or Galvalume outer jacket. It maintains a 2-inch clearance to combustibles and is tested to US and Canadian standards, ensuring superior chimney performance, thermal efficiency, and long-term durability in demanding high-temperature venting environments.
Features
-
Essential Roof Chimney Flashing Component: The DuraVent DuraTech LDC 10" Ventilated Flashing is designed to weatherproof the roof penetration of DuraTech LDC 10-inch chimney pipe systems, ensuring a secure and sealed installation.
-
Optimized for UL 103 Type HT Applications: Required for UL 103 Type HT chimney installations, making it a critical component for compliant high-temperature chimney venting systems.
-
Roof Pitch Compatibility: Specifically designed for 0/12 to 6/12 roof pitch applications, ensuring proper fit and performance based on roof slope requirements.
-
Prevents Roof Leaks and Moisture Intrusion: Provides a durable weather barrier that helps protect against rain, snow, and moisture around the chimney roof penetration area.
-
Storm Collar Required for Complete Seal: A storm collar is required to ensure a fully weather-tight chimney system installation.
-
High-Quality Galvalume Construction: Manufactured from durable galvalume material for long-lasting corrosion resistance and outdoor performance in chimney venting systems.
-
Precision Chimney System Fit: Engineered specifically for use with the DuraTech LDC all-fuel double-wall chimney system, ensuring reliable alignment and installation integrity.
Specification
| Specification |
Details |
| Model |
10DT-F6HT |
| Series |
DuraTech LDC (10"-24") |
| Product Type |
Ventilated Flashing |
| (Size) Inside Diameter |
10” |
| A |
10” |
| B |
10 1/4” |
| C |
29 1/2” |
| D |
31 1/2” |
| E |
13 1/4” |
