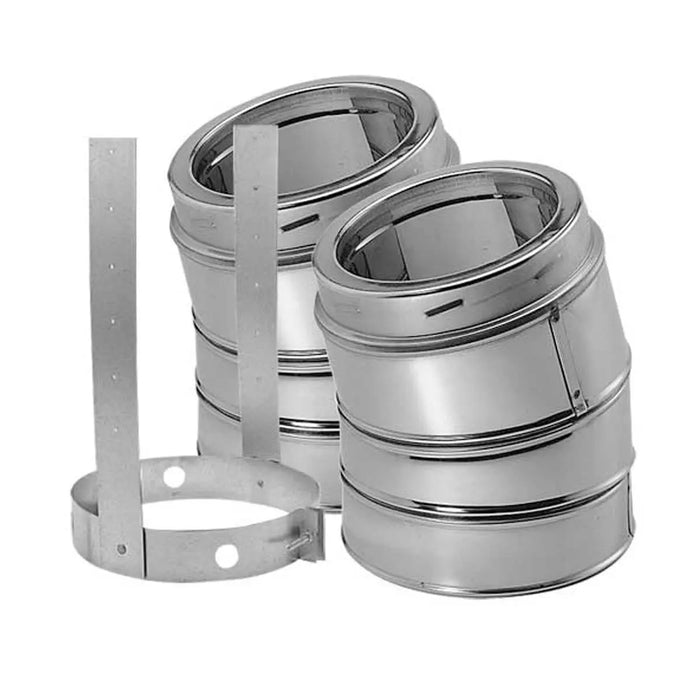

DuraVent DuraTech 5-Inch Diameter 15 Degree Stainless Steel Elbow Kit
The DuraVent DuraTech 5-Inch Diameter 15 Degree Stainless Steel Elbow Kit provides a high quality kit for your DuraTech chimney system. The elbow kit includes (2) elbows and (1) elbow strap. Use for offsets around obstructions such as rafters, ridgepoles, or joists. May have two pairs of elbows, if needed. Offsets greater than 30° are not permitted in accordance with UL 103 standards. Elbows swivel 360° at base (angles are not adjustable). A pair of elbows is required to return an offset chimney back to vertical. Available in stainless steel.
DuraTech is a double-wall chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood. DuraTech is designed for normal, continuous operation at 1,000 degree flue gas temps. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.
Features
- Pipe Class - Class A Chimney Pipe
- Designed For Use With - Wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built
- Certifications - UL 103 HT and ULC S604 (MH7399) listed
- Includes - Kit includes (2) elbows and (1) elbow strap
Product Details
- Part no. 5DT-E15KSS 15° Elbow Kit
- Part no. 5DT-E30KSS 30° Elbow Kit
- Elbow Kit includes: 2 Elbows and 1 Elbow Strap
Specifications
| Series |
DuraTech |
| Venting Size |
5-Inch |
| Venting Style |
Class A Chimney Pipe |
| Product Width |
5.0 in. |

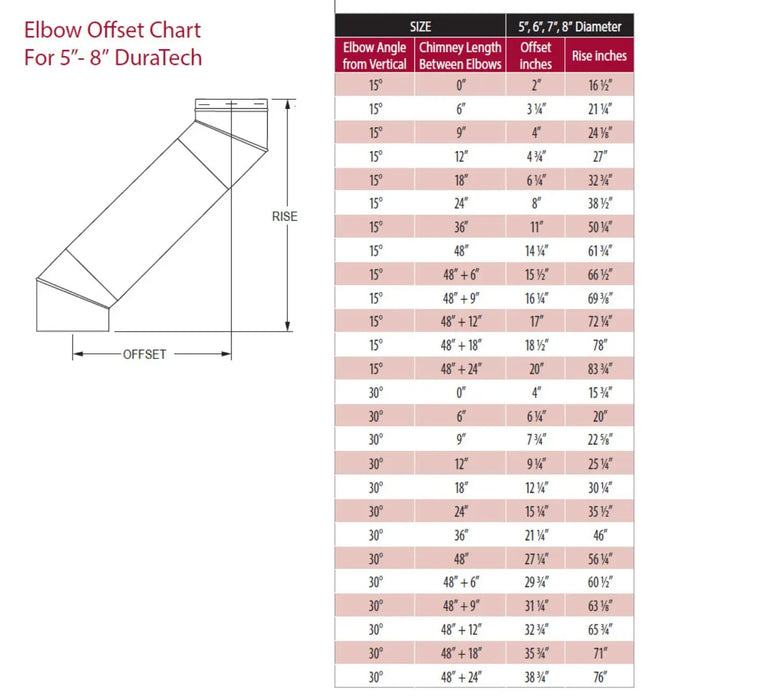

Dimension
Applications
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction
5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances
2” clearance to combustibles.
Shrouds
Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
