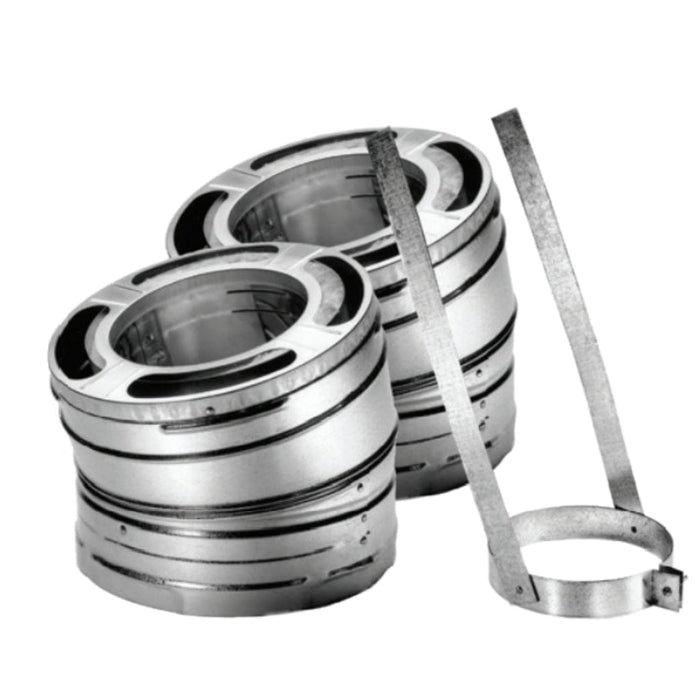

DuraVent DuraPlus 8" 15 Degree Stainless Steel Elbow Kit
The DuraVent DuraPlus 8" 15 Degree Stainless Steel Elbow Kit is a high-performance triple-wall chimney system accessory designed to create smooth directional changes in wood stove, fireplace, furnace, boiler, and all-fuel venting systems. Built with advanced ceramic blanket insulation and air space technology, it helps maintain a cooler outer surface while ensuring a strong, efficient draft for optimal heating performance. This chimney elbow kit reduces hot spots common in loose-fill insulation systems, enhancing chimney fire safety and protecting both the building structure and venting system.
Engineered for continuous operation at flue gas temperatures up to 1000°F, the DuraPlus 8" stainless steel elbow kit meets strict UL 103HT standards, including one hour at 1400°F and three 2100°F chimney fire tests. This durable all-fuel chimney component ensures reliable airflow direction changes, code compliance, and long-lasting system performance.
Features
-
Premium Triple-Wall Chimney Elbow Kit: The DuraVent DuraPlus 8" 15 Degree Stainless Steel Elbow Kit is designed for safe, efficient all-fuel chimney system offsets in wood stoves, fireplaces, furnaces, boilers, and venting applications.
-
Ideal for Chimney Obstructions: Perfect for routing around rafters, ridgepoles, joists, and structural obstacles, ensuring smooth and code-compliant chimney pipe installation.
-
Fixed 15° Elbow Design: Elbows swivel 360° at the base, but the angle is not adjustable, providing consistent and reliable chimney offset alignment.
-
UL Code-Compliant Offsets: Offsets greater than 30° are not permitted under UL 103 standards, ensuring safe and regulated chimney venting system installation.
-
Flexible System Configuration: May use two pairs of elbows when needed, with one pair required to return the chimney back to vertical alignment.
-
Durable Material Options: Available in stainless steel (KSS) or galvalume (K) outer wall construction for long-lasting performance and corrosion resistance in high-temperature chimney systems.
Specification
| Specification |
Details |
| Model |
8DP-E15, 8DP-E15KSS |
| Series |
DuraPlus (6"-8") |
| Product Type |
Elbow Kit |
| Inside Diameter |
8" |
| A |
4 1/4" |
| B |
4 1/4" |
Downloads
Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
