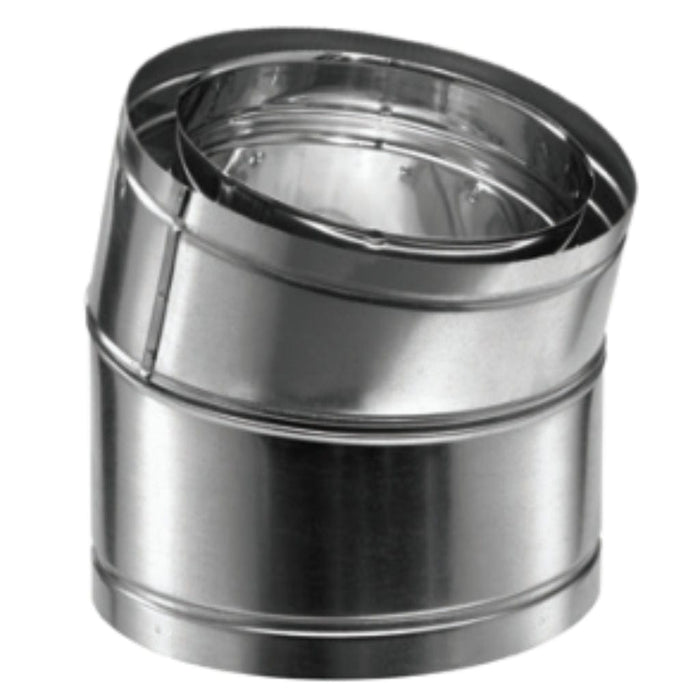

DuraVent DuraChimney II 16" Degree Elbow
The DuraVent DuraChimney II 16" Degree Elbow is a premium factory-built double-wall chimney system component designed to create safe and efficient chimney offsets in wood-burning fireplaces, stoves, and solid-fuel heating systems. As part of the trusted DuraChimney II UL 103 listed chimney system, this elbow allows installers to route the chimney around structural obstacles while maintaining proper venting performance. Its lightweight, unitized construction eliminates the need for field assembly, reducing installation time in residential and commercial chimney applications.
Engineered for durability and high-temperature performance, the DuraChimney II chimney elbow features a double-wall, air-cooled design that keeps the exterior cooler while maintaining a strong internal draft for efficient exhaust flow. The system accommodates radial and longitudinal thermal expansion under demanding operating conditions, ensuring long-term reliability. UL 103 listed, DuraChimney II is tested for continuous operation at 1000°F, one hour at 1400°F, and ten minutes at 1700°F, delivering dependable, code-compliant chimney safety and lasting venting performance.
Features
-
Premium Double-Wall Chimney Elbow: The DuraVent DuraChimney II 16" Degree Elbow features a .016" 430 stainless steel inner wall and a .021" galvanized steel outer wall for exceptional durability, corrosion resistance, and long-lasting chimney venting performance.
-
Designed for Chimney Offset Installations: Use this factory-built chimney elbow to safely offset around rafters, ridgepoles, joists, and other framing obstructions while maintaining proper chimney alignment.
-
Compatible with DuraChimney II Systems: Specifically engineered for the DuraChimney II double-wall chimney system, ensuring a secure fit and reliable performance in wood-burning fireplace and solid-fuel chimney installations.
-
Supports Multiple Elbow Configurations: 10"–16" DuraChimney II systems may use up to two pairs of elbows, when required, for complex chimney routing applications.
-
Code-Compliant Offset Design: Offsets greater than 30° are not permitted, helping maintain safe draft performance and compliance with installation standards.
-
Fixed-Angle Construction: The 16" chimney elbow is not adjustable, providing a strong, stable connection for dependable long-term operation.
Specifications
| Specification |
Details |
| Item Number |
16DCA-E15, 16DCA-E30 |
| Series |
DuraChimney II (8" - 16") |
| Product Type |
Elbow |
| Inside Wall |
Stainless Steel |
| Outside Wall |
Galvanized Steel |
| Diameter |
16" |
| A |
19" |
