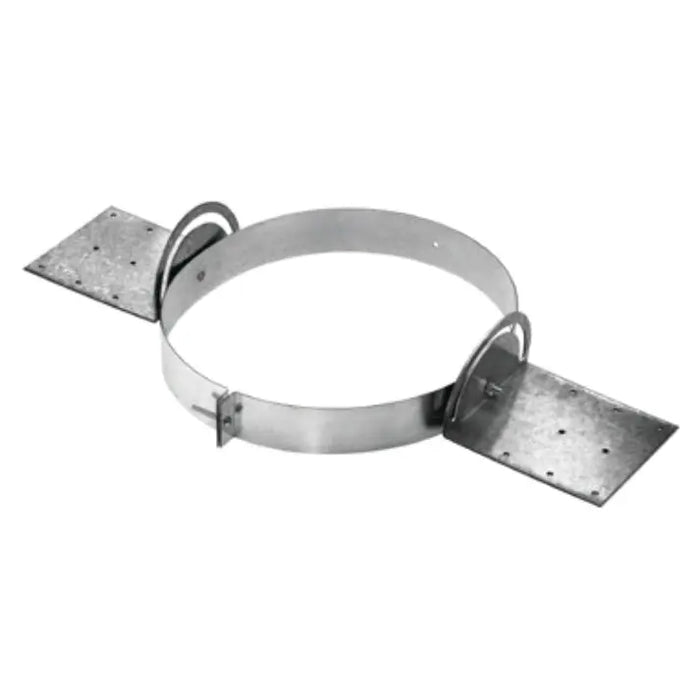

DuraVent DuraChimney II 12" Supplementary Support
The DuraVent DuraChimney II 12" Supplementary Support is a high-performance factory-built chimney system accessory designed to provide additional structural reinforcement for DuraChimney II double-wall chimney installations. Ideal for wood-burning fireplaces, stoves, and solid-fuel venting systems, this supplementary support is part of a lightweight, unitized system that eliminates field assembly of pipe sections, allowing for faster, more efficient chimney installation in residential and commercial applications. It enhances overall system stability where added support is required.
Engineered for safety and durability, the DuraChimney II supplementary support bracket works within a double-wall, air-cooled chimney system that keeps exterior surfaces cooler while maintaining strong internal draft efficiency. The system allows for radial and longitudinal thermal expansion under high heat conditions, ensuring long-term reliability and structural integrity. UL 103 listed, DuraChimney II is tested for continuous operation at 1000°F, one hour at 1400°F, and ten minutes at 1700°F, delivering dependable, code-compliant chimney system support and fire-safe performance.
Features
-
DuraVent DuraChimney II 12" Supplementary Support – Heavy-Duty Chimney Load Bearing Component: Designed for the DuraChimney II factory-built double-wall chimney system, ideal for wood-burning fireplaces, stoves, and solid-fuel venting installations.
-
Supports Chimney Weight for Enhanced Stability: Engineered to help support the weight of DuraChimney II chimney pipe, improving overall structural integrity and installation safety.
-
High-Capacity Chimney Support System: Rated to support a maximum of 25 feet of chimney height, ensuring reliable performance in extended vertical chimney runs.
-
Modular Support for Flexible Installation: Additional supplementary supports may be used as needed to meet system design requirements and ensure proper load distribution.
-
Essential Chimney System Safety Accessory: Helps maintain stability in UL-listed chimney system installations, reducing stress on pipe sections and connections.
-
Professional-Grade Chimney Support Hardware: Compatible with DuraChimney II double-wall chimney systems, commonly used in residential and commercial venting applications.
Specifications
| Specification |
Details |
| Item Number |
12DCA-SS |
| Series |
DuraChimney II (8" - 16") |
| Product Type |
Supplementary Support |
| Diameter |
12" |
| A |
15 3⁄8" |
