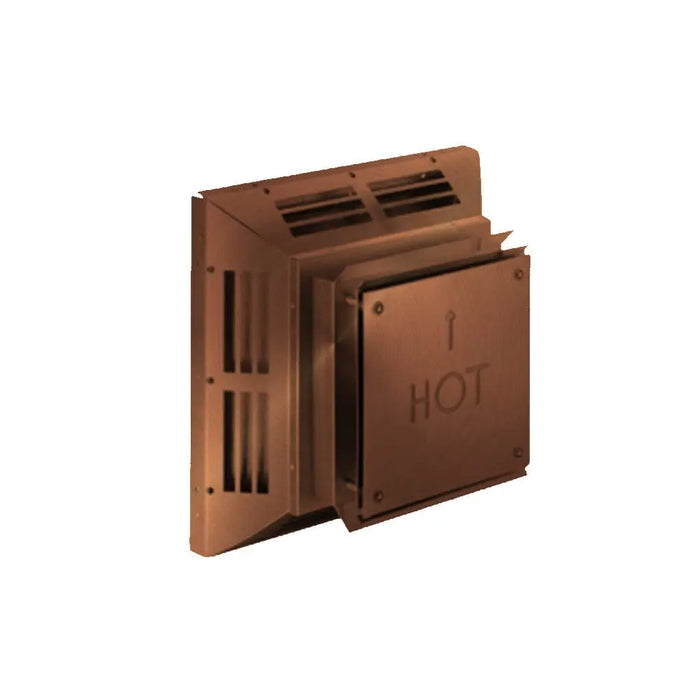

DuraVent DVA-HC-C DirectVent Pro Square Horizontal Termination Cap
The DuraVent DVA-HC-C DirectVent Pro Copper Square Horizontal Termination Cap provides a premium component for use in a DirectVent Pro system. This square horizontal termination cap is intended for use with standard and high-wind through-the-wall termination and is available in copper. Refer to installation instructions for restrictions and clearances.
DirectVent Pro features tight inner connections for superb performance with no gaskets or sealants required unless specified by the appliance manufacturer. Sleek black pipe lengths, extensions, and elbows feature laser-welded outer seams for a stylish premium finish. Low-profile locks with no hems or beads allow for a superior appearance designed to fit any interior space. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.
Features

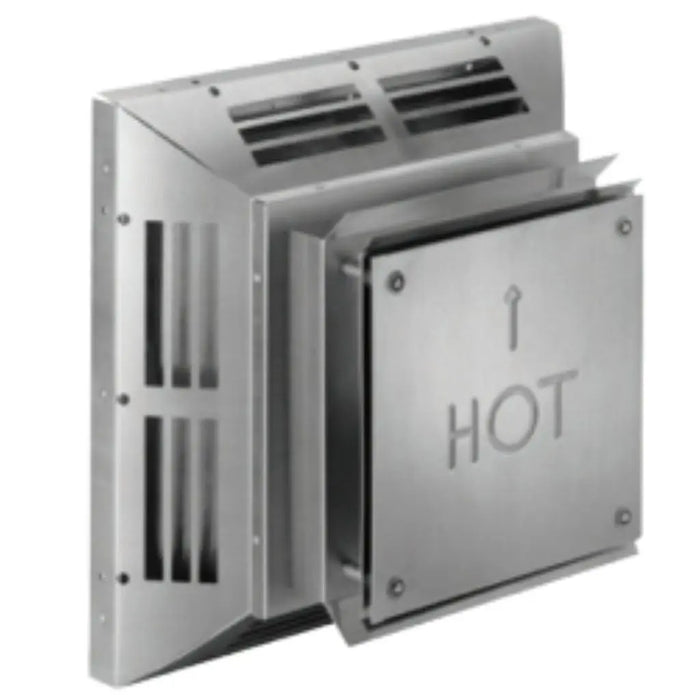

- Available in aluminum, stainless steel (S), and copper (C).
- Use for standard and high-wind through-the-wall termination.
- Check installation instructions for restrictions on horizontal cap terminations, such as minimum distance from windows and doors.
Specifications
| Model |
Finish |
Dimension |
| 46DVA-HC |
Aluminum |
13.5" (A) x 6.875" (B) x 12.5" (C) x 6.625" (D) |
| 46DVA-HC-S |
Stainless Steel |
13.5" (A) x 6.875" (B) x 12.5" (C) x 6.625" (D) |
| 46DVA-HC-C |
Copper |
13.5" ((A) x 6.875" (B) x 12.5" (C) x 6.625" (D) |
| 58DVA-HC |
Aluminum |
16" (A) x 6.875" (B) x 12.5" (C) x 8.125" (D) |
| 58DVA-HC-S |
Stainless Steel |
16" (A) x 6.875" (B) x 12.5" (C) x 8.125" (D) |
| 58DVA-HC-C |
Copper |
16" (A) x 6.875" (B) x 12.5" (C) x 8.125" (D) |
| Applications |
Direct vent gas, propane stoves, heaters, and fireplaces |
| Clearances |
Specified by the appliance manufacturer |
| Listings |
UL, CSA, or Warnock Hersey |
| Warranty |
Limited-lifetime warranty |
Typical Installation
-Refer to our Typical Venting Installation drawings to select the appropriate component parts for your installation. For more Typical Installations kindly check our download links below.
Planning Your Installation:
- For vertical gas stove installations, measure the height from the stove outlet to the ceiling to determine the length of black pipe required. Select a ceiling support/wall thimble cover or a cathedral ceiling support box.
- To determine the length of galvanized pipe required, measure the ceiling thickness and the vertical rise in an attic or second story. Firestops are required at each floor level beyond the first-floor ceiling support/wall thimble cover or cathedral ceiling support box. If an offset is required to avoid obstructions, use a pair of 45° elbows. For proper support, use elbow straps with offsets. Use wall straps for long vertical runs. An attic Insulation Shield is required in the attic.
- Measure the roof pitch. Select the proper flashing and storm collar. Determine the minimum height above the roof.
- For horizontal installations, check the appliance manufacturer’s instructions for the minimum rise and maximum horizontal run. A snorkel termination may be used if height restrictions prevent adequate rise above the appliance. Select the appropriate Horizontal Termination Cap (see appliance manufacturer installation instructions). To protect vinyl siding, select vinyl siding standoff. Check appliance manufacturer’s instructions for wall thimble and firestop requirements.
Design Recommendations
-
The following design recommendations are general guidelines to assist in the design and selection of venting components for your installation. Always follow DuraVent Installation instructions enclosed with the cap or support box before installing your chimney system. Installation instructions can be viewed online at www.duravent.com, under Catalogs and Instructions. Important: Check the manufacturer’s rating plate and instruction manual to confirm that the DuraVent direct vent system is approved for use on the brand-name appliance you have selected.
-
Check the appliance manufacturer’s installation instructions to confirm which types of vent configurations are permitted (i.e. horizontal, vertical, chimney reline, etc.). Also, check for any venting restrictions such as maximum horizontal run, minimum and maximum vertical rise, maximum offset, etc.
-
Be fire safe! Maintain at least the minimum clearances (air-space) between the vent pipe and nearby combustibles, as specified in the appliance manufacturer’s installation instructions. Use proper support and bracing. Follow local building codes and have your venting system inspected.
