DuraVent 6" DVL Close Clearance Connector Kit

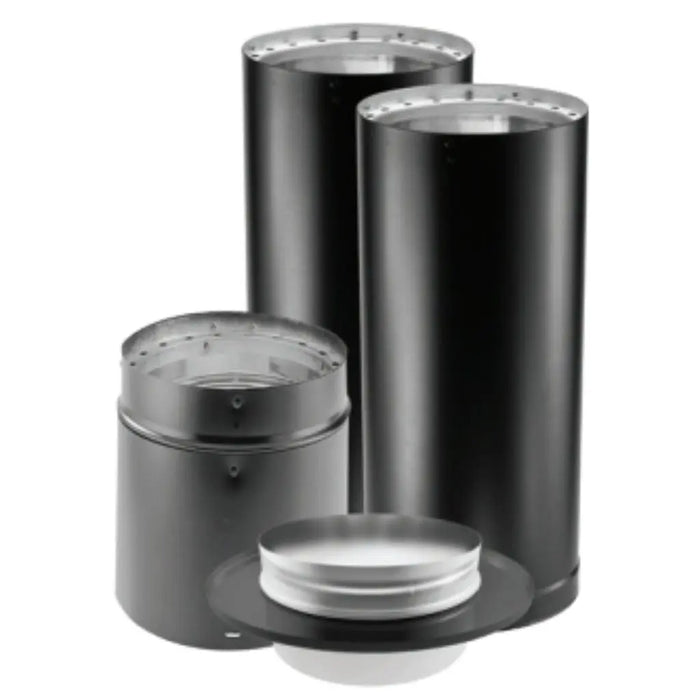

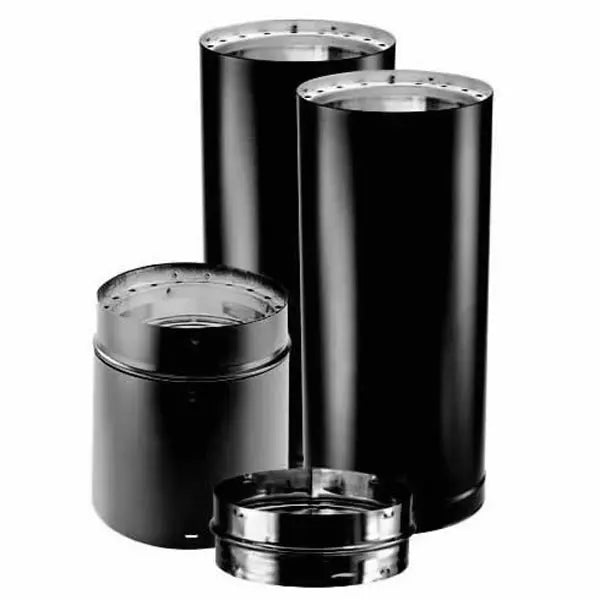

The DuraVent DVL Close Clearance Connector Kit provides a premium product for use with the DVL chimney system. This close clearance kit includes a DVL adapter, two 24-inch DVL double-wall black pipes, and a 12-inch DVL double-wall adjustable black pipe. This kit allows for a connection between an appliance and chimney for a typical 8-foot through-the-ceiling installation.
DVL offers a double-wall, air-insulated design to reduce clearances to combustibles from 18 inches to 6 inches--the closest clearance to a wall of any connector pipe. DVL improves stove performance by maintaining high flue gas temperatures for a strong, steady draft. The stainless steel inner walls of DVL pipe heat up faster and stay hot longer to minimize the formation of creosote and prolong the life of the chimney. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.
Features
- For Use With - Connects between appliance and chimney for a typical 8-foot through-the-ceiling installation
- Kit Includes - DVL Adapter, (2) 24-inch DVL Double-Wall Black Pipe, 12-inch DVL double-wall Adjustable Black Pipe
Includes
 |
DVL Adapter
Use to connect from double-wall DVL and/or single-wall DuraBlack to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation.
|
|
|
(2) 24" DVL Double-Wall Black Pipe
Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling).
|
 |
12" DVL Double-Wall Adjustable Black Pipe
Use to add length to DVL pipe. 12” pipe adds 2”-11” of length when used with rigid sections of pipe.
|
Specifications
| Model |
Size |
| 6DVL-KVP |
6" |
| Application |
Double-wall interior stovepipe for connecting woodstoves to manufactured chimney |
| Listings |
c-UL-us listed to ULC S641 (MH14089) |
| Warranty |
Limited-lifetime warranty |
