DuraVent 5DT-CS DuraTech Square Ceilinges, 5-Inch Diameter

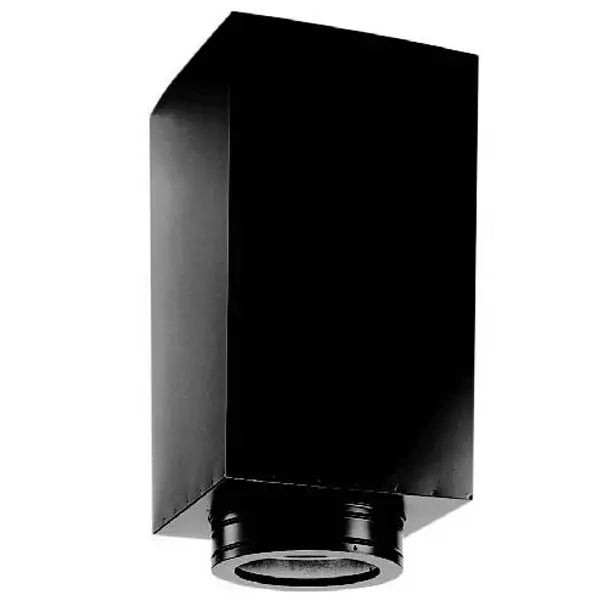

The DuraVent 5DT-CS DuraTech Square Ceilinges, 5-Inch Diameter provides a high quality blackes for your DuraTech chimney system. A 2-inch wide trim collar is included. This supports chimney pipe and provides a positive connection between thees and chimney with a built-in twist-lock. This square ceilinges is suitable for both flat and cathedral (A-Frame) ceiling applications, as well as short attic spaces. It fits between standard 16-inch on center joists and most manufactured home applications. The square ceilinges supports up to 60 feet of DuraTech Chimney. An adapter is needed to attach DVL or DuraBlack to thees.
DuraTech is a double-wall chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood. DuraTech is designed for normal, continuous operation at 1,000 degree flue gas temps. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.
Features
- Pipe Class - Class A Chimney Pipe
- Designed For Use With - Wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built
- Certifications - UL 103 HT and ULC S604 (MH7399) listed
- Includes - Support Box and 2-Inch wide trim collar

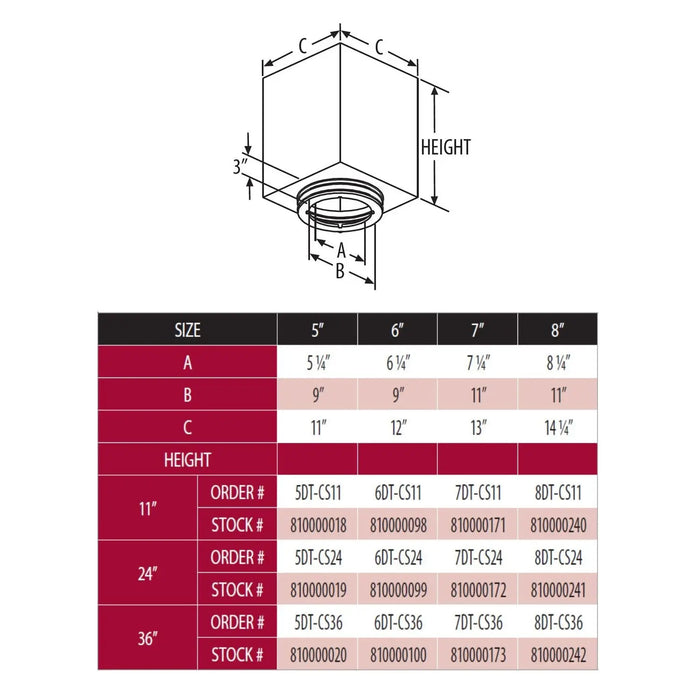

Specifications
| Series |
DuraTech |
| Venting Size |
5-Inch |
| Venting Style |
Class A Chimney Pipe |
| Product Depth |
11.0 in. |
| Product Height |
36.0 in. |
| Product Width |
5.0 in. |
Applications
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
