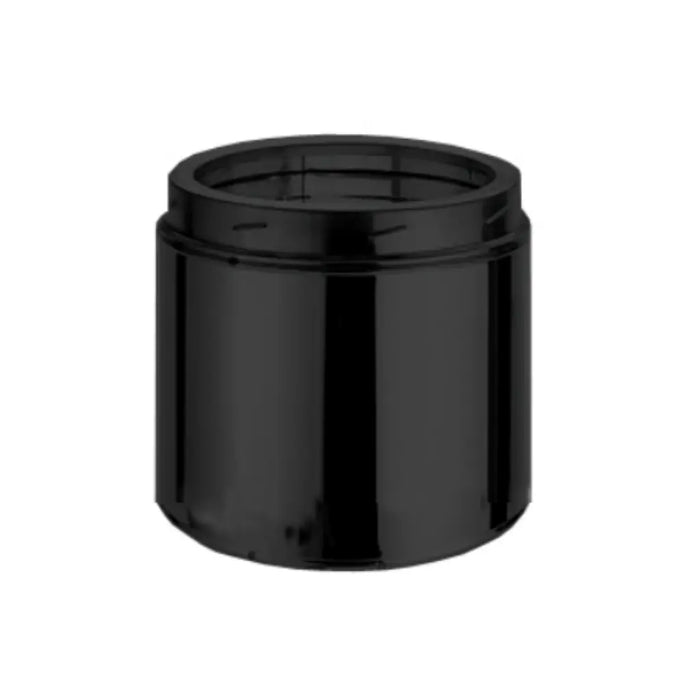

DuraVent 5DT-09B DuraTech 5-Inch Diameter Chimney Pipe, 9-Inches
The DuraVent 5DT-09B DuraTech 5-Inch Diameter Chimney Pipe, 9-Inches provides a double-wall, all-fuel chimney pipe that is designed for appliances that are tested and listed for use with a 2,100°F HT chimney system. These include wood stoves, fireplaces, or other appliances fueled by wood, oil, coal, or gas. The chimney pipe features stainless steel inner wall with twist lock connections, creating a light weight design. This 5-inch DuraVent pipe unit is available with a stainless steel outer casing option only.
To calculate the installed length of 5-8 inch DuraTech Chimney, you must subtract 1.25 inches from each joint overlap of chimney pipe. A minimum of 2-inch clearance to combustibles is required. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.
Features
- Pipe Class - Class A Chimney Pipe
- High Quality Construction - Made from 430 stainless steel
- Designed For Use With - Wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built
- Clearances - A minimum of 2-Inch clearance to combustibles is required
- Certifications - UL 103 HT and ULC S604 (MH7399) listed
Specifications
| Model |
DuraTech 5" |
| Part no. |
5DT-09B |

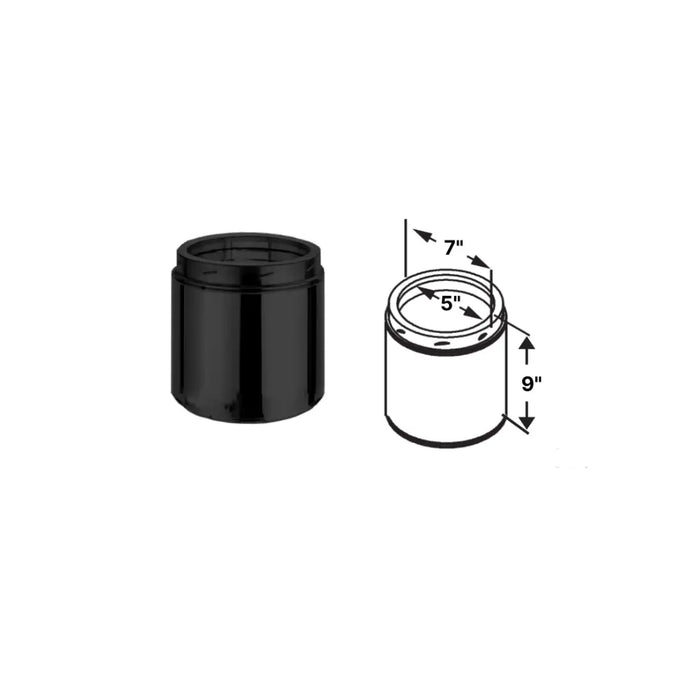

| Inner Diameter, A |
5 inch |
| Outer Diameter, B |
7 inch |
| Pipe Length |
9 inch |
Inner Wall Material
|
0.020” 430 Stainless Steel |
| Finish Material |
Black
|
Chimney Pipe Dimension
To calculate installed length of 5”, 6”, 7”, or 8” DuraTech Chimney, subtract 1 1⁄4” from each joint overlap of chimney pipe. Allow a minimum of 2” air space to
combustibles when installing DuraTech Chimney.
Applications
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction
5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances
2” clearance to combustibles.
Shrouds
Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Typical Chimney Installation
Refer to our Typical Installation to select the appropriate component parts for your installation.
- DVL/DuraBlack Chimney Adapter must be used when connecting DVL pipe to a Ceiling Support Box or Finishing Collar. When connecting the DuraBlack pipe, a DVL/DuraBlack Chimney Adapter, DuraBlack Slip Connector, or Snap-Lock Adapter must be used.
- Wall Thimble must be installed with an appropriate length of chimney pipe for all horizontal through-the-wall installations. To accommodate thicker walls, the telescoping pieces of the Wall Thimble can be separated, and a field-fabricated extension may be installed.
- Attic Insulation Shield must be used in all installations that pass through an attic, regardless of whether the attic is insulated or not.
- Firestop Radiation Shield must be used when a chimney passes through a floor or ceiling without a support box.
