Dimplex Revillusion 36" Portrait Built-In Electric Firebox, Herringbone
The Dimplex Revillusion 36" Portrait Built-In Electric Firebox, Herringbone (model REV36P-HB, Dimplex order number 500005736) is the vertical member of the Revillusion range. Same 36" width as the landscape model but four and a half inches taller in the framed opening, which gives the flame a full-height column rather than a wide band. The herringbone backer adds a laid-brick architectural detail behind the fire.
The Revillusion accepts three supply voltages — 120 V, 208 V or 240 V — so the same firebox can be specified for a house or a commercial fit-out and its heat output sized to the room.
Key Features
Portrait Format — a tall vertical firebox that suits a narrow chimney breast or a feature wall where a linear unit would look squat.
Revillusion® Patented Flame Technology — flames appear to rise from the logs rather than from behind them, which is what separates this from a conventional electric firebox.
Handcrafted Realogs® with LED Illumination — logs cast from real wood, with integrated LEDs producing a warm pulsating glow.
Enhanced Ember Bed — tumbled glass and black gravel lit from within for depth and movement.
Herringbone Interior — a laid-brick herringbone backer that adds an architectural detail behind the fire.
Three Supply Voltages — 120 V, 208 V or 240 V, from 4,436 to 8,786 BTU/h.
Flame-Only Operation — run the flame effect at just 40 W with the heater off, for ambiance year-round.
Will It Fit? Rough Opening
Frame to these dimensions. Dimplex is specific that the finished surround must be cut to the framing width and height precisely:
Framing width
36 5/8" (930 mm)
Framing height
30 5/8" (778 mm)
Framing depth
12 1/2" (318 mm)

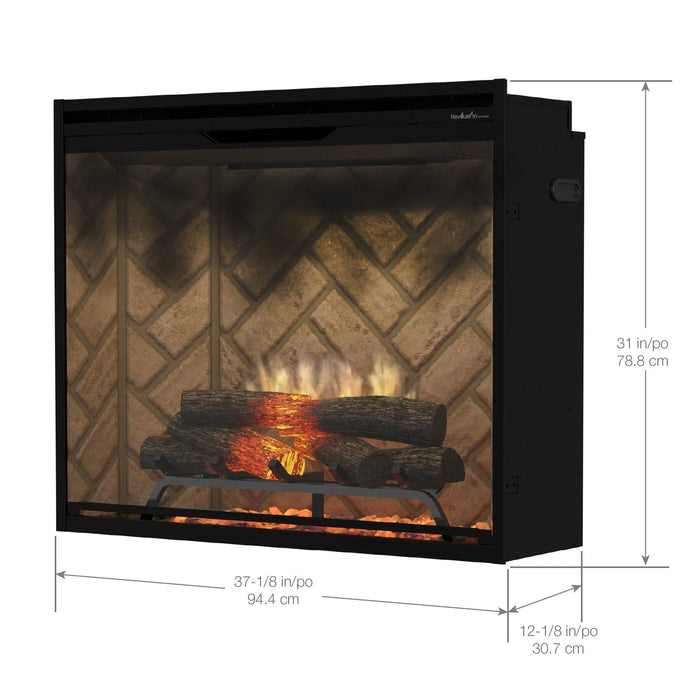

Appliance dimensions (W x H x D)
37 1/8" x 31" x 12 1/8" (94.4 x 78.8 x 30.7 cm)
Weight
79.6 lb (36.2 kg) — 102.3 lb (46.5 kg) packaged
The front of the firebox must not be recessed behind the finished wall. Setting it back blocks the airflow out of the heater. The flange sits proud of the framed opening by design.
Electrical Requirements
This is the decision to make with your electrician before the wall closes. The firebox is the same in all three cases; only the supply and the heat output change.
Supply
Output
Current draw
120 V 60 Hz (3-wire)
1,300 W — 4,436 BTU/h
10.8 A
208 V 60 Hz (4-wire)
1,975 W — 6,739 BTU/h
9.5 A
240 V 60 Hz (4-wire)
2,575 W — 8,786 BTU/h
10.7 A
Flame effect only, heater off
40 W
Circuit
Dedicated, properly fused 15 A circuit, rated for the voltage used
Connection
Hardwired, or the supplied 72" power cord kit
Going to 240 V nearly doubles the heat for the same firebox — worth knowing if this is meant to be a real heat source rather than an effect.
Clearances
Insulation and vapour barrier, minimum distance from the firebox
2" (5.1 cm)
Combustible materials in front (furniture, bedding, curtains, papers)
3 ft (0.9 m) minimum
The firebox must never be in direct contact with building insulation or a vapour barrier — that is the clearance that matters most on this model, and it is easy to miss when a framer is insulating around a firebox in an exterior wall.
This is an indoor appliance. Dimplex's guide states it is not to be used outdoors. In a bathroom it must be on a GFCI-protected circuit and sited where it cannot fall into a tub or basin.
Specifications
Model
REV36P-HB
Dimplex order number
500005736
Series
Dimplex Revillusion®
Size and format
36", portrait
Backer finish
Herringbone
Fuel
Electric — no venting, gas line or chimney required
2 YEAR LIMITED WARRANTY. Dimplex warrants this product free from defects in material and workmanship for 2 years from the date of first purchase. In-home warranty service is included for the first year; the second year is a replacement-of-parts warranty without in-home service. Proof of purchase is required.
